DLC401E floor scale load cell
|
Model: DLC401E Category: Compression Load Cell Range: 20t,25t,30t,40t,50t,60t,70t,100t,150t,200t,300t,400t Dimension: 76*82.6/125*142/223*250mm Material: Alloy steel,stainless steel Application: truck scale,floor scale,warehouse scale, compression measurement Characteristic: 400t weight sensor, 400t compression weight sensor | |||||||||||||
|

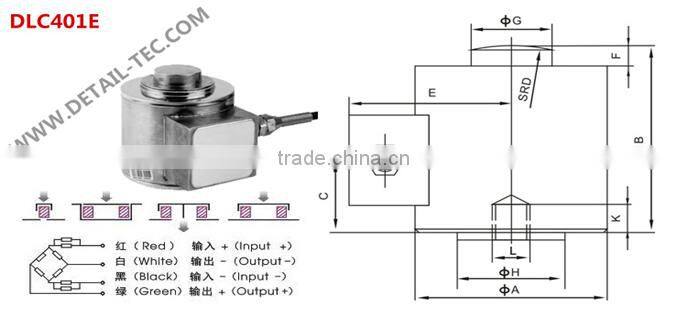

REF PIC | |||||||||||||
other dimension | |||||||||||||
LOAD T |
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
LOAD T |
||
20 |
76 |
82.6 |
48 |
150 |
56 |
9 |
31.8 |
48 |
10 |
M12 |
20 |
||
25 |
100 |
117 |
65 |
150 |
76 |
12 |
38 |
38 |
14 |
M20 |
25 |
||
30 |
100 |
117 |
65 |
150 |
76 |
12 |
38 |
38 |
14 |
M20 |
30 |
||
40 |
100 |
117 |
65 |
150 |
76 |
12 |
38 |
38 |
14 |
M20 |
40 |
||
50/60 |
107 |
127 |
66 |
200 |
81 |
12.7 |
58 |
64 |
14 |
M20 |
50/60 |
||
70 |
125 |
142 |
91 |
250 |
86.5 |
13 |
58 |
64 |
14 |
M20 |
70 |
||
100 |
165 |
184 |
104 |
300 |
111.8 |
20 |
70 |
70 |
20 |
M20 |
100 |
||
150 |
165 |
184 |
104 |
300 |
111.8 |
20 |
70 |
78 |
20 |
M20 |
150 |
||
200 |
223 |
250 |
152 |
500 |
137.5 |
20 |
100 |
112 |
36 |
M24 |
200 |
||
300/400 |
223 |
250 |
152 |
500 |
137.5 |
20 |
108 |
112 |
36 |
M24 |
300/400 |
||
Specification | |||||||||||||
comprehensive error: |
0.02%FS |
output resistance: |
352±5Ω |
||||||||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||||
Non-linearity: |
0.02%FS |
Excitation voltage: |
9~15VDC |
||||||||||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40℃ |
||||||||||
Repeatability: |
0.01%FS |
use temperature: |
-40~+80℃ |
||||||||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.03%FS/10℃ |
||||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10℃ |
||||||||||
Input resistance: |
400±5Ω |
defend grade: |
IP68 |
||||||||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 7-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

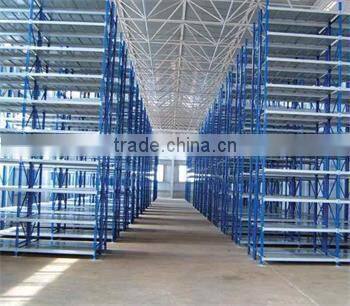

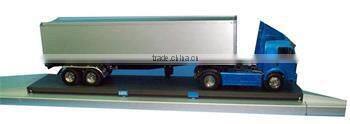

APPLICATION:
Welcome to the workshop
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
