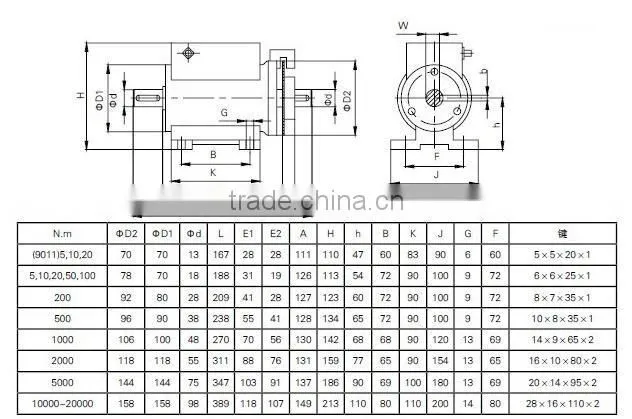

0-20000Nm Non contact rotary torque sensor,transducer DWTQ-66
Descriptions :
1: Non-contact rotary torque sensor
2: Measuring range5Nm 10Nm 50Nm 100Nm 500Nm 1000Nm 5000Nm 10000Nm 20000Nm
3:No wear parts such as collector ring. Be suitable for long-time, high speed running.
Features:
1:Measuring range5Nm 10Nm 50Nm 100Nm 500Nm 1000Nm 5000Nm 10000Nm 20000Nm
2:No wear parts such as collector ring. The series of rotary torque transducer works in long time and can be used widely in measuring the torque of motor, generator, deceleration machine, diesel engine.
3:Mounting: Keyed shaft both ends.
4: Output the signals of positive rotation and reaction torque.
5:High accuracy, reliable performance.
Specifications
1:Capacity :0~0.5,1,2,5,10,20,50,100 Nm
2:Rated output :1.0~2.0 mV/V
3:Torgue indication error :±0.5%F.S
4:Operation Temperature Range : 0-85 degrees
5: Compensated temperature range :
6:Recommended Excitation: 12VCD
7:Frequency response :100μS
8:Insulation :2000 MΩ/100VDC
9:Input Impedance:700±10/350±10Ω
10: Output impedance:700±5/350±5Ω
11: Zero Output : 0~±1%F.S
12 : Safe Overload :120%F.S
13: Cable Color Code : Input: Red(+) Green(-); Output: Yellow(+) White(-)
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
