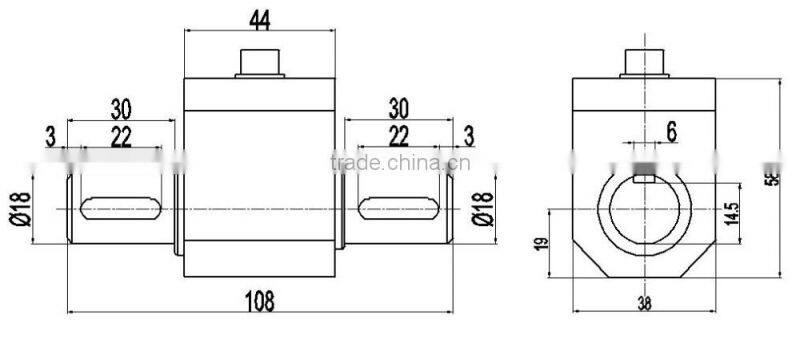

Dynamic torque sensor DWTQ-1050A
Dynamic torque sensor WTQ-1050A
Specifications :
1: For Dynamic torque measurement
2: Dynamic torque measurement : 10NM ~ 100NM
3: Application: torque wrench and torsion, measurement of shaft
4: High accuracy, reliable performance. strong anti-interference.
Features :
1:Measuring range :10~100N.M
2: Material: stainless steel
3:It can be continuous measurement of positive and negative torque.
4:Small volume, Light weight, Easy to install , Be installed at any position, any direction .
5:High accuracy, reliable performance.
6:Transmission has nothing to do with rotation, speed and veer.
7:output the signals of positive rotation and reaction torque.
8:Mounting: Keyed shaft both ends.
9:Max Rotate-speed: ≤4000rpm/minutes
Specifications:
1:Capacity :0~0.5,1,2,5,10,20,50,100 Nm
2:Rated output :1.0~2.0 mV/V
3:Accuracy :±0.1; ±0.3; ±0.5%F.S
4:Compensated temperature range : - 10 ~ 40 ºC
6:Temp Effect On Zero: ±0.1%F.S/10 ℃
7:Recommended Excitation: 12VCD
8:Frequency response :100μS
9:Insulation :2000 MΩ/100VDC
10:Input Impedance:700±10/350±10Ω
11:Output impedance:700±5/350±5Ω
12:Safe Overload :120%F.S
13:Ultimate Overload:150%F.S
Signal processing
1: It can also be equipped with the company's secondary instrument, Using the series of torque instrument to display the torque value.
2: The torque value can be transformed to 4—20m A or 0—5V ,0-10V analog signals by the circumscribed modules.
3: Sending the torque frequency signal to computer or PLC to processing directly.
Using tips:
1: In case of producing the bending moment,the bases of the torque transducer and the equipment should be fastened flexibly. Make sure they can swing.
2: In case of vibrating, Power and load equipment should be fastened reliably.
3: Make sure the right type of electrical connection.
4:Please promptly contact with us, if any using problems.
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to
customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
