Home > Lights & Lighting > LED Outdoor Lighting > LED Street Light > COB Led Street Light 30W Standardized Modular Professional Beam Angle Adjustable

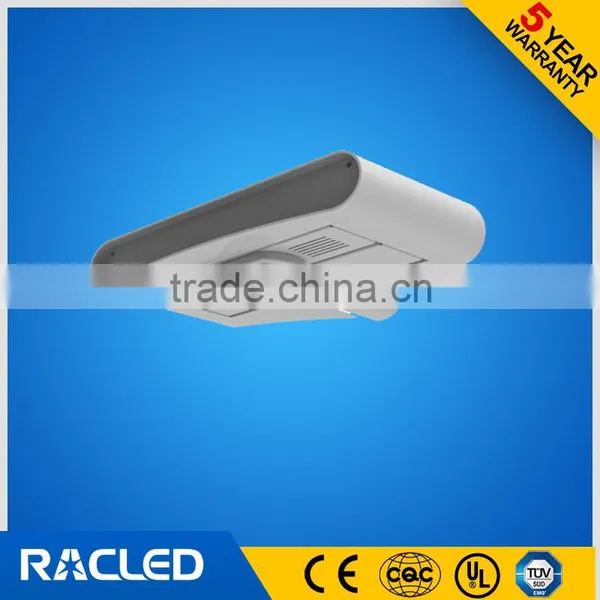

COB Led Street Light 30W Standardized Modular Professional Beam Angle Adjustable

Name: COB Led Street Light 30W Standardized Modular Professional Beam Angle Adjustable
Brand: RACLED
SKU: 106785231
Availability: InStock

COB Led Street Light 30W Standardized Modular Professional Beam Angle Adjustable thumbnail-1

COB Led Street Light 30W Standardized Modular Professional Beam Angle Adjustable photo-1

US$ 87.4 - 94.76 MOQ: 5 Pieces

Key Specifications

Get Latest Price

LED Light Source:

COB

Input Voltage(V):

100-240vac 100-240vdc or other inout on your request

Lamp Power(W):

Contact Supplier Request Quote Chat Now

Shaanxi Racled Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source COB

Input Voltage(V) 100-240vac 100-240vdc or other inout on your request

Lamp Power(W) 30

Lamp Luminous Flux(lm) 3000

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Cool White

Working Temperature(℃) -40, +50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CCC, CE, CQC, EMC, UL

Warranty(Year) 5

Place of Origin Shaanxi, China

Brand Name RACLED

Model Number RACBDZ30MHN70-02

Product Description

Advantages

²The street light adopts the RAC-CSA-1 standard module designed by the company independently, which

confirms to luminance and low-glare grading requirements of “CSA16” and “Shanghai LED street light Standard”.

²Have features of standard firmware, small size, low cost, easy to transportation, storage and maintenance;

²Adopt high-power COB illuminant; luminous efficiency can reach 110Lm/W.

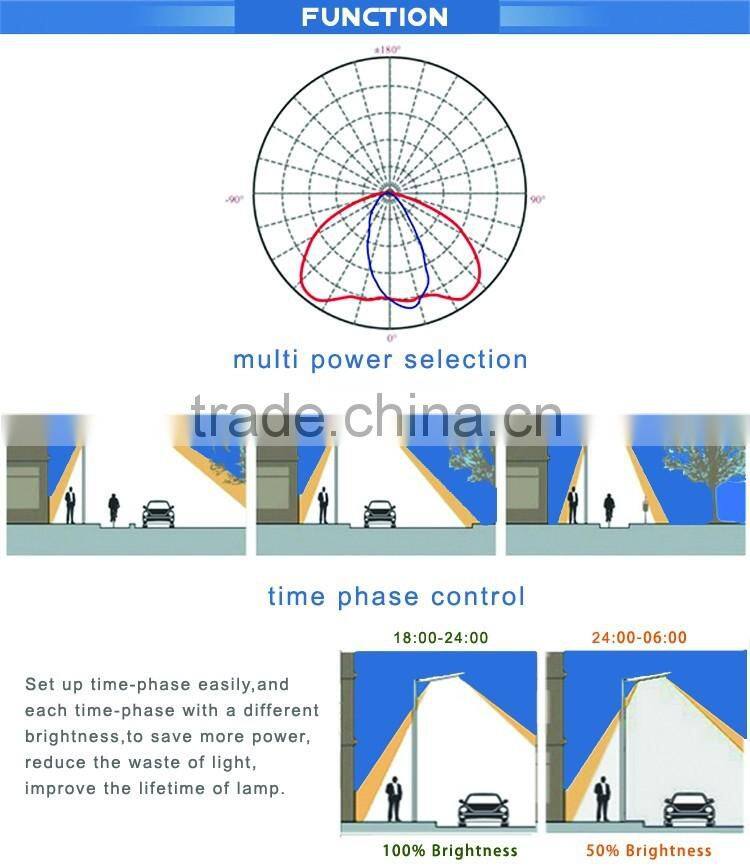

²Equal luminance grading design to eliminate zebra effect; low glare design; disable glare evaluation TI<10, unsuitable glare evaluation G>5;

²Modular jointing scheme, 30/40W standard module; the maximum power can reach 200W after modular jointing.

Technical parameters

Specification
Module	RACBDZ30MHN70-02
Module	1
Power:	30w
Replace HID Lamp:
Type Of Chip:	High Power LED Chip
Brand Of Chip:	Cree Osram LG
Lighting effect	>=100Lm/W
Light flux	>=3000lm
Install angle	0-90°
Power factor	>=0.95
Color rendering index	>70Ra
Light source voltage	DC36V
Light distribution type	Optical glass rectangular Equal brightness of light distribution
Source life	>50000H
Color Temperature:	5500 ~ 6500K
IP rating	Ra ≥ 70
Dimensions
Finishing Color:	White
SHAPE:	Rectangle
Weight:	4.7 Kg
Size:	376×360×140mm
Diameter of socket:	50-60mm
Package Size:
Work Environment
Input Voltage:	100-240vac 100-240vdc or other inout on your request
Operating Temperature:	-40℃—+50℃
Application
Application:	Mainly suitable for the lighting of urban traffic routes and resident community roads etc
Recommend mounting height:	6m-8m

Pictures

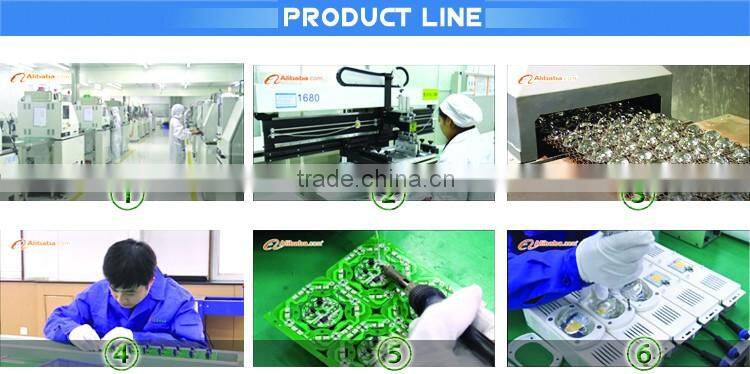

Production line

Packaging

FAQ

Q1.Are you a trading company or factory?

We are the factory based in the ancient city Xi’an China since 2015. We acquired and worked to IS9000 quality standard and we are the TUV audited manufacturer.

Q2.How much will the shipping cost of LED light?

We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.

Q3.How can I make orders for LED light?

Please see the following order info:

v Delivery term: FOB, EXW, CFR, CIF.

v Delivery terms: T/T, western union, L/C.

v Delivery time: 3-5 days for sample, 7-15 days for bulk order.

We accept mini order.

Q4.How do you ensure the quality of LED light?

We are strictly focus on quality control. All goods 100% inspected before shipping, we do at least 5 test, including Incoming raw material test, sample test then bulk produce, waterproof test, burn-in test, appearance inspection.

Q5.You have the ability to do independent reseach and development?

Our engineering department has 11 people, we have the research and development capabilities.We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches.

Q6.Can we add our logo on products?

YES.you can add your logo on products.

Q7. Can we customize product?

Yes, OEM&ODM is welcome.

Q8.How long can I get your reply?

We respond to every inquiry within 24 hours.

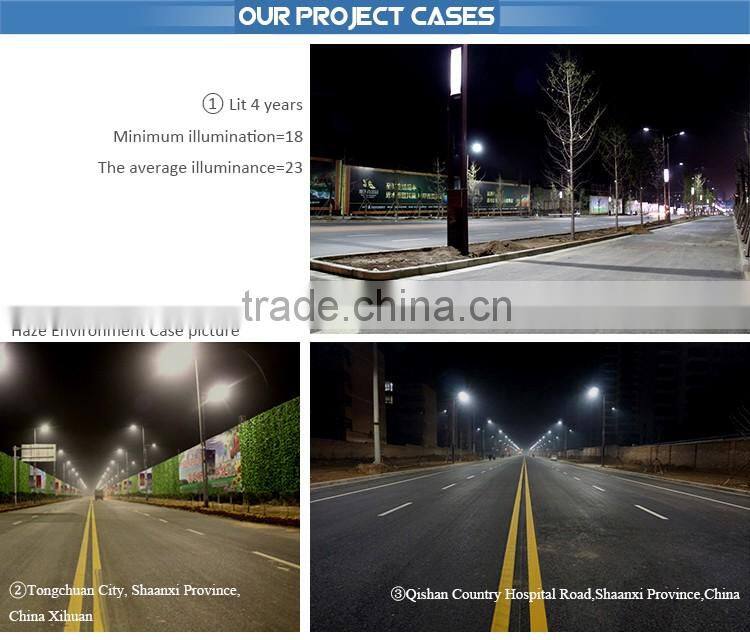

Projects
