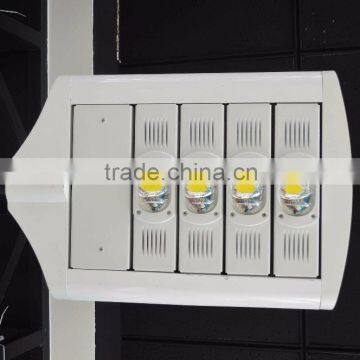

led street light 120W Standardized modular aluminum alloy lamp body material
- 3000 Piece / Pieces per Month
- Tianjin/Beijing
- T/T Credit Card
- LED glass lens module light source 50W module courtyard light M4G5 street light module EMC engineering project premium product
- LED glass lens module light source, 50W module street light, courtyard light, landscape light, magnolia light, M4G5 street light module
- LED glass lens module light source street light 50W module courtyard light M4G5 street light module landscape light Yulan light
- LED glass lens module light source Street light 25W module Courtyard light M4G5 Street light module Landscape light Magnolia light
- LED glass lens module light source projection light 50W-700W module high pole light M4G5 street light module M212 tunnel light
- 190Lm/WLED glass lens module light source Street light 25W module Courtyard light M4G3 Street light module EMC project M212
Product Details
LED Light Source: | COB | Input Voltage(V): | 100-240vac 100-240vdc or other inout on your request | Lamp Power(W): | 120 |
Lamp Luminous Flux(lm): | 12000 | Lamp Luminous Efficiency(lm/w): | 100 | Color Temperature(CCT): | Cool White |
Working Temperature(℃): | -40, +50 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | Aluminum |
IP Rating: | IP65 | Certification: | CCC, CE, CQC, EMC, UL | Warranty(Year): | 5 |
Place of Origin: | Shaanxi, China | Brand Name: | RACLED | Model Number: | RACBDZ120MHN70-02 |
Product Description
Advantages
²The street light adopts the RAC-CSA-1 standard module designed by the company independently, which
confirms to luminance and low-glare grading requirements of “CSA16” and “Shanghai LED street light Standard”.
²Have features of standard firmware, small size, low cost, easy to transportation, storage and maintenance;
² Adopt high-power COB illuminant; luminous efficiency can reach 110Lm/W.
² Equal luminance grading design to eliminate zebra effect; low glare design; disable glare evaluation TI<10, unsuitable glare evaluation G>5;
² Modular jointing scheme, 30/40W standard module; the maximum power can reach 200W after modular jointing.
Technical parameters
Specification | |
Module | RACBDZ120MHN70-02 |
Module | 3 |
Power: | 120w |
Replace HID Lamp: |
|
Type Of Chip: | High Power LED Chip |
Brand Of Chip: | Cree Osram LG |
Lighting effect | >=100Lm/W |
Light flux | >=12000lm |
Install angle | 0-90° |
Power factor | >=0.95 |
Color rendering index | >70Ra |
Light source voltage | DC36V |
Light distribution type | Optical glass rectangular Equal brightness of light distribution |
Source life | >50000H |
Color Temperature: | 5500 ~ 6500K |
IP rating | Ra ≥ 70 |
Dimensions | |
Finishing Color: | White |
SHAPE: | Rectangle |
Weight: | 6.1Kg |
Size: |
5860×360×140mm
|
Diameter of socket: | 50-60mm |
Package Size: |
|
Work Environment | |
Input Voltage: | 100-240vac 100-240vdc or other inout on your request |
Operating Temperature: | -40℃—+50℃ |
Application | |
Application: | Mainly suitable for the lighting of urban traffic routes and resident community roads etc. |
Recommend mounting height: | 6m-8m |
FAQ
Q1.Are you a trading company or factory?
We are the factory based in the ancient city Xi’an China since 2015. We acquired and worked to IS9000 quality standard and we are the TUV audited manufacturer.
Q2.How much will the shipping cost of LED light?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3.How can I make orders for LED light?
Please see the following order info:
v Delivery term: FOB, EXW, CFR, CIF.
v Delivery terms: T/T, western union, L/C.
v Delivery time: 3-5 days for sample, 7-15 days for bulk order.
We accept mini order.
Q4.How do you ensure the quality of LED light?
We are strictly focus on quality control. All goods 100% inspected before shipping, we do at least 5 test, including Incoming raw material test, sample test then bulk produce, waterproof test, burn-in test, appearance inspection.
Q5.You have the ability to do independent reseach and development?
Our engineering department has 11 people, we have the research and development capabilities.We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches.
Q6.Can we add our logo on products?
YES.you can add your logo on products.
Q7. Can we customize product?
Yes, OEM&ODM is welcome.
Q8.How long can I get your reply?
We respond to every inquiry within 24 hours.
