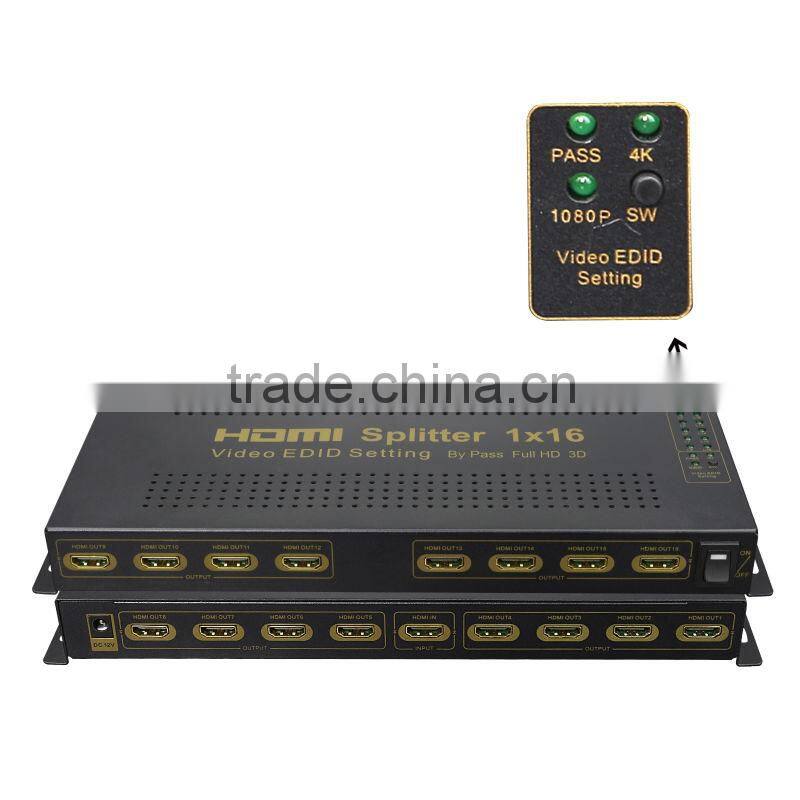

1x16 HDMI splitter with video EDID management
The 1x16 HDMI Splitter allows one HD source to be split easily to sixteen support HDMI signal inputs display .And the 1X16 splitter also supports video EDID setting, The user can do choose one video mode out from the three video modes that include 1080P/3D/Pass.
Specifications
2. Signaling rates 6.75Gbps
3. 1 HDMI in 16 HDMI out
4. Video EDID setting( 3D&1080P&pass)
1x16 HDMI splitter with video EDID management ( Pass / 1080P / 3D)
1: When choose "pass" key, then all the HDTVs with will show the resolution that all HDTV can support
2: When choose " 1080P" key, then the HDTVS which can support 1080P will show picture
3: When choose "3D" key, then the HDTVS which can support 3D will show picture
Features
lOne HDMI input signal split to sixteen HDMI sink devices
lSupport Video Out Resolution Set-up, it can set up as the 1080P or 3D video out, Plus it can set up as the Video Pass-through out, at this mode the splitter will output the video resolution as the output display can support.
lSupport 1080P 3D HDMI signal input and output
lSupport deep color 24bit, 30bit, 36bit
lSupport Blue-Ray 24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i
lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lSupport signal retiming
lSupport input up to 10metres AWG26 HDMI standard cable length,
output up to 10metres AWG26 cable length
lInstalls in minutes
lNeed DC12V/3A power supply
What we can do :
1: All of our products are proceeded age testing before shipment and we guarantee to use the products safety
2: Support imprint guests logo on products and make the package as your request .
3: OEM and ODM are warmly welcome .
Warranty :
1: All products and accessories are tested before shipment .
2: All products and accessories have 1 year warranty
3: We own the best after sales service , if any problems happens, our teams will do the best to service our guests.
