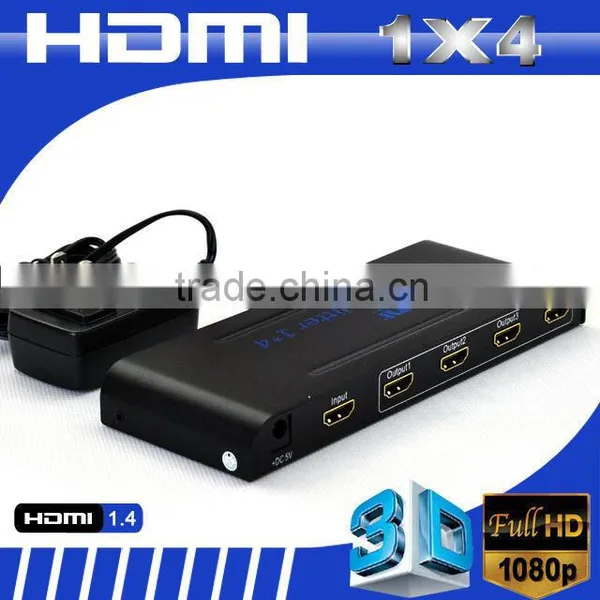

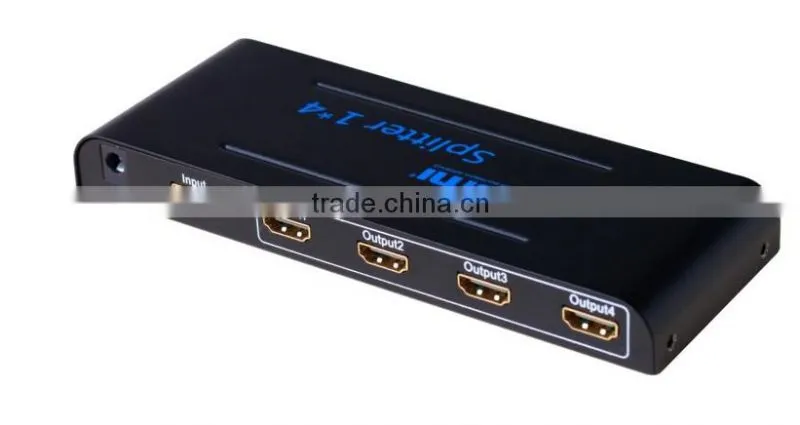

4-Port (1x4) HDMI 1.4 Amplified Powered Splitter / Signal Distributor - Ver 1.3 Full HD 1080P

Specifications

1.4v 3D 4kx2k 1x4 HDMI video and audio amplifier splitter
Support Full HD, Full 3D
Support 4Kx2K resolution
Support CEC

HDMI Splitter 1x4, 1 in 4 out  HDMI splitter, 4 port HDMI splitter, HDMI splitter

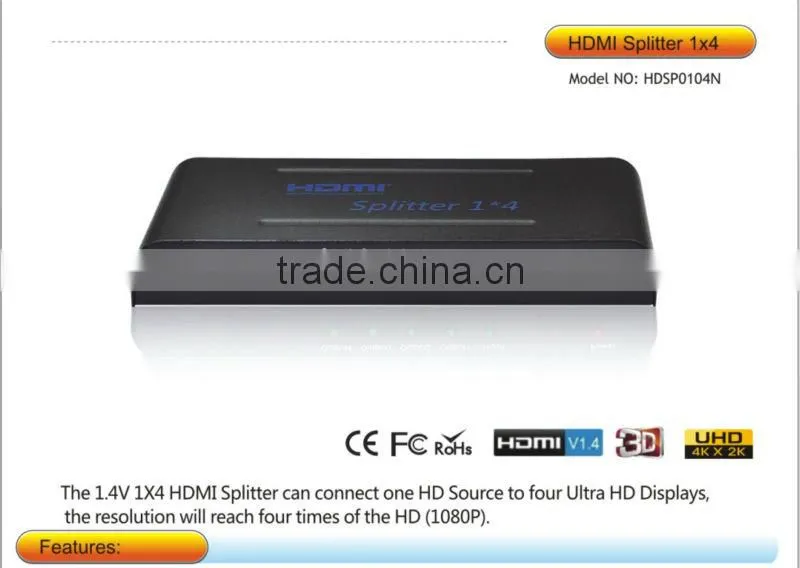

Model No:HDSP0104N

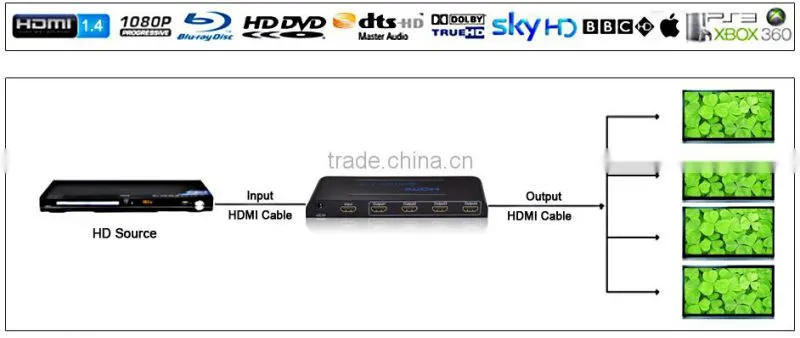

 The Full 3D 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks.

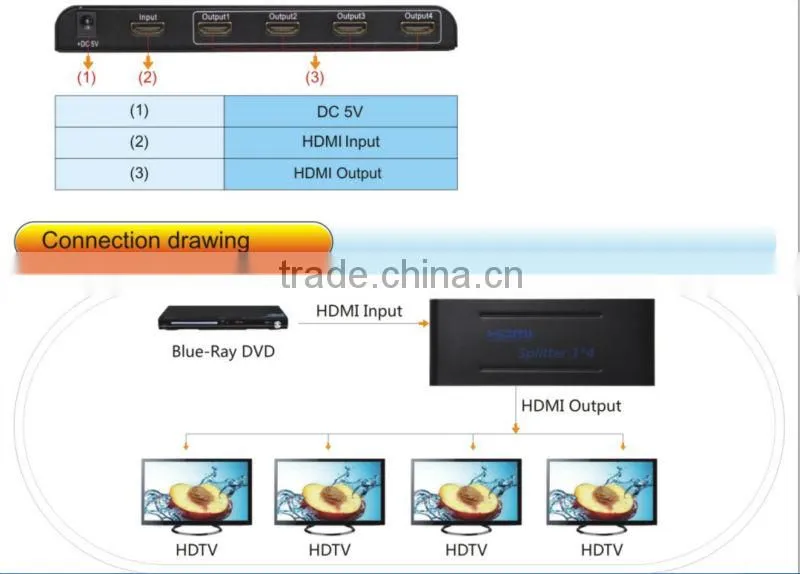

The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors.

The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

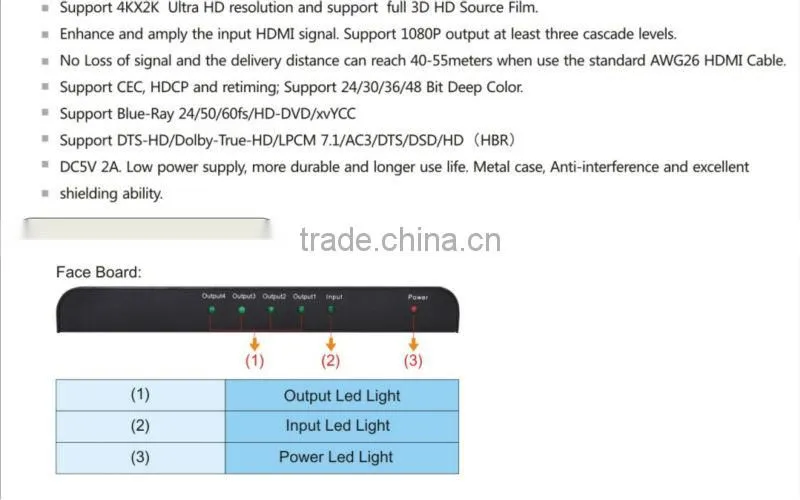

FEATURES





l One HDMI input signal split to four HDMI sink devices

l Support  Full HD, Full 3D

l Support 4Kx2K resolution

l Support CEC

l Support deep color 30bit, 36bit, 48bit

l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3

/DSD/HD(HBR)

l Support signal retiming

l Support input up to 15metres AWG26 HDMI standard cable length,

output up to 25metres AWG26 cable length

l No loss of quality

l Installs in minutes

l Need DC5V/3A power supply





SPECIFICATIONS:                                 HDSP0104N



HDMI resolution ………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………24bit/deep color 30bit,36bit, 48bit

Support audio format…DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth………………………340MHz

Max baud rate……………………………10.2Gbps

Input/Output TMDS signal ………………………………0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………… 5Volts p-p (TTL)

Input cable distance……………………≤15m HDMI AWG26

Output cable distance…………………………≤25m AWG26 HDMI standard cable

Max working current…………………………1200mA

Power adapter format..Input: ……………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range…………………… (-15 to +55°C)

Operating Humidity range……………………5 to 90%RH (No Condensation)

Dimension (L x W x H) …………………………………180X68X20(mm)

Weight………………………………………………320g
