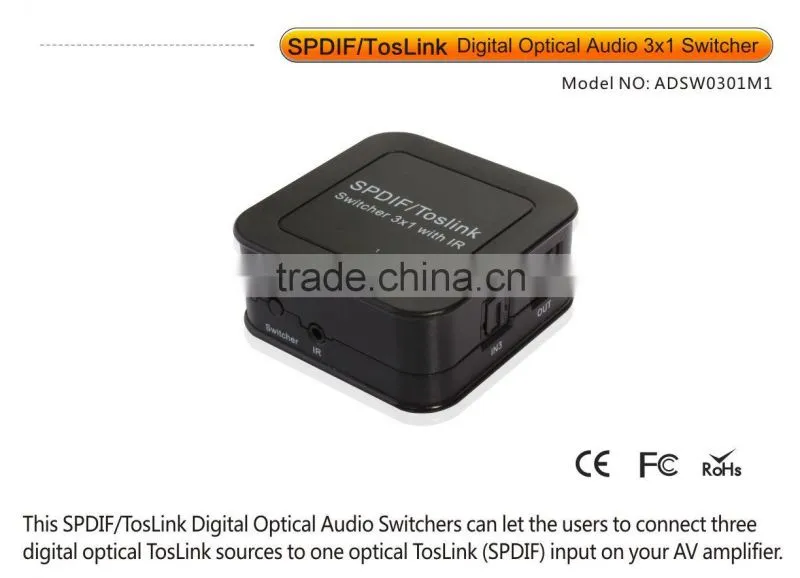

SPDIF/TosLink Digital Optical Audio 3x1 Switchers

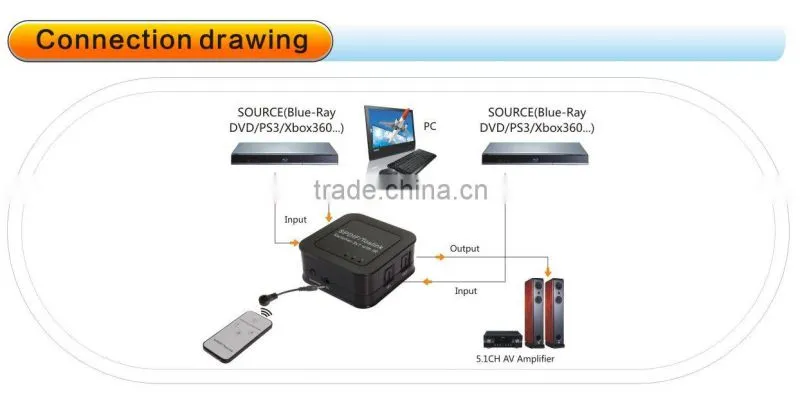

This SPDIF/TosLink Digital Optical Audio Switchers can let the users to connect three digital optical TosLink sources to one optical TosLink (SPDIF) input on your AV amplifier.

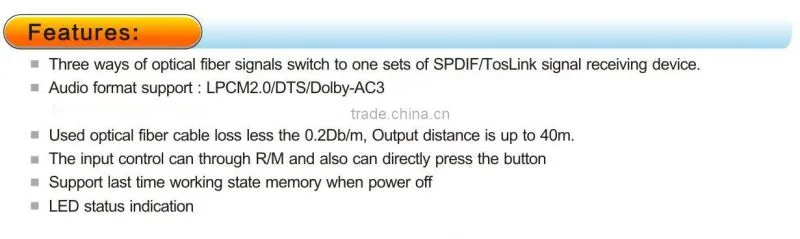

Features
1. Three ways of optical fiber signals switch to one sets of SPDIF/TosLink signal receiving device.
2. Audio format support : LPCM2.0/DTS/Dolby-AC3
3. Support signal retiming
4. Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
5. The input control can through R/M and also can directly press the button
6. Support last time working state memory when power off
7. Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
8. LED status indication
9. No loss of quality
10. Need DC5V/500mA power supply
SPECIFICATIONS: ADSW0301M1
Support audio format……………………………………..LPCM2.0/DTS/Dolby-AC3
Peak wavelength…………….........................................………650nm
Max baud rate…..…………….…...………………………………16Mbps
Output cable distance .....……. …≤40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current………………………………..……………...100mA
Power adapter format………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
Operating Temperature range……..…………….…………… (0 to +40℃)
Operating Humidity range…………….………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H)………………………………………54x54x23.5 (mm)
Weight…..………………………………………………………………35g
