Specifications
SPDIF/TosLink 1*3 audio amplifier1: Audio support LPCM2.0/DTS/Dolby-AC3
2: optical spdif/toslink splitter 1x3
1x3 Digital Optical Audio splitter

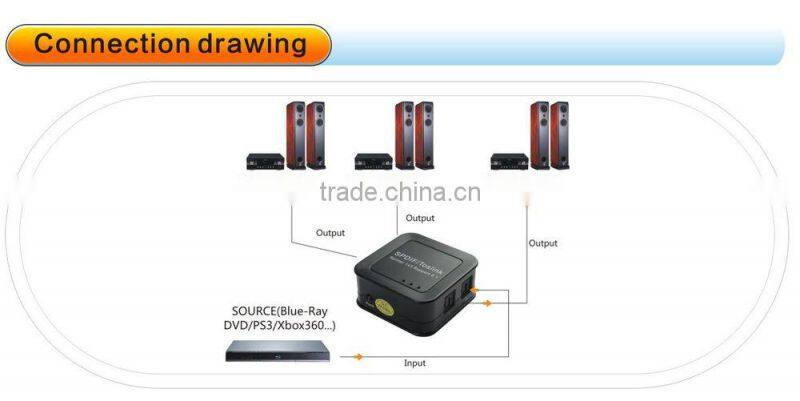

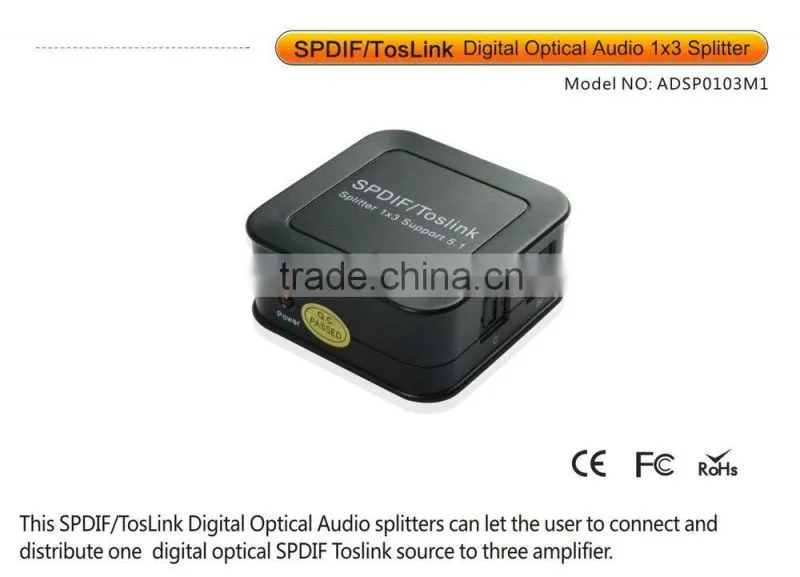

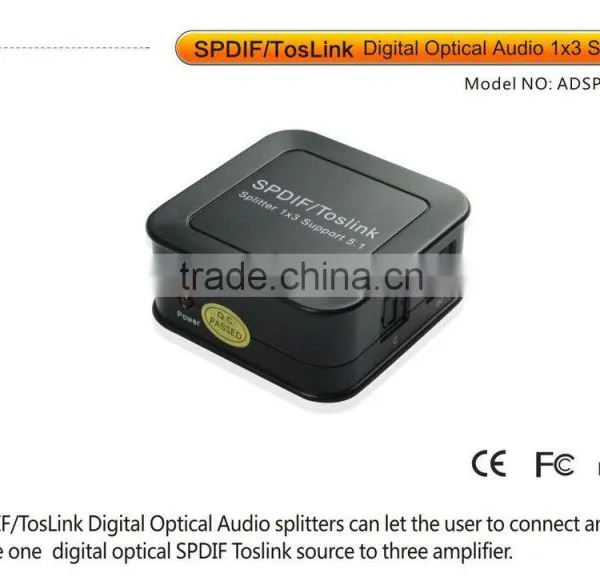

This SPDIF/TosLink Digital Optical Audio splitters can let the user to connect and distribute one digital optical SPDIF Toslink source to three amplifier.

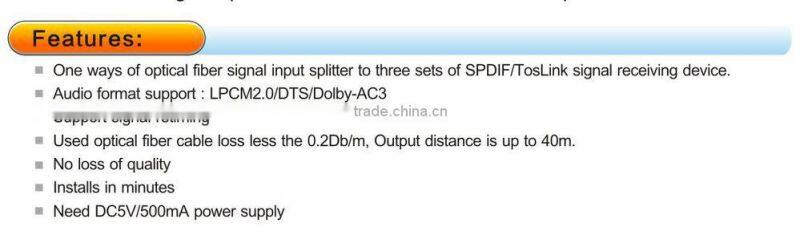

Features
1. One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2. Audio format support : LPCM2.0/DTS/Dolby-AC3
3. Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
4. Need DC5V/500mA power supply
SPECIFICATIONS: ADSP0103M1
Support audio format…………………………………..LPCM2.0/DTS/Dolby-AC3
Peak wavelength………………................................................650nm
Max baud rate…...................................................................16Mbps
Output cable distance .....…….≤40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current………………………………………………...100mA
Power adapter format………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
Operating Temperature range….........................................…(0 to +40°C)
Operating Humidity range……….............................…5 to 90%RH (No Condensation)
Dimension (L x W x H)………………..................……………54x54x23.5 (mm)
Weight…............................................................................35g
