SPDIF/TosLink 1x3 Splitter Swith DC5V/500mA Power Supply

SPDIF/TosLink 1x3 Splitter Swith DC5V/500mA Power Supply photo-1
Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASK
Model Number:
ADSP0103M1
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ASK
Model Number ADSP0103M1
Type Coaxial
Application Projector
Color Black
Packing Carton Box
Connector Color Other
Connector Type Stereo

Specifications

One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
LPCM2.0/DTS/Dolby-AC3

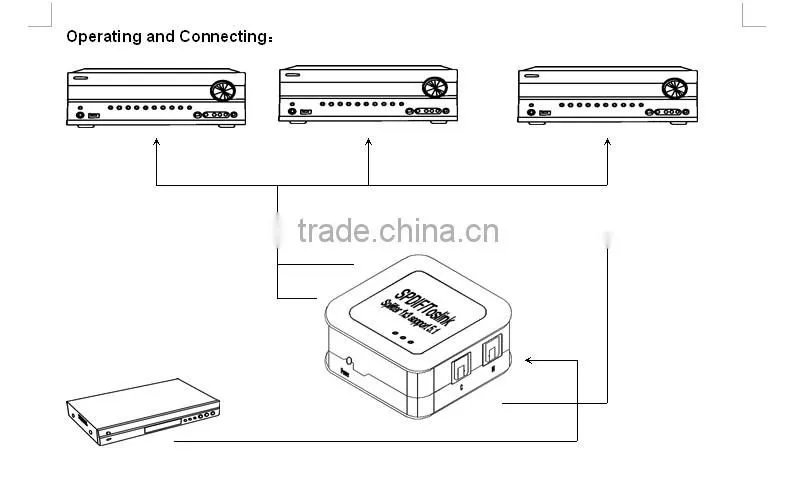

This SPDIF/TosLink Digital Optical Audio splitters can let the user to connect and distribute one  digital optical SPDIF Toslink source to three amplifier.



 Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



 FEATURES



l One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.



l Audio format support : LPCM2.0/DTS/Dolby-AC3



l Support signal retiming



l Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.



l Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine



l No loss of quality



l Installs in minutes



l Need DC5V/500mA power supply



 SPECIFICATIONS:                            ADSP0103M1



 Support audio format…………………………………………………..LPCM2.0/DTS/Dolby-AC3



Peak wavelength………………......................................................................650nm



Max baud rate…..16Mbps



Output cable distance .....…….≤40m(Use the optical fiber cable loss less the 0.2Db/m )



Max working current………………………………………………………...100mA



Power adapter format………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA



Operating Temperature range……(0 to +40°C)



Operating Humidity range……………5 to 90%RH (No Condensation)



Dimension (L x W x H)……………………………54x54x23.5 (mm)



Weight…..35g





 The accessories with the machines lists:







1. 5V Power Adaptor



2. Operation Manual
