Specifications
2 Spdif input + 2 coaxial input switcher to one Spidf outConverter coaxial to Spdif
Converter spdif to 3.5mm audio+R/L audi
Digital to Analog Audio Converter converter Optical / Coaxial to 3.5mm audio and R/L audio
Specifications
2 Spdif input + 2 coaxial input switcher to one Spidf out
Converter coaxial to Spdif
Converter spdif to 3.5mm audio+R/L audio
(2) Converter coaxial audio to Spdif audio
It is a converter, not a decoder

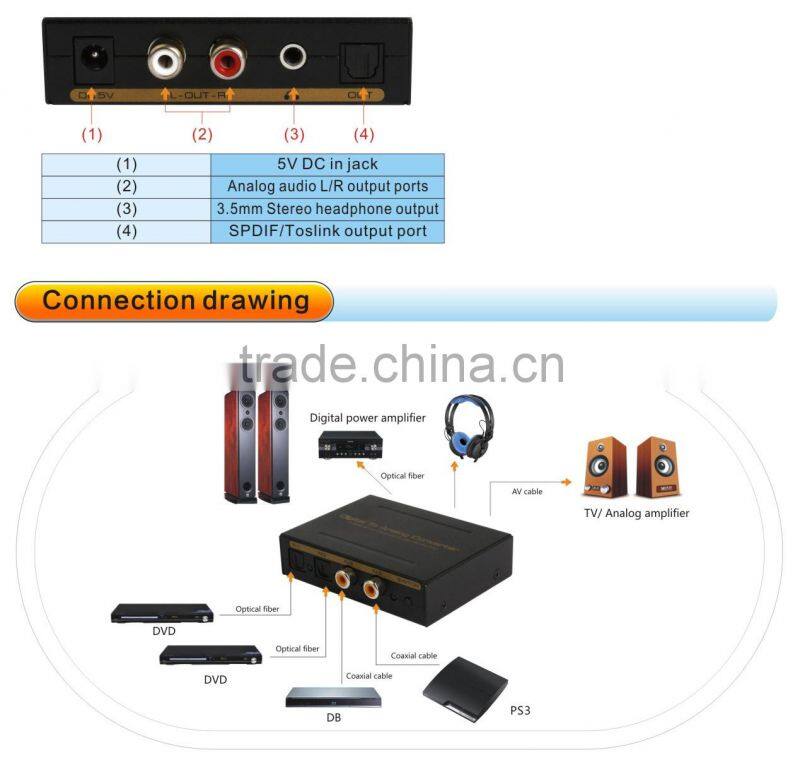

(4) One spdif output, one 3.5mm audio output and R/L can output at the same time

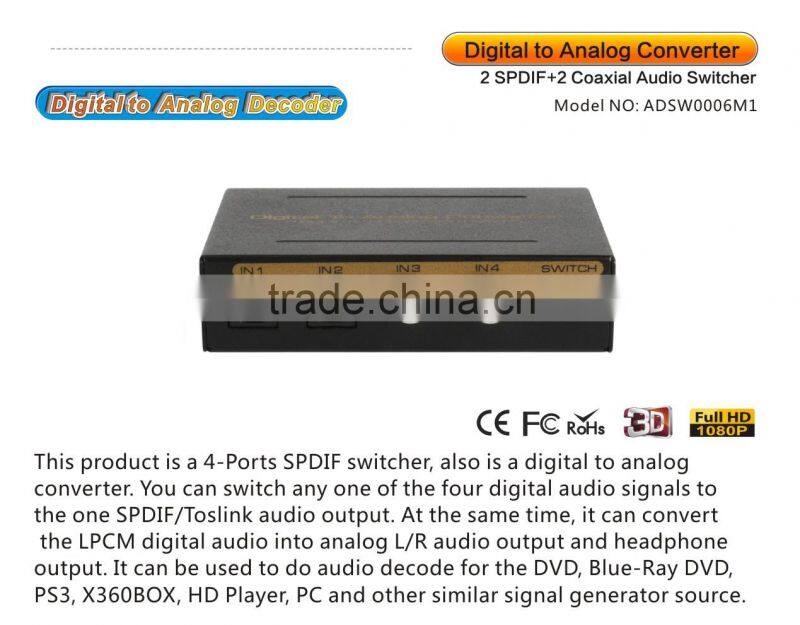

This product is a 4-Ports SPDIF switcher, also is a digital to analog converter.
You can switch any one of the four digital audio signals to the one SPDIF/Toslink audio output.
At the same time, it can convert the LPCM digital audio into analog L/R audio output and headphone output.
It can be used to do audio decode for the DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC and other similar signal generator source.

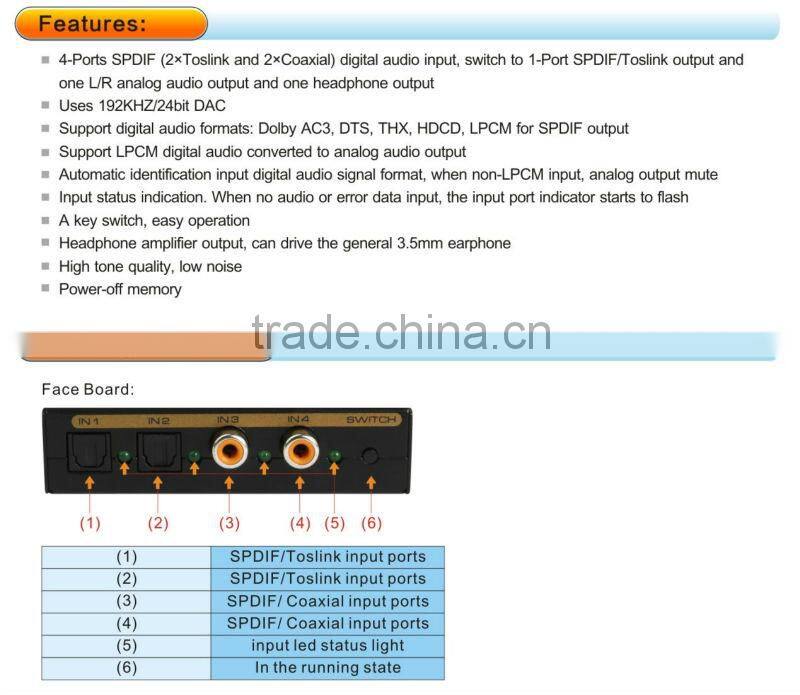

FEATURES:
4-Ports SPDIF (2×Toslink and 2×Coaxial) digital audio input, switch to 1-Port SPDIF/Toslink output and one L/R analog audio output and one headphone output
Uses 192KHZ/24bit DAC
Support digital audio formats: Dolby AC3, DTS, THX, HDCD, LPCM for SPDIF output
Support LPCM digital audio converted to analog audio output
Automatic identification input digital audio signal format, when non-LPCM input, analog output mute
Input status indication. When no audio or error data input, the input port indicator starts to flash A key switch, easy operation
Headphone amplifier output, can drive the general 3.5mm earphone
High tone quality, low nois
Power-off memory
DC5V/1A power adapter
PACKAGE CONTENTS:
1,Main unit 1pcs
2,AC power adapter 1pcs
3,User manual 1pcs
SPECIFICATIONS: ADSW0006M1
Analog Audio Output Support audio format …… PCM/LPCM
DAC sample frequency range……………32~192 KHz
DAC Bit rate range…………16~24 Bit
Digital input level…………0.1~1Volts p-p L/R output level(1kHz@0dB).......1V RMS
Headphone output power (1kHz@0dB RL=32)………30mW
SNR @ 0dB(CCIR/ARM)………………90dB
Distortion…………0.1%
Frequency response………………20Hz~20KHz
Max working current ……………100mA Power adapter
format Input...... AC 100V~240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ……………-10 to +55°C
Storage Temperature range……………-20 to +60°C
Operating Humidity range ……………10 to 90%RH (No Condensation)
Storage Humidity range……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) …………85x62x21 (mm)
Weight ………130g
