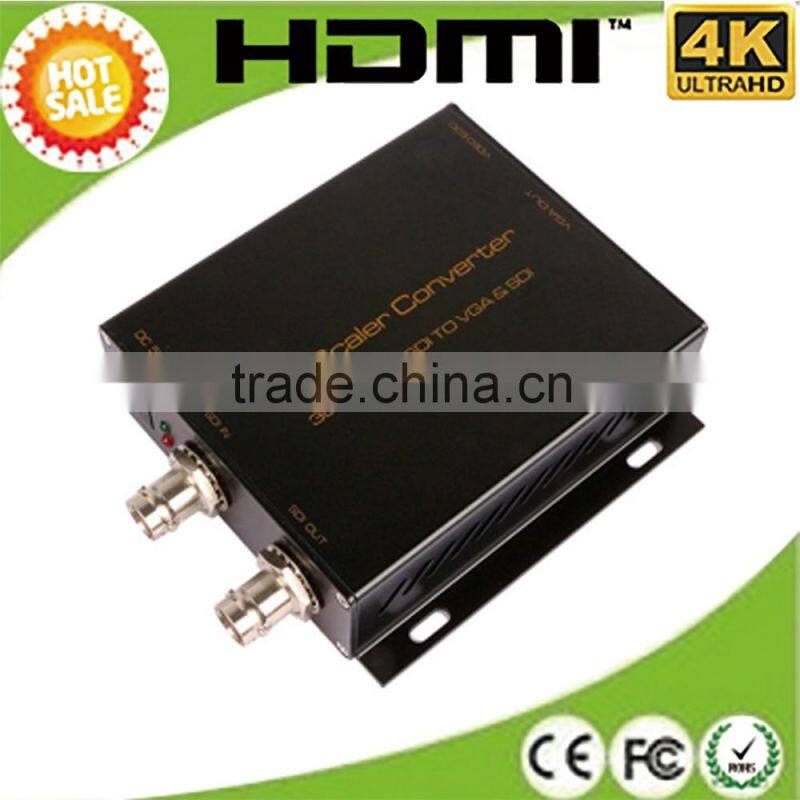

<h2>SDi to vga converter support 3D, HD </h2>
| Feature |
SDI Input Format: Support SD-SDI, HD-SDI and 3G-SDI Video Output Signal: one SDI output(loop output), one VGA signal output Support SDI Input Resolution:SD-SDI:480I@60Hz,576I@60Hz; HD-SDI:720P@50Hz,720P@ 60Hz, 1080I@50/60Hz,1080P@25 Hz,1080P@30 Hz;3G-SDI:1080P@50/60Hz. VGA Output Resolution:800X600@60Hz,1024X768@60Hz,1280X720@60HZ, 1360X768@60HZ, 1920X1080@60HZ Support SDI transmission Speed: SD-SDI:270Mb/s,HD-SDI:1.485Gb/s and 3G-SDI: 2.97Gb/s. Input Audio Signal: SDI Built-in One SDI signal loop output Support up to 3G-SDI Support Auto Recognition Resolution Audio and Video Output Simultaneously No loss of quality Installs in minutes Wide voltage input, It can support DC 5V~ 12V input
|
| Specification |
Support SDI Input Format.................SD-SDI,HD-SDI and 3G-SDI Audio Signal.............................. SDI Built-in SDI baud rate.......................270Mb/s,1.485Gb/s and 2.97Gb/s Coaxial cable Characteristic impedance.....................75Ω Max working current.............................700mA/DC 5V Power adapter format.........Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A Operating Temperature range......................... -10 to +55℃ Storage Temperature range....................... -20 to +60℃ Operating Humidity range..................10 to 90%RH (No Condensation) Storage Humidity range....................5 to 95%RH (No Condensation) Dimension (L x W x H) ............... ..........94X93.8X28 (mm) Weight................................... .....180g |
hdmi to sdi scaler converter sdi to hdmi converter with extend
sdi splitter 1x2 support 100m sdi splitter 1x4 support four sdi
sdi to analog converter
Standard Package: Blister Box+ Instruction book + white box .Mostly,we could provide our Ai. diecut for customer to add their own design.Or We could also do customized package as customer's requirements.
SDi to vga converter support 3D, HD
Business Terms
| Accepted Delivery Terms: | FOB, CIF, EXW |
| Accepted Payment Currency: | USD, EUR, HKD, GBP, CNY |
| Accepted Payment Type: | T/T, L/C, Western Union, Cash |
| Nearest Port: | Shenzhen |
Company Profile
We arethe earliest developers and manufacturers committed to HDMI audio and video application system in China since 2004 with holding 20 patents.
By service our customers all over the world, we have consisted a super strong R&D team make up by 30 engineers which most with 6-10 years experience in HDMI and HDMI accessories products. Backed with vast experiences in design, engineering, manufacturing, we have build long term business with Samsung, Song, LG, Skyworth, TCL and Hair. We are not just manufactory for HDMI products, we are also provide HDMI application resolution for customer.
Factory Capacity
We strictly adhere to ISO 9001:2008 standards since we set up the factory by 2004. Also we are the holder for the certificate of ISO ,HDMI ATC, USB, UL, ROHS, CE, FCC and EMC. By implement the above high quality and technology standard, we are confident to make promise to every of our customer that all of our products is 3 years quality guarantee.
The published products are included HDMI splitters, switchers, converters, true matrixes, HDMI extenders and smart safe system products, but we are keeping publishi new product every month.
SDi to vga converter support 3D, HD
1. About sample: Sample can be ready with 5 days, for customized sample lead time is 20 days.
2. Payment service: T/T,30% deposit,70% before the dilivery.
3. After-sale service: We offered with 3 years quality guarantee.
4. Response service: We will reply you within about 24 hours.
5. Customize service: OEM and ODM.
A.How long about the samples ?
A1:About 3-5 days.
B.How long can be ready about the goods ?
B1:It usually takes about 30 working days,it is based on the detailed QTY.
C.Can you offer the OEM and ODM service ?
C1:Yes,of course,as we have our own design team.
D.What is the type of your company ?
D1:We are the earliest developers and manufacturers committed to HDMI audio and video application system in China since 2004 with holding 20 patents. We are also offered with product solution.
