High Quality 2 Way SD/3G/HD SDI Video Splitter 1x2
The 2 Port SDI Splitter can easily distribute one SDI signal to two SDI Compliant Displays
without any loss of signal, distortion and delay. It supports SD-SDI,HD-SDI and 3G-SDI format
signals; also it can do amplify to the SDI signal.
FEATURES
One Signal distribute to two SDI signal out.
Support SD-SDI, HD-SDI and 3G-SDI Video Format.
SDI Supports1080P/1080I/720P/576I/ 480I Video Resolution.
Support SDI transmission Speed: SD-SDI:270MbPs,HD-SDI:1.485GbPs and 3G-SDI:
2.97GbPs.
Supported Max Cable Length(SYV-75-5):SD supports up to 400m,HD supports up
to 200m, 3G supports up to 80~100m(Note: The cable length will depend on the cable
spec)
Support deep color 8bit, 10bit, 12bit
Support up to 3G-SDI
Audio and Video Output Simultaneously
Support Clock Recovery
No Any Drive Need, Support Hot-Plug, Plug and Play
Wide voltage input, It can support DC 5V~ 12V input
SPECIFICATIONS: … SDISP0102
Support SDI Format………………….…………………………….SD-SDI,HD-SDI and 3G-SDI
SDI resolution…………………………………………..….……...... 1080P/1080I/720P/576I/ 480I
Support video color format ……………………...…………...….……..8bit/deep color 10bit,12bit
Audio Signal……………………………………………………………………………… SDI Built-in
SDI baud rate…………………...……………………..……270Mbps,1.485Gbps and 2.97Gbps
Coaxial cable Characteristic impedanc…………………………………………………………75Ω
Max working current……………………………………………………..…………....300mA/DC 5V
Power adapter format……….…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/2A
Operating Temperature range……..…………….……….…………………………… -10 to +55℃
Storage Temperature range…………………………………………………………… -20 to +60℃
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….…. ………………………. 68 X93.8X28 (mm)
Weight…..………………………………………………………..………………….. ……………143g

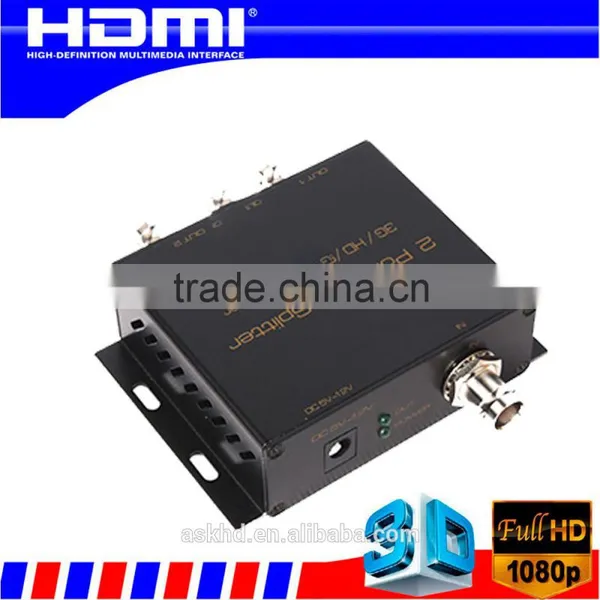

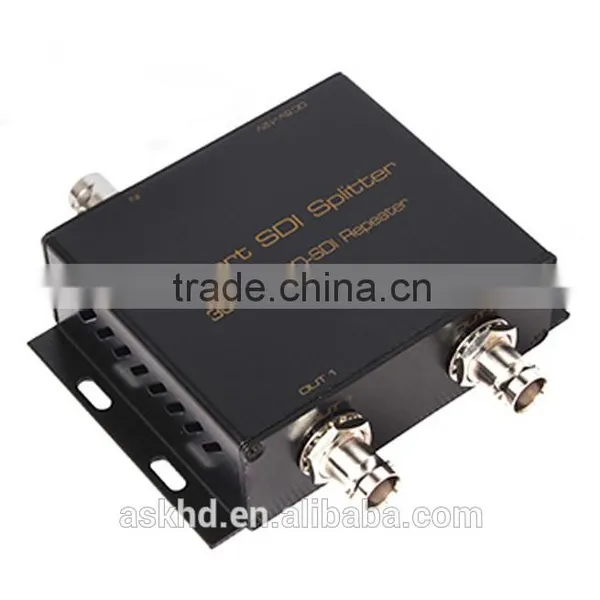

Detailed Images:
PACKAGE CONTENTS:
1,Main unit 1PCS
2,5VPower Adaptor 1PCS
3,one pc of Manual 1PCS
