Specifications
HD-SDI to HDMI ConverterHigh quality and fast speed 3G SDI TO HDMI converter

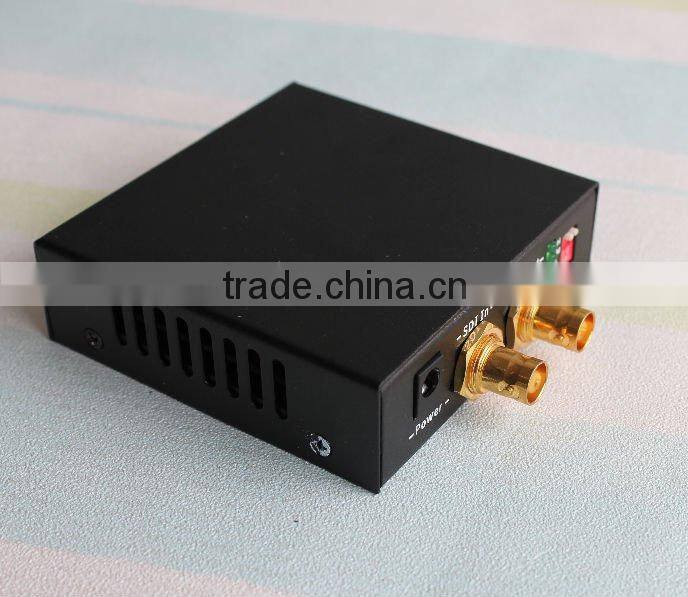

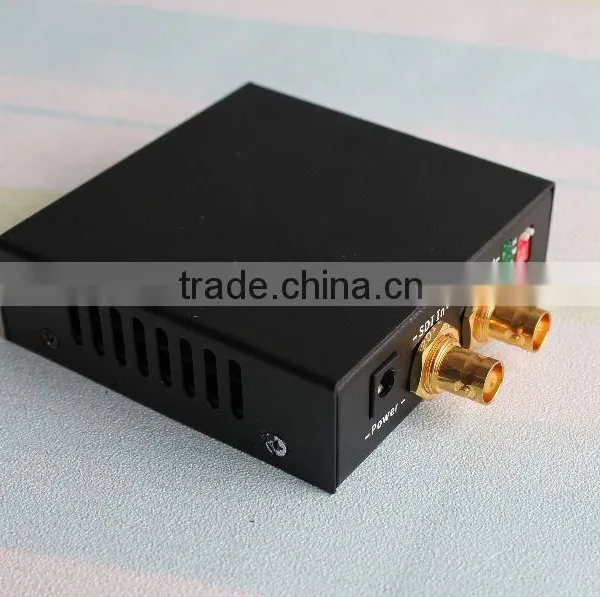

3G SDI to Hdmi Converter with 1080P Resolution
HD-SDI converter products specaility:
SD:525i(NTSC),625I(PAL)
HD:720P 50/60
1080I 50/60 1080p 23.97/24/25/29.97/30
The hd-sdi to hdmi Converter is specially designed for converting the single HD-SDI
singnal into single HDMI Signal.The converter integrates the SDI Receiver and HDMI
Tuner,so it can convert the HD-SDI Signal into HDMI Signal,also it can separate the audio
and video signal from the SDI—itself and embed the audio&video signal into the HDMI
Signal,.This equipment also incldes one HD-SDI output interface.
Features
l One HD-SDI input signal convert to the TMDS Signal to be outputted to the end
displaying equipment.
l Support eight audio channels output
l SDI Receiver Integrated
l HDMI Turner Integrated
l Embed the AES/EBU Audio Signal into the TMDS Signal,then in HDMI Signal Ouput
loutput.
l R/L Audio Output
l Installs in minutes
l Power Supply 5V/2A
Operating and Connecting
1. Connect SDI Signal Source devices into Converter SDI input.
2. Connect one HDMI Cable from the end displaying equipment into the Converter
outputs.
3. Connect 5V power supply to the HDCSDI0101 Converter.
Specifications:
Video Input Signal……………………………………………………….…………………HD-SDI Signal
Audio Input……………………………………………………...…………………AES/EBU Audio Signal
Video Output Signal……………………….One HD-SDI Signal Output and one HDMI Signal Ouput
Audio Output …………………………………………………………………………………..…..……R/L
HDMI Resolution…………………………………………………………………………480I,720P,1080I
Audio Input Signal ……………………………..…………………………………………0.5~1.5Volts p-p
Ouput DDC Signal ……………………………………………………………………… 5Volts p-p (TTL)
Max Woking Current……………………..…………………………………………………………800mA
Power Adaptor…….……………………………AC Input (50HZ, 60HZ) 100V-240V;Output: DV5V/2A
Operating Temparature Range……..…………….………………………………………. (-15 to +55°C)
