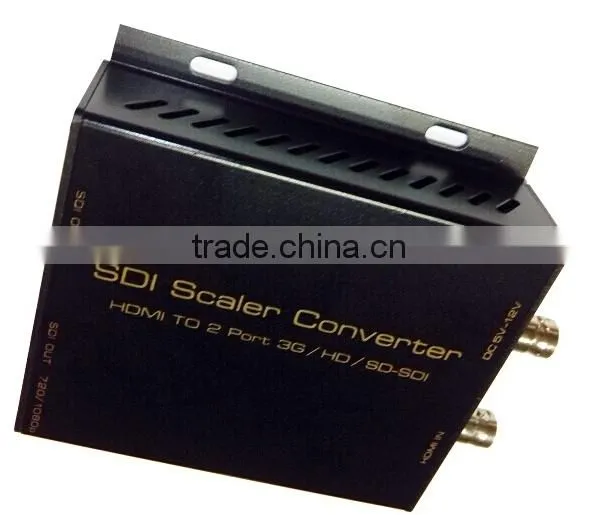

Newest HDMI to SDI Converter with 2 ways SDI splitter
The device can converter the HDMI signal to SD-SDI, HD-SDI and 3D-SDI signal. It integrates SDI receiver and HDMI modulator to help the device to change the HDMI signal to SDI signal and embed the audio signal from HDMI into the SDI signal to do simultaneously transmit of the audio and video.
Features:
1. Input Video Signal: One HDMI Input
2. Video Signal Output: Two SDI output that support SD-SDI,HD-SDI and 3G-SDI signal.
3. support HDMI Resolution:480I@60Hz,576I@60Hz,720P@50Hz,720P@60Hz,1080I@50/60Hz,1080P@25 Hz,1080P@30 Hz,1080P@50/60Hz. 4. HDMI Output:720P/ 60Hz,1080P/ 60Hz,PASS Three Modes For Choose(Default PASS Mode)
5.Support Both SDI Output simultaneously.
6.Out put Audio Signal: SDI Built-in
7.Support Auto Recognition Resolution
8.Audio and Video Output Simultaneously
9.Wide voltage input, It can support DC 5V~ 12V input
10. products type : HDMI to SDI converter
SPECIFICATIONS: HDCN0024M1
Output highest resolution………………………………………………………………1080P@60HZ
Audio Signal……………………………………………………………………………… SDI Built-in
SDI baudrate……………...…………………………..………270Mb/s,1.485Gb/s and 2.97Gb/s
Output DDC signal……………………………………………………….….………5Volts p-p (TTL)
Max working current……………………………………………………..…………...700mA/DC 5V
Power adapter format……….…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/1A
Operating Temperature range……..…………….……….…………………………… -10 to +55℃
Storage Temperature range…………………………………………………………… -20 to +60℃
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….…. ……………………….94X93.8X28 (mm)
Weight…..………………………………………………………..………………….. ……………165g

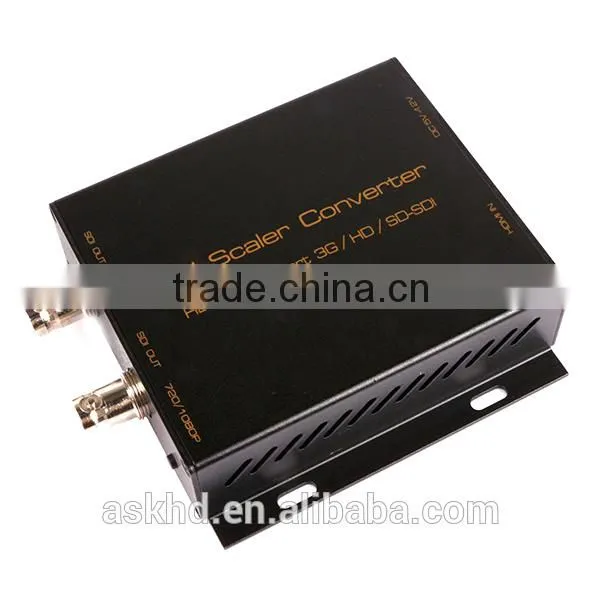

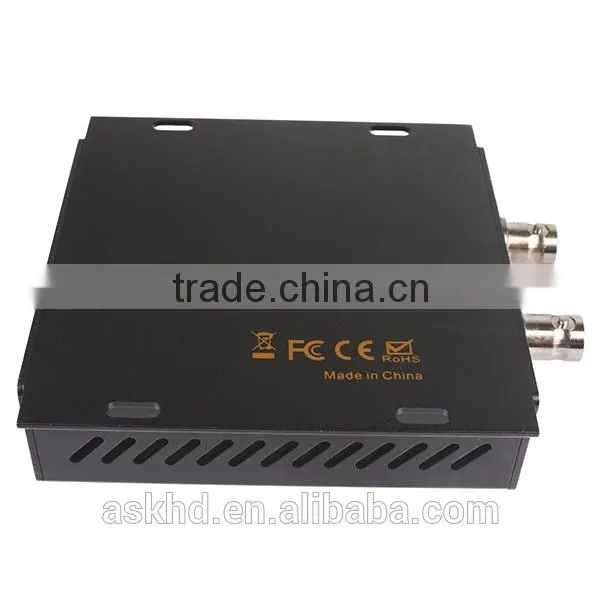

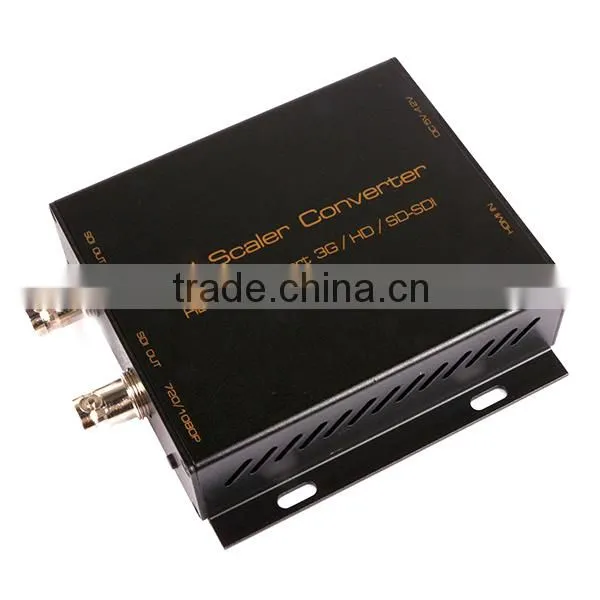

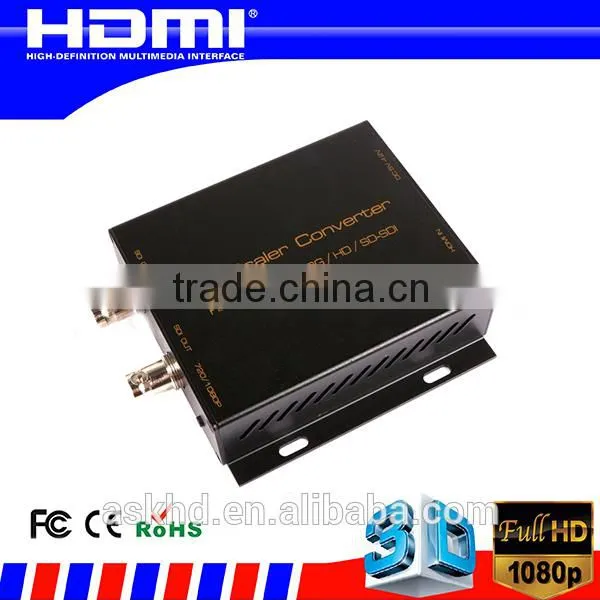

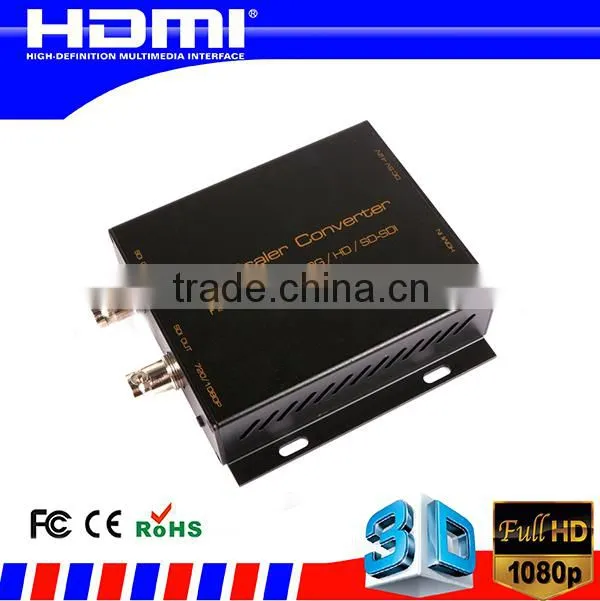

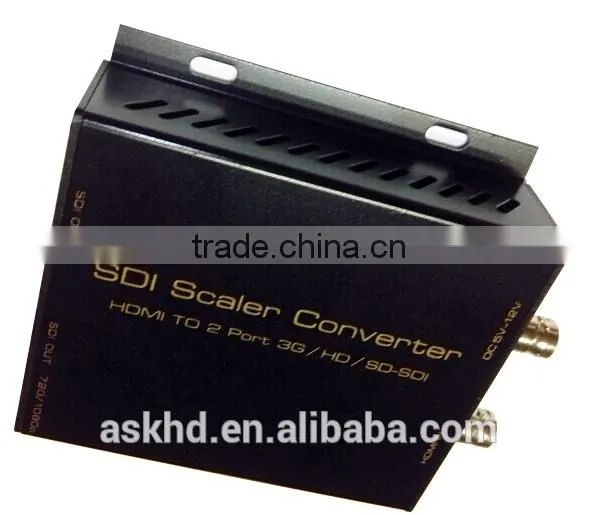

Detailed Images:
Certifications:
