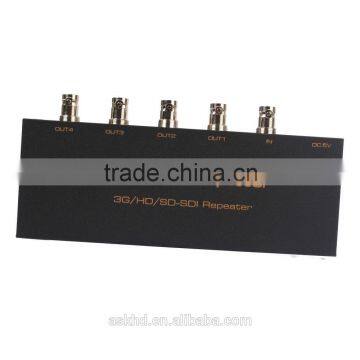

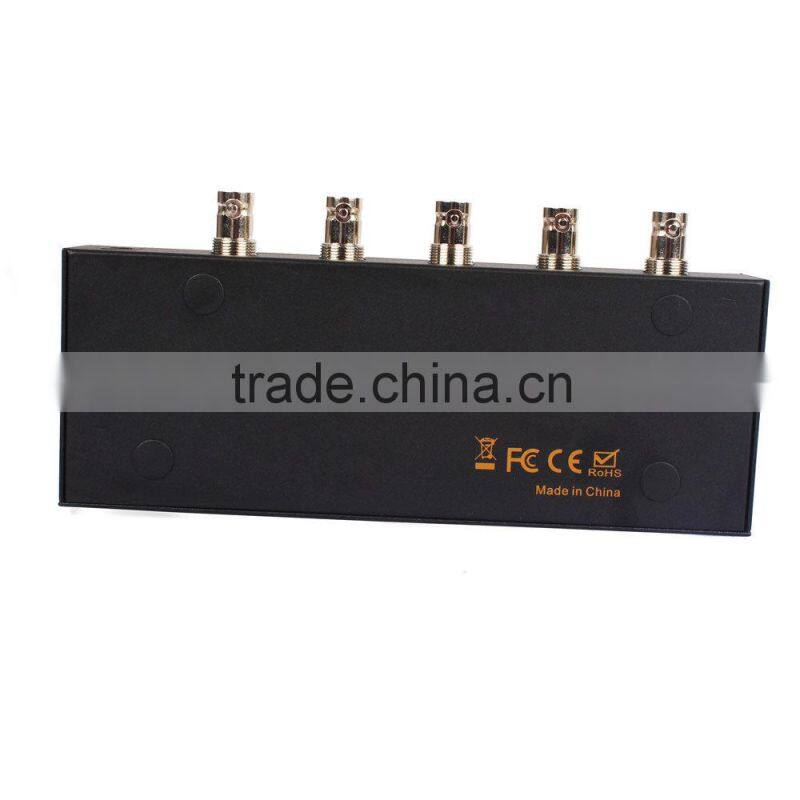

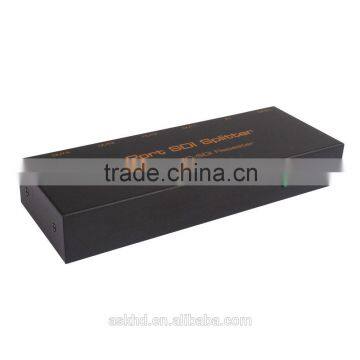

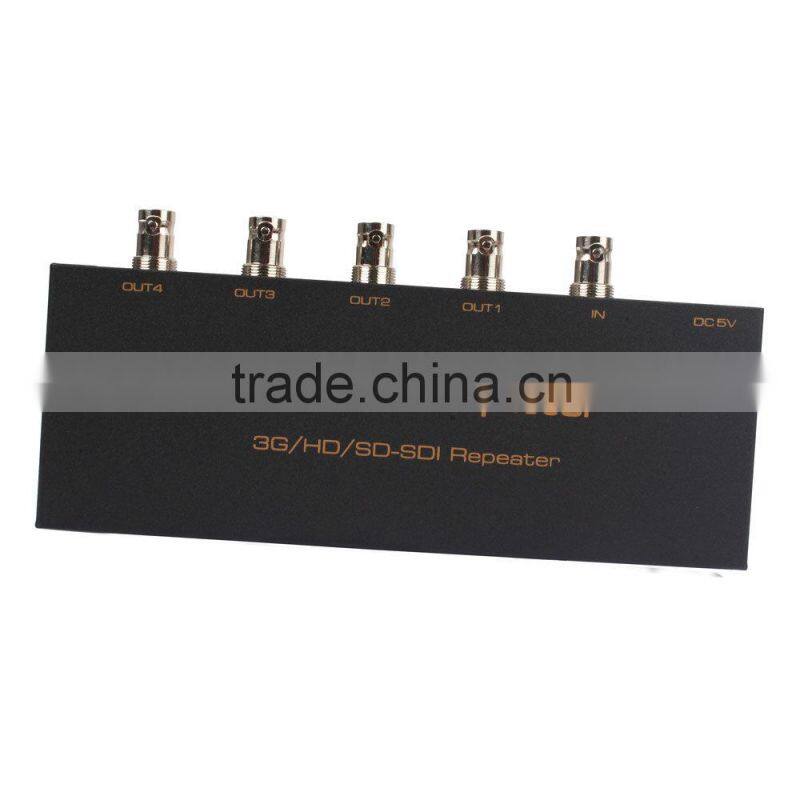

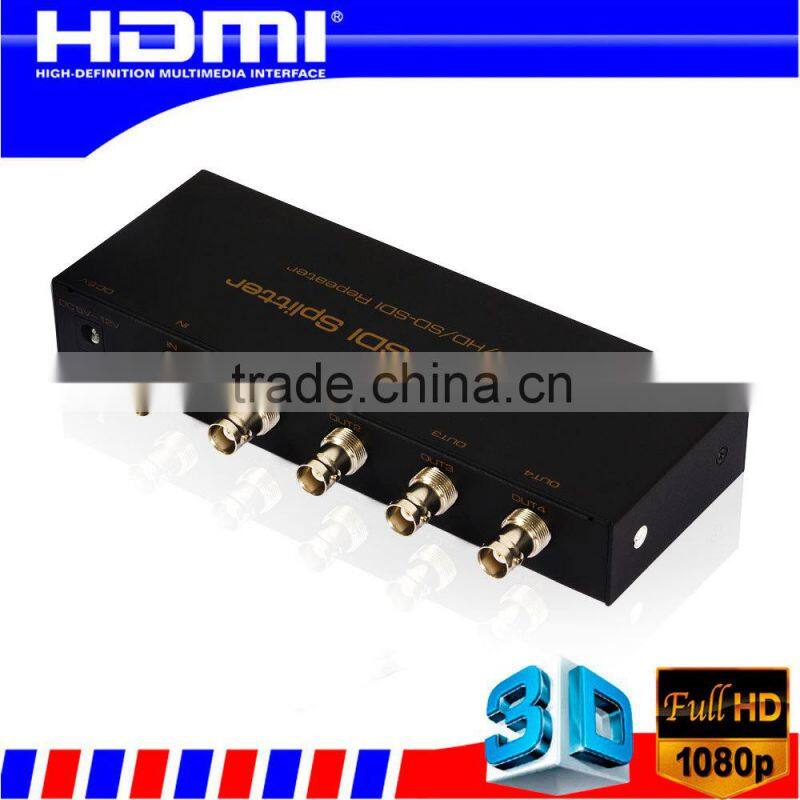

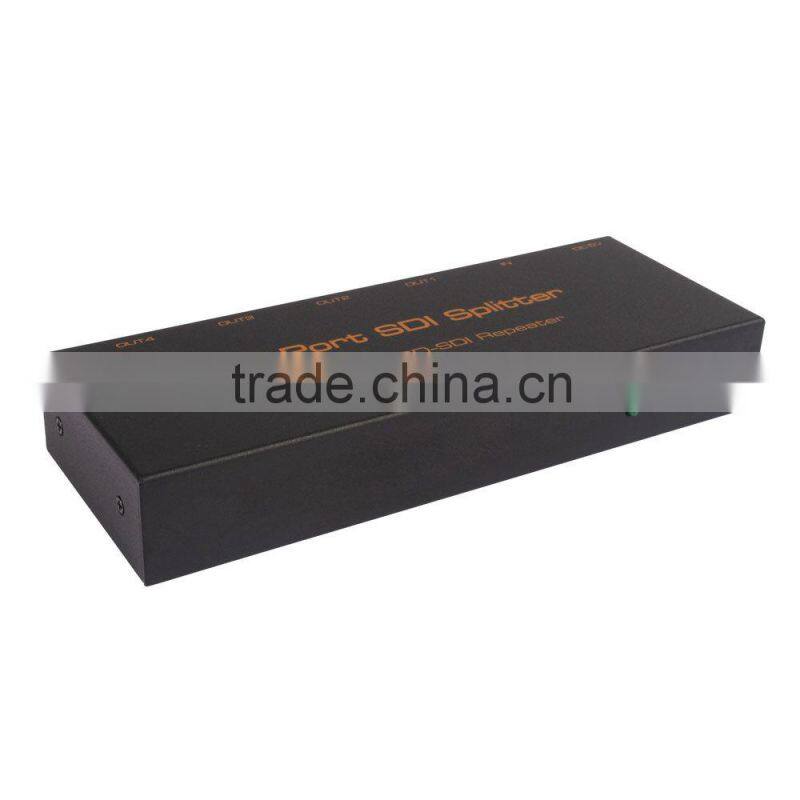

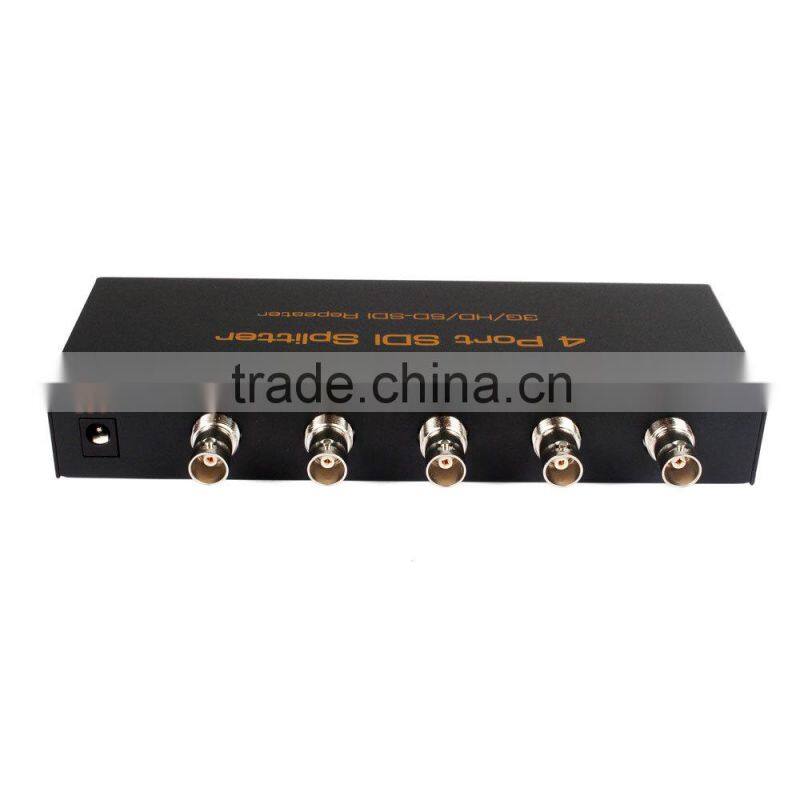

hot sale for 2015 SD/HD/3G SDI Splitter 1x4 1080p

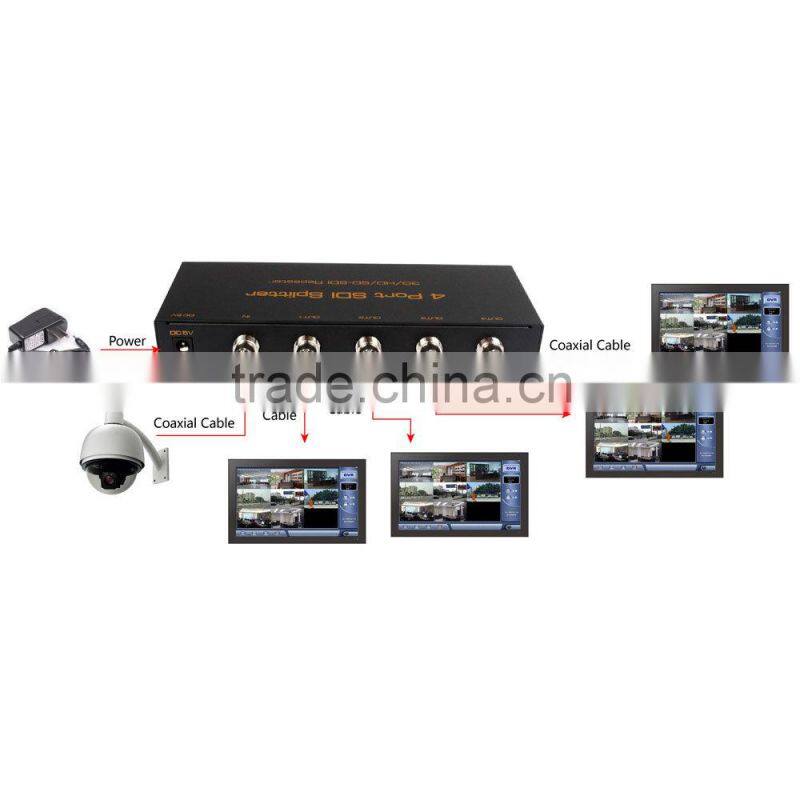

The 4 Port SDI Splitter can easily distribute one SDI signal to four SDI Compliant Displays without any loss of signal, distortion and delay. It supports SD-SDI,HD-SDI and 3G-SDI format signals; also it can do amplify to the SDI signal.
FEATURES
lOne Signal distribute to four SDI signal out.
lSupport SD-SDI, HD-SDI and 3G-SDI Video Format.
lSDI Supports1080P/1080I/720P/576I/ 480I Video Resolution.
lSupport SDI transmission Speed: SD-SDI:270MbPs,HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs.
lSupported Max Cable Length(SYV-75-5):SD supports up to 400m,HD supports up to 200m, 3G supports up to 80~100m(Note: The cable length will depend on the cable spec)
lSupport deep color 8bit, 10bit, 12bit
lSupport up to 3G-SDI
lAudio and Video Output Simultaneously
lSupport Clock Recovery
lNo Any Drive Need, Support Hot-Plug, Plug and Play
lWide voltage input, It can support DC 5V~ 12V input
SPECIFICATIONS: SDISP0104
Support SDI Format………………….…………………………….SD-SDI,HD-SDI and 3G-SDI
SDIresolution…………………………………………..….……...... 1080P/1080I/720P/576I/ 480I
Support video color format ……………………...…………...….……..8bit/deep color 10bit,12bit
Audio Signal……………………………………………………………………………… SDI Built-in
SDI baudrate…………………...……………………..……270Mbps,1.485Gbps and 2.97Gbps
Coaxial cable Characteristic impedance…………………………………………………………75Ω
Max working current……………………………………………………..…………....300mA/DC 5V
Power adapter format……….…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V~12V/2A
Operating Temperature range……..…………….……….…………………………… -10 to +55℃
Storage Temperature range…………………………………………………………… -20 to +60℃
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….…. ………………………. 178X66X28 (mm)
Weight…..………………………………………………………..………………….. ……………418g

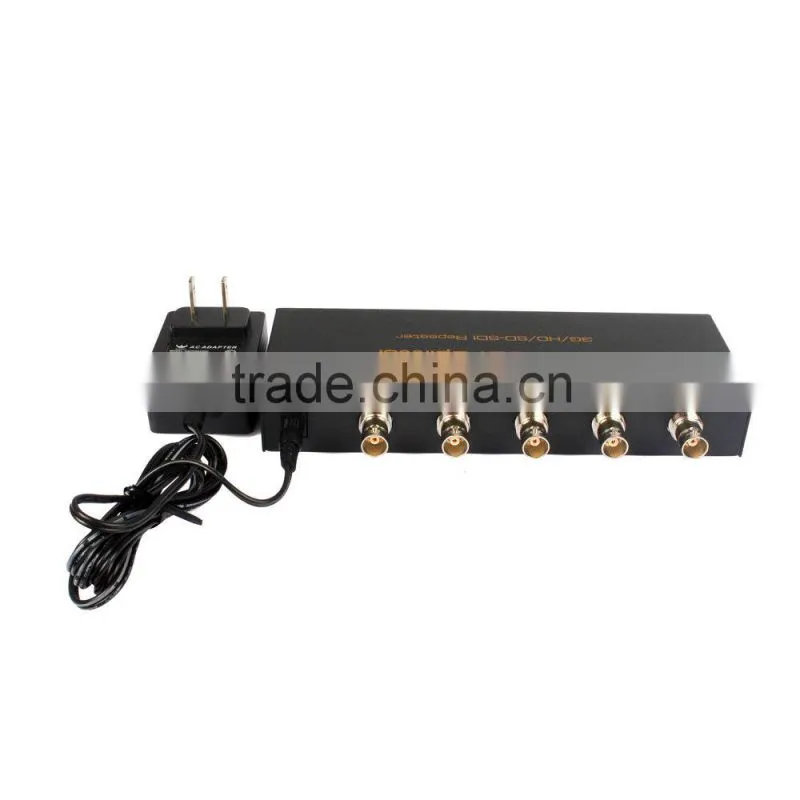

3 Detailed images
PACKAGE CONTENTS:
1,Main unit 1PCS

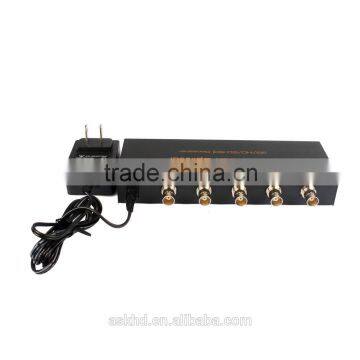

2,5VPower Adaptor 1PCS
3,one pc of Manual 1PCS
