Help CenterHdmi Audio Extractor HDMI to HDMI +Audio ( SPDIF+ L/R) Audio Extractor (3D&1080P)
Related Products
-
HDMI to Audio(R/L+Toslink Audio) Converter Box With Audio EDID SettingNegotiableMOQ: 50 Pieces -
IR Over HDMI Injector KitNegotiableMOQ: 50 Pieces
-
4 Port HDMI Over Cat5 Extender/SplitterNegotiableMOQ: 10 Sets
-
HDMI Dts Dac Audio DecoderNegotiableMOQ: 50 Pieces
-
HDMI Matrix Switch 4 in 2 Out With AudioNegotiableMOQ: 50 Pieces
Specifications

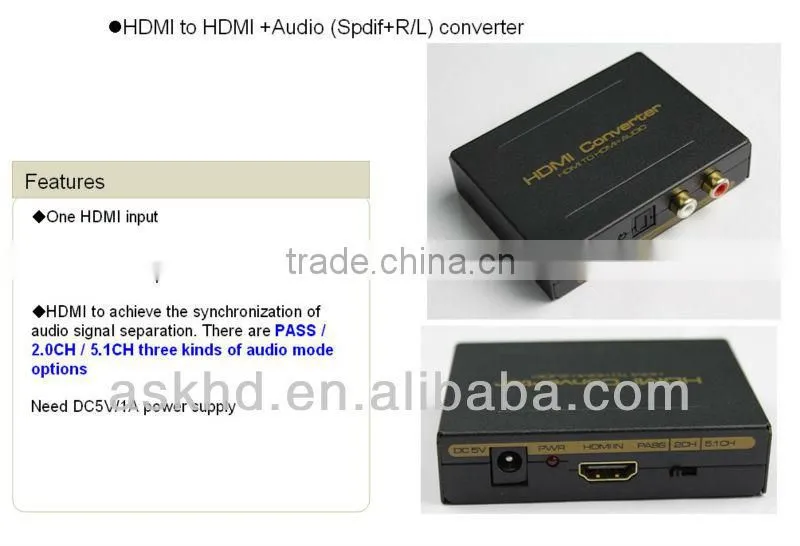

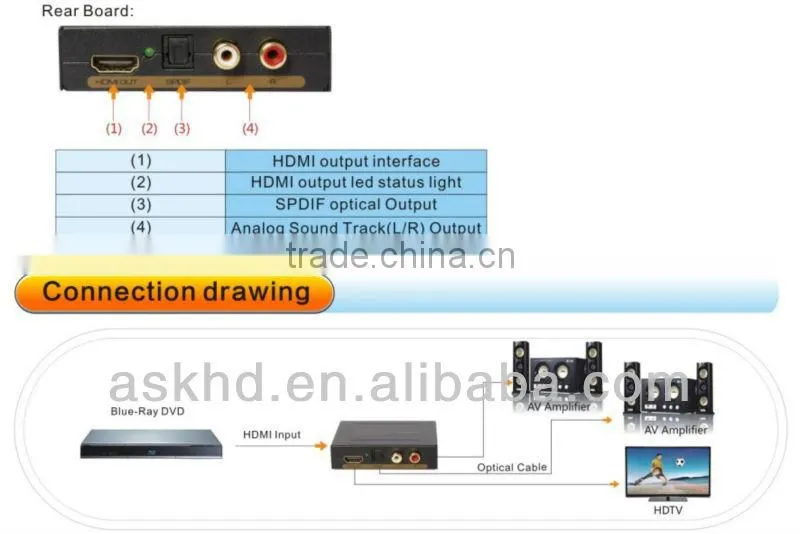

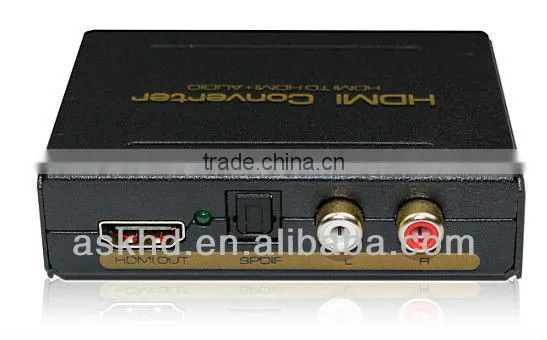

One HDMI Input to One HDMI Output, One SPDIF Audio Output and One RCA R/L Stereo Audio Output Extract Spdif audio + Analog R/L Audio from HDMI
Convert HDMI audio to Optical+R/L Analog Audio from HDMI source

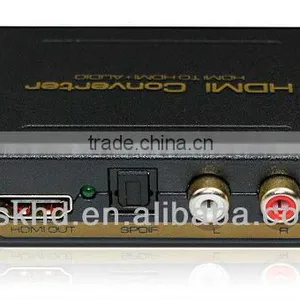

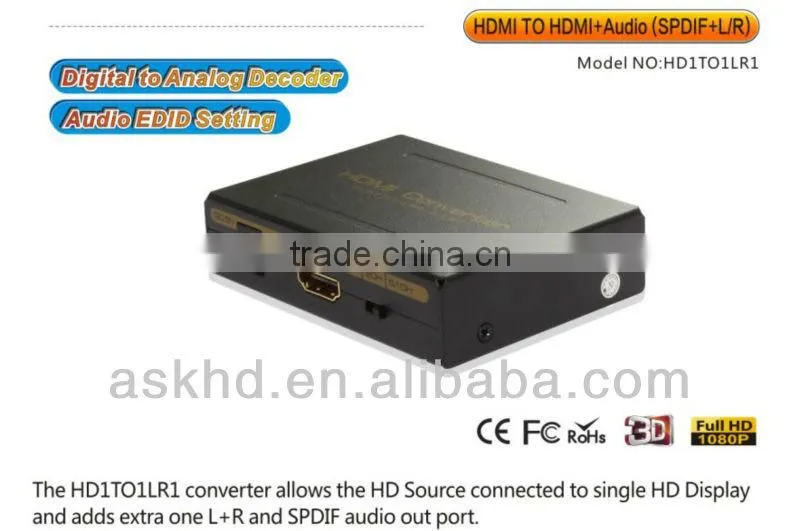

The HD1TO1LR1 converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.

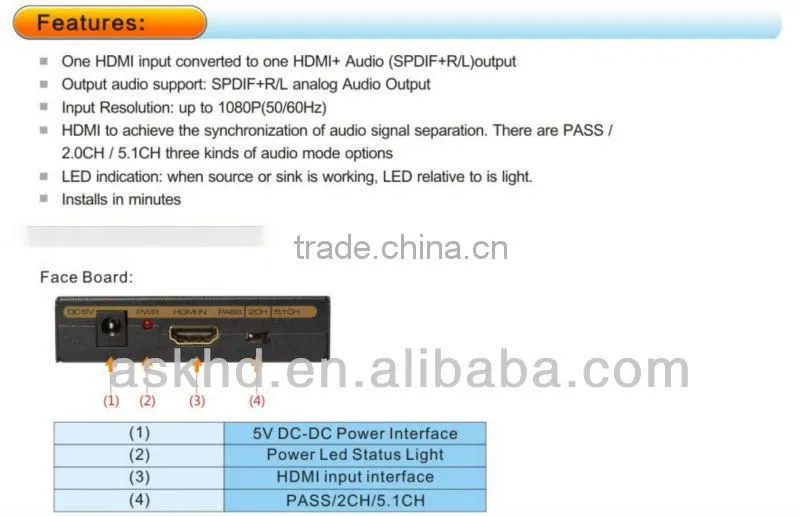

FEATURES
lOne HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
lOutput audio support: SPDIF+R/L analog Audio Output
lInput Resolution: up to 1080P(50/60Hz)
lHDMI to achieve the synchronization of audio signal separation. There are PASS /
2.0CH / 5.1CH three kinds of audio mode options
lLED indication: when source or sink is working, LED relative to is light.
lNo loss of quality
lInstalls in minutes
lNeed DC5V/1A power supply

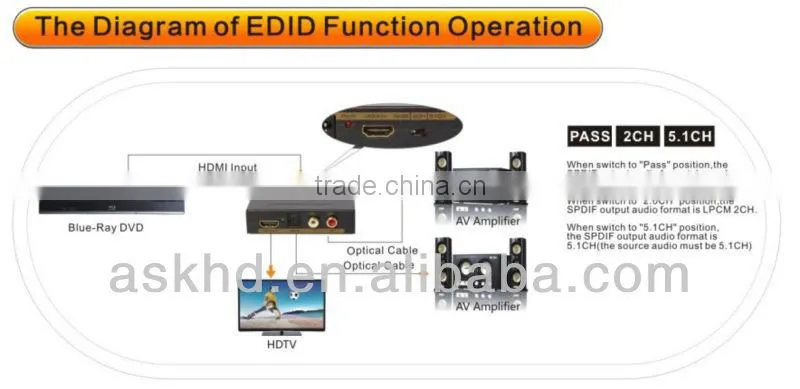

SWITCH:Audio mode switch
PASS: HDMI pass mode. The audio and video from the HDMI output,
SPDIF and L/R no output..
2CH: 2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio.
5.1CH: 5.1 channel mode. The HDMI / SPDIF output 5.1 channel audio, L/R no
output.
