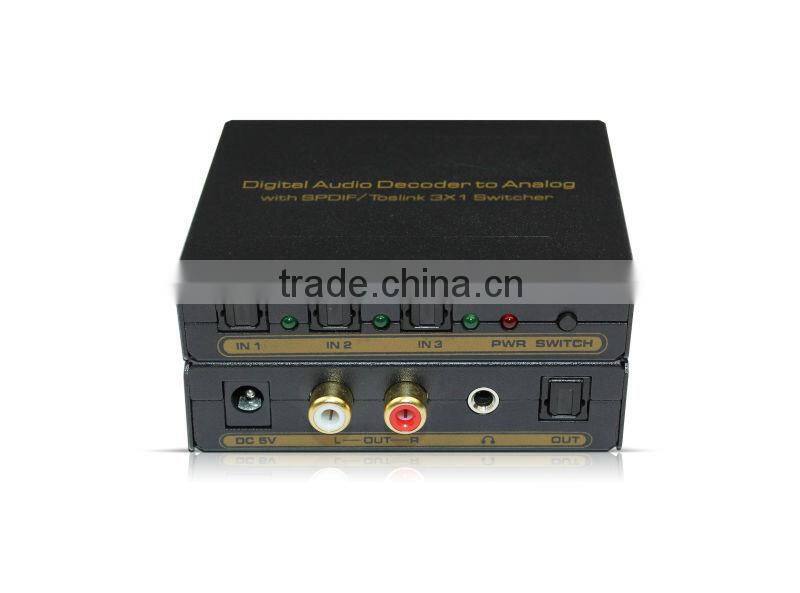

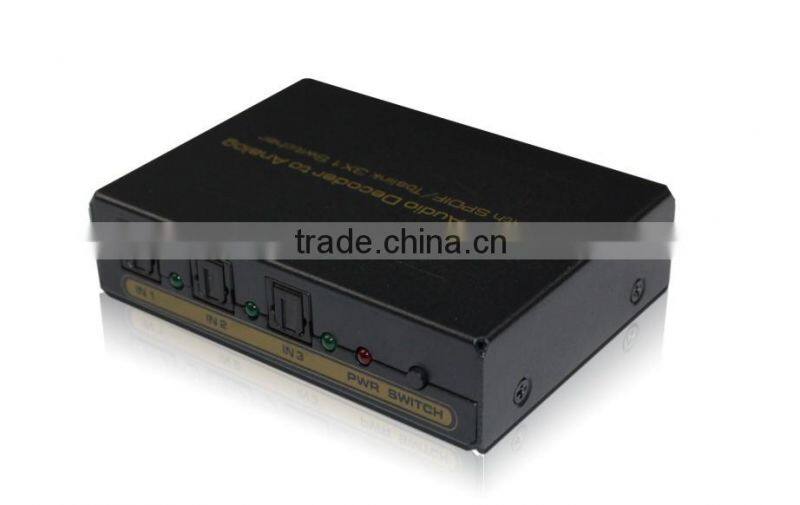

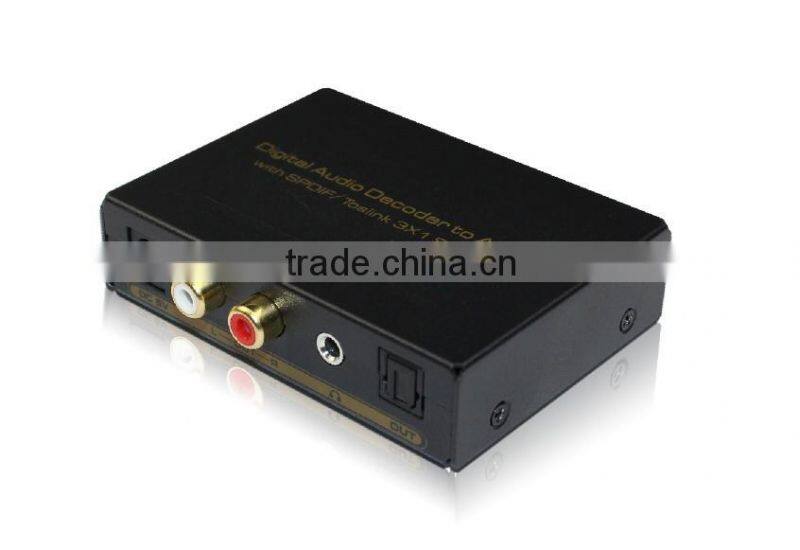

Digital Audio Decoder to Analog With SPDIF/Toslink 3X1 Switcher

Digital Audio Decoder to Analog With SPDIF/Toslink 3X1 Switcher photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ASK
Model Number:
ADCN0001M1
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ASK
Model Number ADCN0001M1
Place of Origin Guangdong, China

Specifications

3-Ports SPDIF/Toslink input, Supports 1-Port SPDIF/Toslink output and L/R analog audio output and one headphone out

FEATURES:

l  3-Ports SPDIF/Toslink input, Supports 1-Port SPDIF/Toslink output and L/R analog audio output and

one headphone output

l  24bit DSP and 96KHZ/24bit DAC

l  Support digital audio formats: Dolby AC3, DTS, THX, HDCD, PCM ETC

l  Automatic identification input digital audio signal format and output stereo analog audio

l  A key switch, easy operation

l  Headphone output, can drive the general 3.5mm earphone

l  High tone quality, low noise

l  Power-off memory

l  DC overvoltage protection

DC5V/1A power adapter

Digital Audio Decoder to Analog With SPDIF/Toslink 3X1 SwitcherDigital Audio Decoder to Analog With SPDIF/Toslink 3X1 SwitcherDigital Audio Decoder to Analog With SPDIF/Toslink 3X1 SwitcherDigital Audio Decoder to Analog With SPDIF/Toslink 3X1 Switcher

SPECIFICATIONS:                                     ADCN0001M1

Support audio format ………………….…….…….….….….DTS/DTS-CD/AC3/HDCD/THX/PCM/LPCM

Digital input level ………………………………………………………………………………0.1~1Volts p-p

L/R output level(1kHz@0dB) ……………………………………………………………………800mV RMS

Headphone output power (1kHz@0dB RL=32) ………………………………………………………30mW

SNR @0dB(CCIR/ARM)…………………………………………………………………………………90dB

Distortion …………………………………………………………………………………………………0.1%

Frequency response ……………………………………………………………………………20Hz~20KHz

Max working current …………………………………………………………….……….…….….…..350mA

Power adapter format Input ……......….….…….…….…….… AC 100V~240V 50HZ/60HZ; DC5V/1A

Operating Temperature range ……..…………….………………………………………………-10 to +55°C

Operating Humidity range ………………………….….……….…………5 to 90%RH (No Condensation)

Dimension (L x W x H) ………………………………….……………………………………85x62x21 (mm)

Weight …….…………………………….………………………………………….………………………148g

 Digital Audio Decoder to Analog With SPDIF/Toslink 3X1 SwitcherDigital Audio Decoder to Analog With SPDIF/Toslink 3X1 SwitcherDigital Audio Decoder to Analog With SPDIF/Toslink 3X1 SwitcherDigital Audio Decoder to Analog With SPDIF/Toslink 3X1 Switcher
