HDMI Surge Protector Screen Protector

HDMI Surge Protector Screen Protector thumbnail-1
HDMI Surge Protector Screen Protector photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ASK
Model Number:
HDEX001M1
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen ASK Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ASK
Model Number HDEX001M1
Place of Origin Guangdong, China

Specifications

Support HDMI 1.4 with 3D,4KX2K and HEAC
Support HDCP
No Need Power Adptor

FEATURES

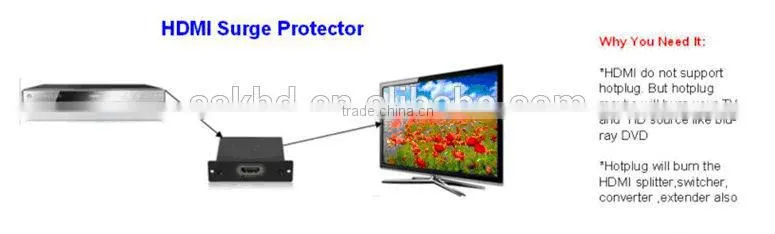

lProtect HDMI input and output for ESD and Lightning Surge

lMeet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).

lMeet IEC 61000-4-4 (EFT) 40A (5/50ns).

lMeet IEC 61000-4-5 (Lightning) 5A (8/20µs).

lSupport HDMI 1.4 with 3D,4KX2K and HEAC.

lSolid-state silicon-avalanche technology.

lSupport HDCP

lNo loss of quality

lInstalls in minutes

lNo Need Power Adptor

 HDMI Surge Protector screen protectorHDMI Surge Protector screen protectorHDMI Surge Protector screen protectorHDMI Surge Protector screen protector

HDMI version………………………………………………….. HDMI 1.4 with 3D ,4Kx2K,HEAC



HDMI resolution …………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i



Support video color format ……………………...….….……..24bit/deep color 30bit,36bit, 48bit



Support audio format……..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)



Max bandwidth………………………………………………..….………………………….340MHz



Max baudrate…………………….………………….……………………………………..10.2Gbps



Input/Output TMDS signal ………….………………………..………... …..0.5~1.5Volts p-p(TTL)



Input/Output DDC signal …………………………………………..……...……… 5Volts p-p (TTL)



Max working current………………………………..……………………………………….....50mA



Operating Temperature range……..…………….………………………………… (-15 to +55°C)



Operating Humidity range………………………….….………..5 to 90%RH (No Condensation)



Dimension (L x W x H)       ……………………………….………………...……43.5x64x16.5 (mm)



Weight…..………………………………………………………..…….…………………..………40g

HDMI Surge Protector screen protectorHDMI Surge Protector screen protectorHDMI Surge Protector screen protectorHDMI Surge Protector screen protector
