HIFI 4x2 HDMI Matrix

Specifications

3D HIFI 1.4V 4x2 HDMI Matrix Audio Separation with Romote Control support MHL function
1.Support 4KX2K resolution
2.SupportA

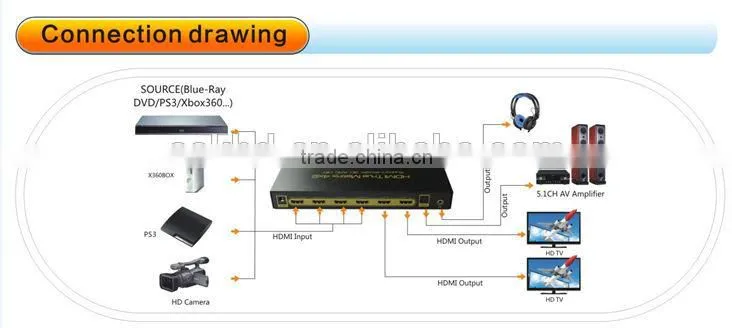

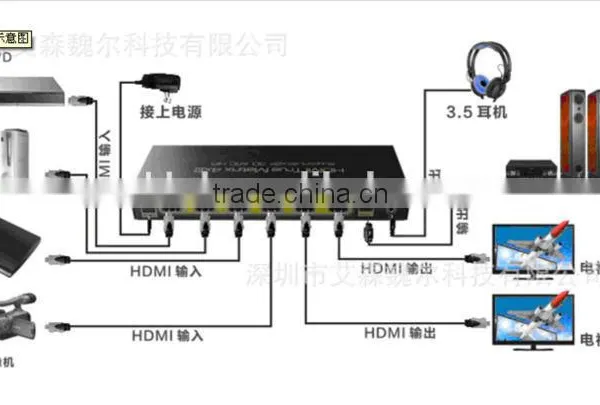

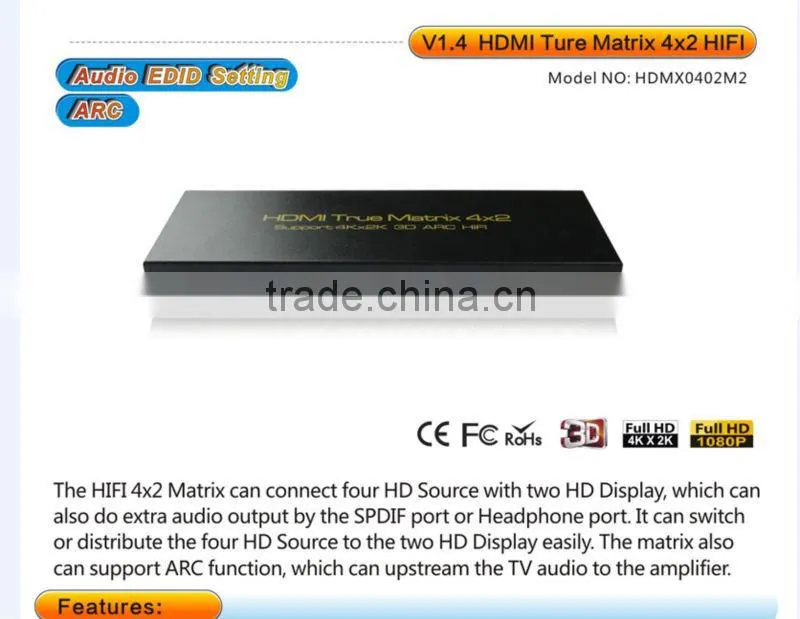

The HIFI 4x2 Matrix can connect four HD Source with two HD Display, which can also do extra audio output by the SPDIF port or Headphone port. It can switch or distribute the four HD Source to the two HD Display easily. The matrix also can support ARC function, which can upstream the TV audio to the amplifier.



FEATURES



lOne HDMI Input support MHL/HDMI double mode input, the other three HDMI input support only HDMI single mode input.



lThe output A support extra audio output by SPDIF port and 3.5mm Headphone Port.



lHDMI to achieve the synchronization of audio signal separation. There are ADV/



2.0CH / 5.1CH three kinds of audio mode options



lSupport  Full HD 1080P, Full 3D



lSupport 4K*2K resolution



lSupport deep color 30bit, 36bit, 48bit



lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC



lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD



lSupport signal retiming



lSupport input up to 15metres AWG24 HDMI standard cable length, output up to 25metres AWG24 cable length



lInputs can be switched with the IR remote control,also can be controlled by two switch buttons.



lMHL port supports the RCP function, it can do control to the smart phone and the switcher by the TV remote.



lMHL/HDMI working in dual mode, can reduce the number of ports



lThe SPDIF audio output format can be chose by pressing the switch key or the remote.



lIt can come back to the default the input 1 status when restarted or reset.

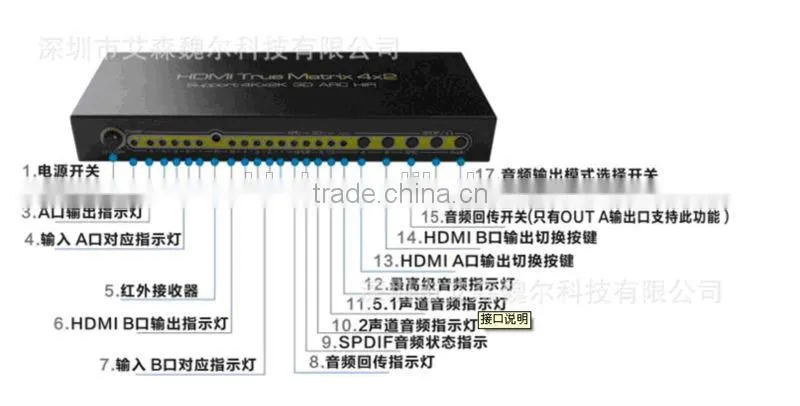

lLed Status Light allow the user to know the working status easily.



lNo loss of quality



lInstalls in minutes



lNeed DC5V/2A power supply
