Specifications
Specifications1. HDMI 1.4v 4x2 HDMI matrix , support 4k*2k resolution, support ARC function
2. With SPDIF port and 3.5mm Hea
Specifications
1. HDMI 1.4v 4x2 HDMI matrix , support 4k*2k resolution, support ARC function
2. With SPDIF port and 3.5mm Headphone output

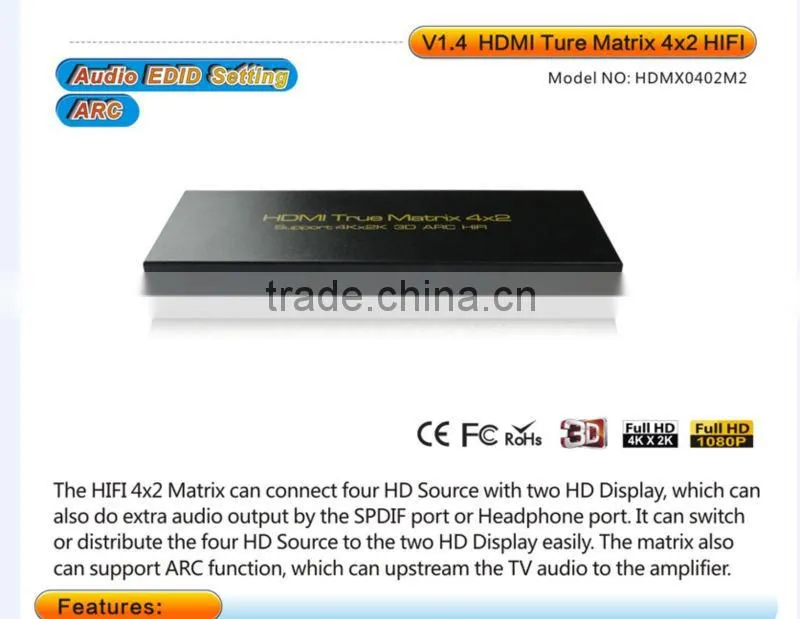

HDMI Matrix Hub 4x2 HDMI 1.4v support 4k*2k and ARC function

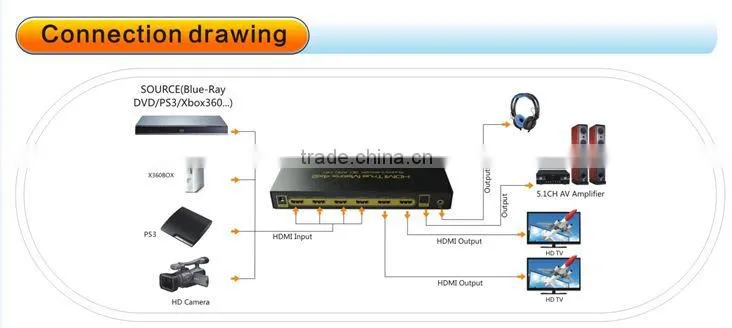

The HIFI 4x2 Matrix can connect four HD Source with two HD Display, which can also do extra audio output by the SPDIF port or Headphone port. It can switch or distribute the four HD Source to the two HD Display easily. The matrix also can support ARC function, which can upstream the TV audio to the amplifier.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES

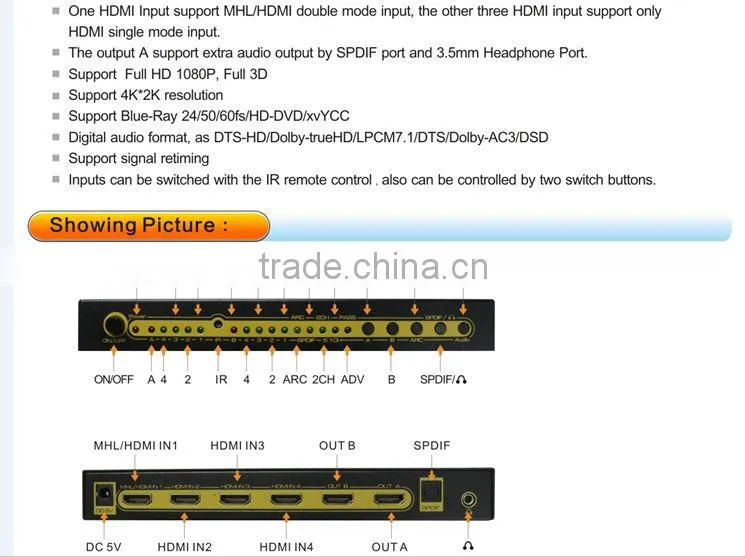

lOne HDMI Input support MHL/HDMI double mode input, the other three HDMI input support only HDMI single mode input.
lThe output A support extra audio output by SPDIF port and 3.5mm Headphone Port.
lHDMI to achieve the synchronization of audio signal separation. There are ADV/
2.0CH / 5.1CH three kinds of audio mode options
lSupport Full HD 1080P, Full 3D
lSupport 4K*2K resolution
lSupport deep color 30bit, 36bit, 48bit
lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
lDigital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lSupport signal retiming
lSupport input up to 15metres AWG24 HDMI standard cable length, output up to 25metres AWG24 cable length
lInputs can be switched with the IR remote control,also can be controlled by two switch buttons.
lMHL port supports the RCP function, it can do control to the smart phone and the switcher by the TV remote.
lMHL/HDMI working in dual mode, can reduce the number of ports
lThe SPDIF audio output format can be chose by pressing the switch key or the remote.
lIt can come back to the default the input 1 status when restarted or reset.
lLed Status Light allow the user to know the working status easily.
lNo loss of quality
lInstalls in minutes
lNeed DC5V/2A power supply

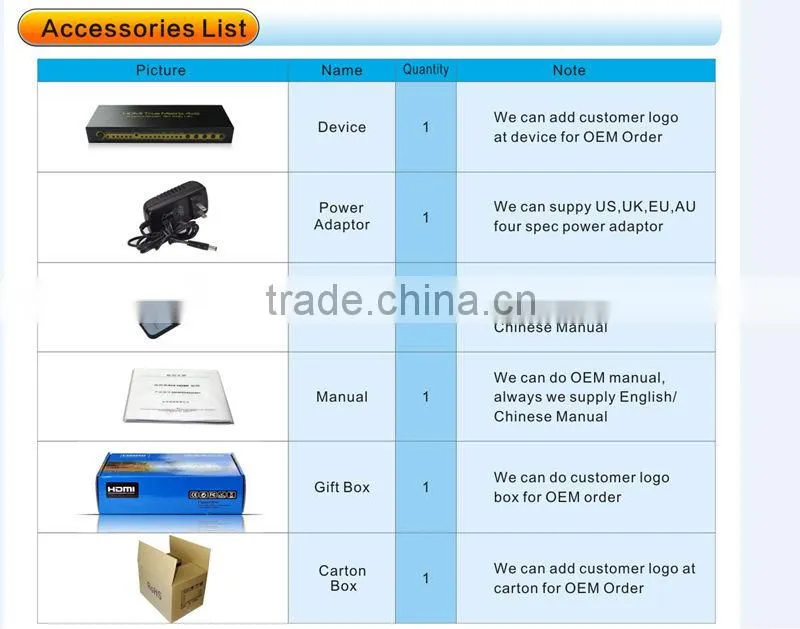

The accessories with the machines lists as picture:
1,5V power adapter 1pcs
2,Remote 1pcs
3,User manual 1pcs
4,MHL-MHL cable 1pcs
