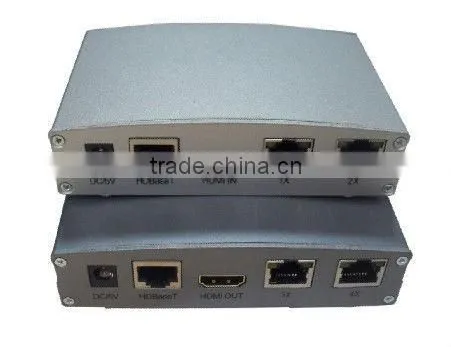

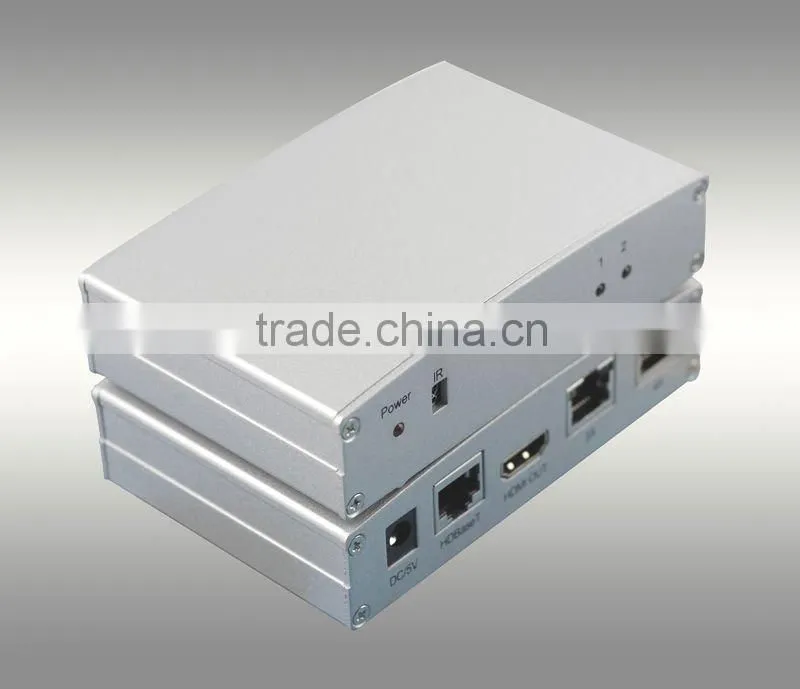

Help CenterHDMI Over Coax Extender 100m, HDMI ir Extender 100m Using a Single Coaxial Cable
Related Products
-
HDMI Over Single Coax Cable Extenders 100M --Best PriceNegotiableMOQ: 50 Sets -
Wholesale New HDMI Surge ProtectorNegotiableMOQ: 50 Sets
-
High Quality Wholesale Mini HDMI Surge Protector Protection Against ESD / Power Surge / 5V PowerNegotiableMOQ: 50 Sets
-
High-quality Factory Made 60M HDMI Extender Over CAT5/6/IPNegotiableMOQ: 30 Sets
-
100m HDMI Extender via Single UTP Cable With HDBaseT TechnologyNegotiableMOQ: 30 Sets
Specifications
HDMI Extender 100M over Coax cable1, Up to 100 meters signal extending
2, Supported 3D, 4K,1080P
HDMI over Coax Extender 100m, HDMI ir Extender 100m using a single coaxial cable
1. Support 3D
2. Support HDCP
3. Support 4K*2K
4. Support 100M Ethernet, Any one of the four Ethernet ports in the receiver and sender can be used as the input of the Ethernet signal, the other Ethernet ports can connect three PC to go surfing.
5. IR Extension Function, you can use the Signal source remote to control the source device at the receiver.
6. Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
7. Support 1080p@60Hz@48bit pixels
8. Video Out Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
9. Support Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
10. Led Status Light: Power Led light go bright, it means the power supply is normal; Led 1 status light go bright, it means there is signal output; Led 2 light go bright, it means the Ethernet cable connection between the sender and receiver is ok.
11. Use standard HDMI Cable and Ethernet Cable,
12. No loss of Signal
13. Easy Operation and Installation
14. With 5V/2A Power Adaptor
Length of CAT-6 cable between Rx and TX…………Up to 100 meters
HDMI Input………………………………………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input………………………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output……………………………………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output……………………………LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………340MHz
Max baud rate……………………………………………10.2Gbps
Input Video signal ………………………………………0.5~1.5Volts p-p
Output DDC signal ………………………………………5Volts p-p (TT1L)
Input HDMI cable distance……………………………≤5mAWG26 HDMI standard cable
Output HDMI cable distance………………………………≤10mAWG26 HDMI standard cable
Max working current…………………………………………1000mA
Power adapter format……………………………………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range…………………………………(-15 to +55°C)
Operating Humidity range…………………………………5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………116x78x30(mm)(RX/TX)
Weight……………………………………………………………420g
HDMI over Coax Extender 100m, HDMI ir Extender 100m using a single coaxial cable
HDMI over Coax Extender 100m, HDMI ir Extender 100m using a single coaxial cable
