Specifications
1. HDMI 1.4V, Support full 3D,4k*2k2. Use HD-BaseT technology
3.Extender HDMI signal to 100 Meter distance

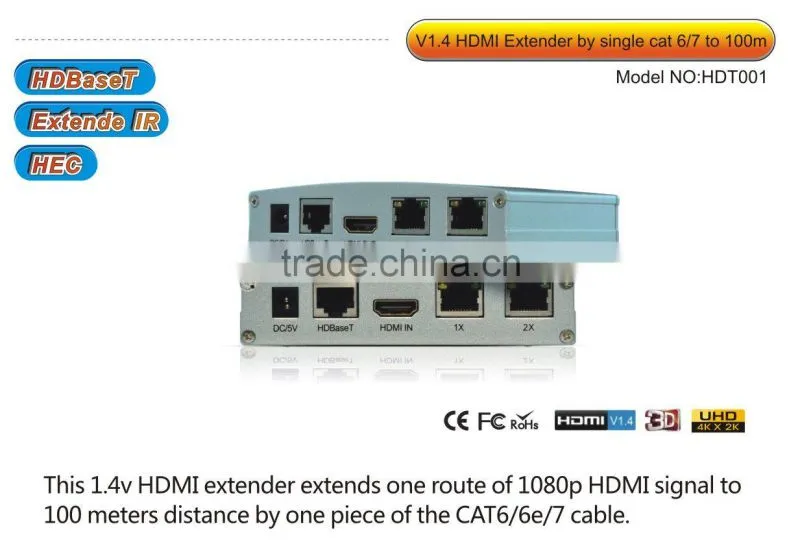

4K 100m HDMI extender by single CAT(hdbaset)
The HDT001 can turn the HDMI Signal,Ethernet signal and Remote Control Signal into HDBaseT signal and transmit it to the Ethernet cable by cat5e/6(recommended to use cat6). The receiver changes the received HDBaseT signal into each own original signal ,expands multi Ethernet port that can support 100M bandwidth Ethernet signal, and guarantees the no loss transmission of the signal. The extender distance can reach up to 100 meter.

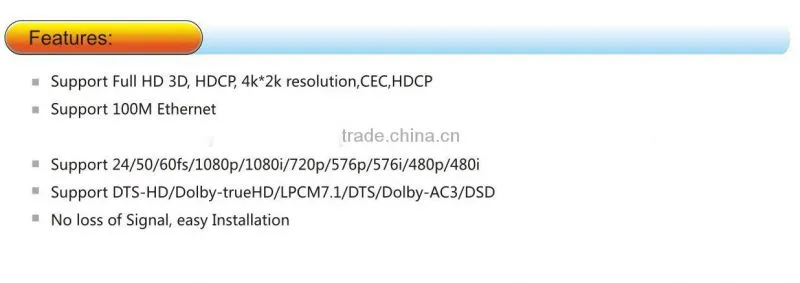

Features:
1. Support 3D / HDCP /CEC
2. Video Input Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
3. Support 1080p@60Hz@48bit pixels
4. Through one cat5e or cat6 to send the 10.2Gbps HDMI Signal and 100Mbps Ethernet signal,the distance can reach 100m.
5. Video Out Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
6. Support Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
7.IR Extension Function, you can use the Signal source remote to control the source device at the receiver

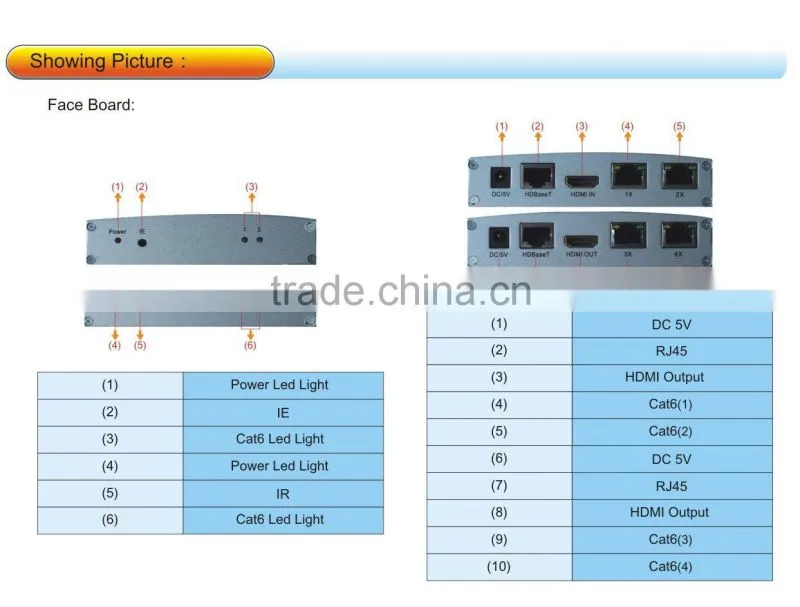

8. Led Status Light:When the power or extender is working, the related led light will go bright
9.Use standard HDMI Cable and Ethernet Cable
