Help CenterFull 1080P HDMI Extender, 200ft Over Cat With EDID Switch
Related Products
-
60m HDMI Extender Over Cat5e & Cat6e CableUS$ 22 - 25MOQ: 30 Pieces -
4K 200ft Single Cat5e/6e HDMI Extender , IR ControlNegotiableMOQ: 20 Pieces
-
3D HDBaseT Extender Single Cat5e/6/7 100m Support IRNegotiableMOQ: 30 Pieces
-
Hdmi Extender 120m Over Tcp ipNegotiableMOQ: 20 Pieces
-
Powerless HDMI Repeater 40 Meter Supports 1080P 30MNegotiableMOQ: 50 Sets
Specifications
1.HDMI extender by single cat5e or 62.Need 2 pcs of 5V 2A power adaptor
3.HDMI 1.3,1080P
4.CE,FCC,ROHS
5.OEM,ODM

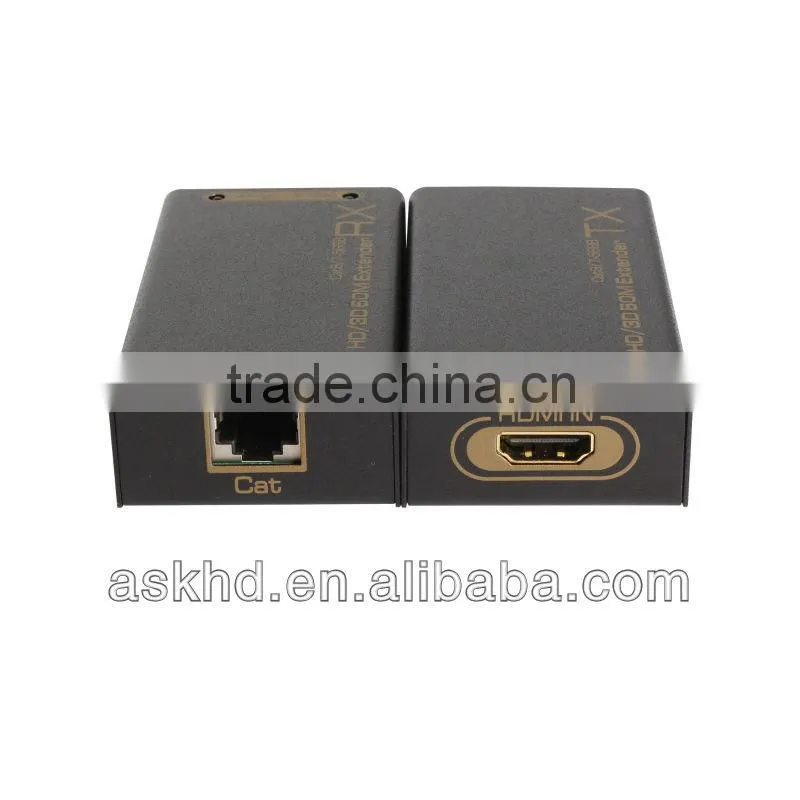

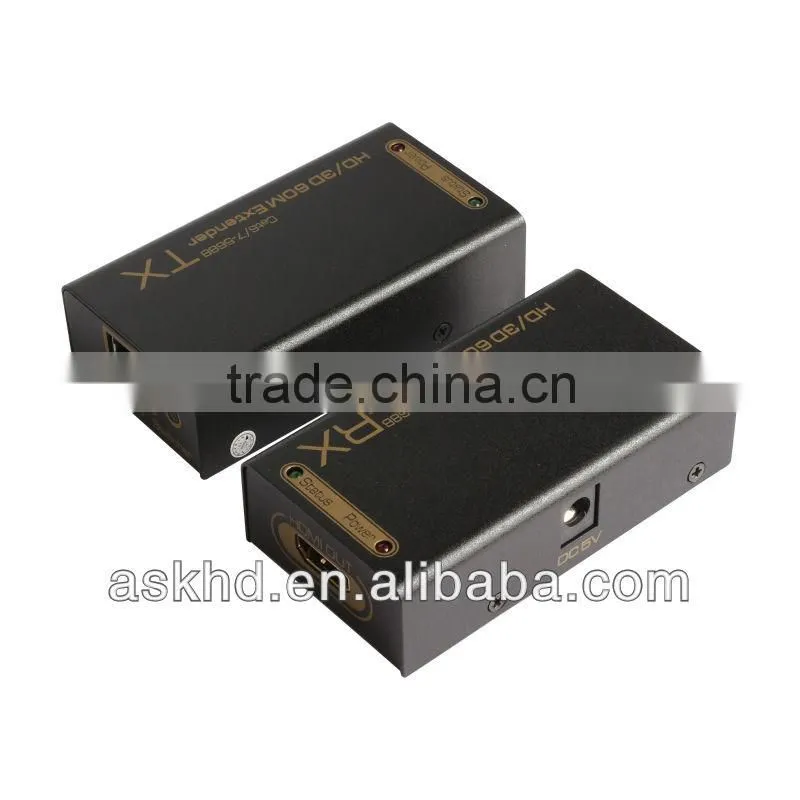

The HDEX002M1 Extender use Single cat-5E or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
l Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Signal transmission: use one cat5e/6(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 60m.
l Support 3D
l Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l LED indication: when power is supplied or device is working, LED relative to is light.
l Support up to 60 meters AWG26 cable length between extender and source & sink device
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply
The accessories with the machines lists as picture:
1,Two Pieces of 5V Power Adapter
2,one pc of Manual
Operating and Connecting:
- Connect one HDMI cable up to 15 meters between source device and TX Extender
- Connect one HDMI cable up to 15 meters between sink device and RX Extender
- use one cat5e/6(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 60m.
- Connect the power adaptor to the sender and receiver.
SPECIFICATIONS: HDEX002M1
Length of CAT-6 cable between Rx and TX…. .Up to 60 meters
HDMI Input….. 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………. DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output….. 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output ......LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………… 225MHz
Max baud rate……………… 6.75Gbps
Input Video signal …………. 0.5~1.5Volts p-p
Output DDC signal ………………………………………………………………… 5Volts p-p (TT1L)
Input/Output HDMI cable distance……… ..≤15m AWG26 HDMI standard cable
Max working current………………………………………………… ..600mA
Power adapter format…… Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)
Operating Temperature range…… (-15 to +55°C)
Operating Humidity range……………………… .5 to 90%RH (No Condensation)
Dimension (L x W x H)………………………………. 82x44x22 (mm) (RX/TX)
Weight….. 195g
