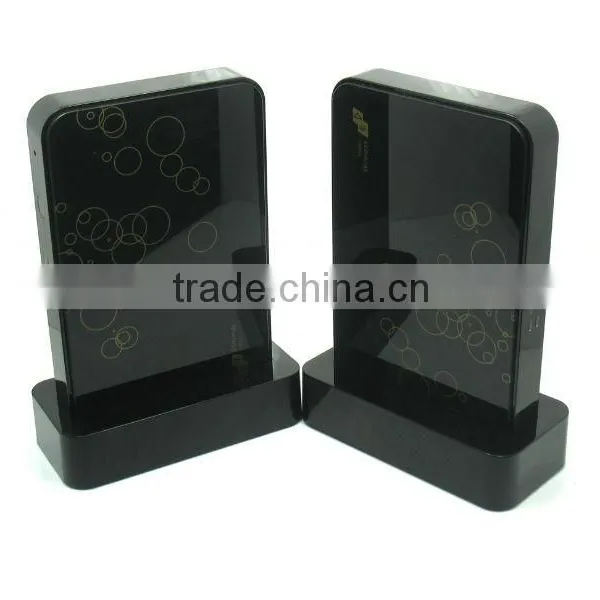

Help CenterHDMI WiFI Extender
Related Products
Specifications
1.Reach 40m2.one sender ,one receiver
3.1080p/60HZ HDMI V1.3
4.no compression video format
5.40M, 1080P: HDMI V1.3
Brief Introduction
Thank you for choosing our devices of the high-definition (HD) wireless audio/video (AV)
transmission system. The device can be wirelessly connected from an HD source device
to an HD display device such as the TV, projector, HD disc player, game machine,
recorder, and set-top-box at home.
Technical Specifications
Video formats supported
TV 1080p, 1080i, 720p, 576p,480p
PC: VGA(640X480), SVGA(800X600),
XGA(1024X768), SXGA(1280X1024)
Audio formats supported PCM,DTS, DOCBY DIGITAL
RF communication system MIMO
Modulation mode OFDM
Maximum transmission power 12dBm
Image transmission distance ≥30m
Image delay <1 ms
Transmission/receiving
antenna mode
Operating power supply 100-240V AC mains, 5V 2A DC power
Storage temperature -20~80OC
Storage temperature -10~50 C
Cautions
*The apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
*Turn off the Camera/Monitor if the system is not in use. The adapter is used as the
disconnect device from the mains. The adapter shall remain readily operable.
*The Camera/Monitor can only be completely disconnected from the mains by
unplugging the adapter.
*Do not cut the DC power cable of the apparatus to fit with another power source.
*Attention should be drawn to the environment aspects of battery disposal.
