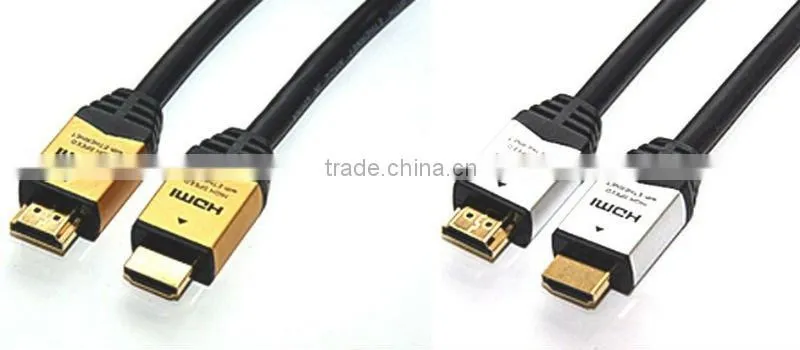

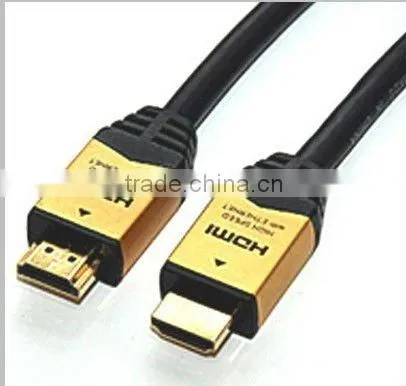

Help CenterHDMI CABLE 1.4
Related Products
Specifications
OD=7.3MM/Aliumiumhdmi 1.4v gold plated connectors
black moulding/PE bag packing
support 3D with ethernet and high speed
1.gold plator
2.32/30/28/ted connectors 26/24 AWG
3.L=1M,1.5M,3M,5M,-----50M(optional)
4.ROHS,UL,ATC
5.HDMI Cable 1.4 3D
Specification:
HDMI CABLE,VGA CABLE,DVI CABLE
1) gold plated connectors
2) 32/30/28/26/24 AWG
3) L=1M,1.5M,3M,5M,-----50M(optional)
4) OD:7.3MM,-8.5MM,
4) ROHS,UL,ATC
5) Supports 4k*2k
6) color:Black/White/Blue/Red/Gray... ...(optional)
70 ferrite cores optional
8) cable with protective sleeve which made of nylon or cotton(optional)
Features:
1)24K gold-plated connectors ensure superior signal transfer and lifetime of maximum performance.
2)4 screened twisted pairs of OFC stranded conductors with foam PE insulation layer, improve the high frequency response for wide-bandwidth and efficient signal transfer
3)AL foil wrapped around each twisted pair. AL foil wrapped around the whole inner cores and tinned copper braid shielding, treble screened to provide complete immunity to environmental EMI and RFI
Electrical Features:
1)100% Open & Short Tests;
2) Hi-pot: DC 300v 10ms
3) Insulation Resistance: 10m ohm min
4) Contact Resistance: 3max
5)RoHS approval and support 1080P.
Packaging
1) Blister Packing OR PE bag (optional)
2) OEM design logo available;
3)Cable Length within 1.5m
4) Carton size:60*36*26
5) ≤150 Pieces /Carton
