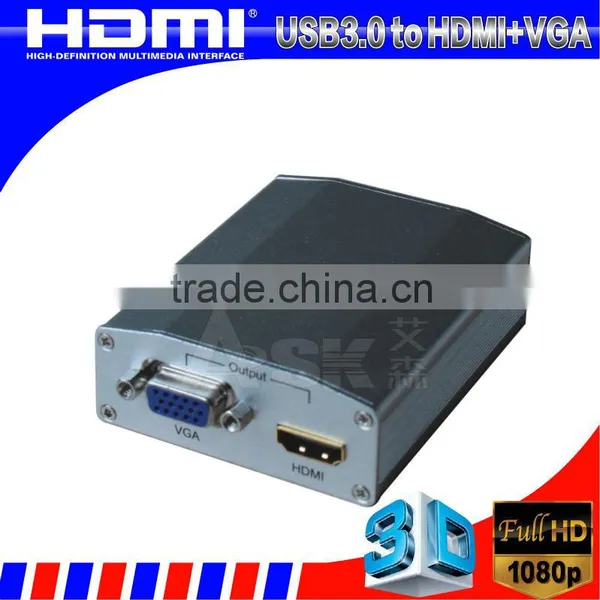

usb 3.0 to hdmi converter

Specifications

usb 3.0 to hdmi converter:
1.Support USB Support up to 1920x1080
2.USB Output cable distance under 5m USB standard cable

 FEATURES

l Support USB input for PC or notebook

l Support Video Output  HDMI Signal, VGA Signal

l Compliant With USB 3.0

l Compliant With USD 2.0

l Compliant With HDMI and VGA Standard

l Supported Function  1.Primary 2.Extended 3.Mirror

l HDMI Output: support up to 1920*1080 resolution and same format as the input signal

l HDMI Output Resolution Support480I,576I,480P,576P,720P,1080I,and 1080p

l Support  OS for Windows® XP and Windows® Multi Point Server 2010

l Support CRT, LCD and Projector Display.



SPECIFICATIONS                                HDT003

 USB Input…..……………..……………………………..………............……Support USB2.0/3.0

HDMI resolution ………………………….…... Support up to 1920x1080, same format as input

VGA Output format………….………………........................ VGA,SVGA,XGA,SXGA,and UXGA

Max transmission bandwidth…….…………………….……………………………………5.0Gbps

Output DDC signal ………………………………………………………………… 5Volts p-p (TTL)

USB Output cable distance………………….………..…………………≤5m USB standard cable

HDM Output cable distance…………...………………….. ≤10m AWG26 HDMI standard cable

Max working current…………………………………….......………………………………...400mA





Dimension (L x W x H)     ………………………….……..….….……..……………90X70X33 (mm)





Operating and Connecting

1. To use one USB cable to connect the USB Port of PC or Notebook with the USB Input port of the converter.
2. Connect HDMI from monitor or projector into Converter output
