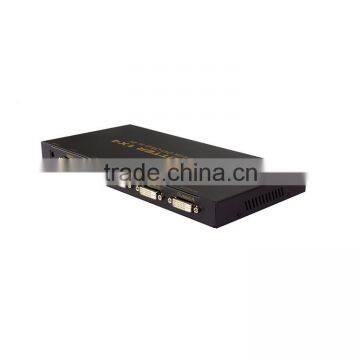

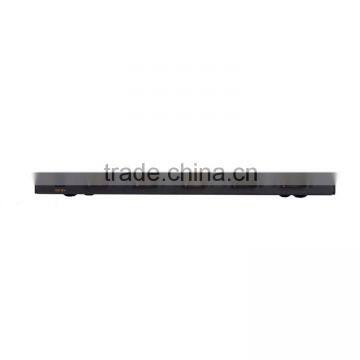

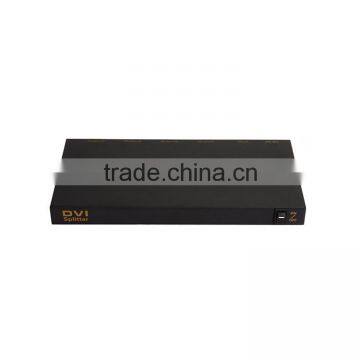

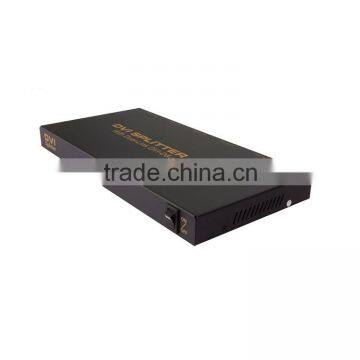

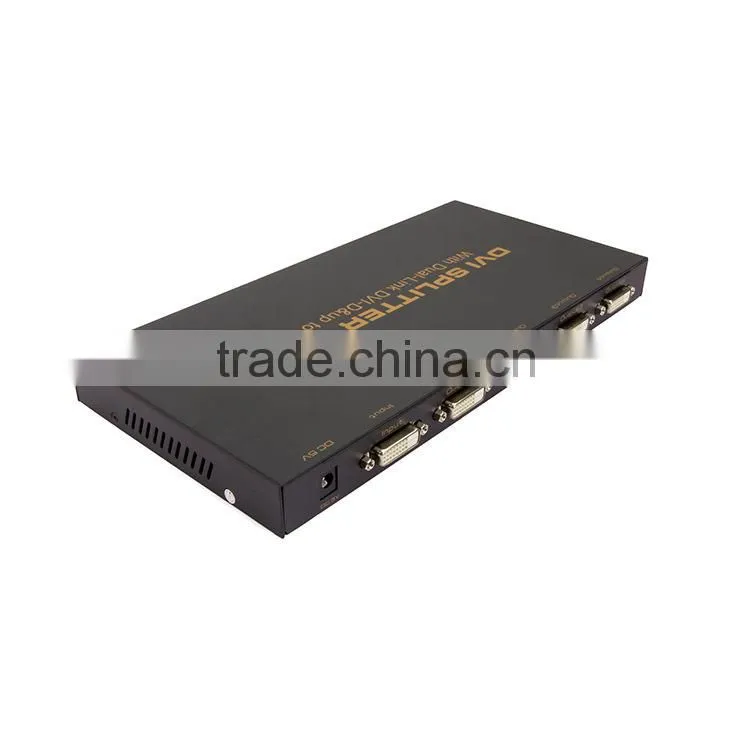

DVI-D Splitter with HDCP - Video splitter 4 x DVI desktop Output
Dual link DVI-D & up to 4K
The DVI splitter can allow multiple video display units connected to one DVI Source and display the same HD picture at the same time. So that you can share one signal source, greatly reduce the cost of system.
FEATURES:
l 1X DVI-D input and 2/4/8/16X DVI-D output
l Support dual Link DVI-D signal transmission, resolution up to 3840X2160@30Hz
l Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible with the HDMI 1080P standard
l Support for long distance signal transmission
l Installs in minutes, No loss of quality
l Supports wide range voltage DC input (DC5V~12V)
PACKAGE CONTENTS:
1. Main unit 1pcs
2. AC power adapter 1pcs
3. User manual 1pcs
OPERATIONG AND CONNECTION:
- Connect one dual link DVI-D cable from a DVI signal source into the input port of splitter.
- Connect dual link DVI-D cables from TV/Monitor into the DVI output ports of splitter.
- If the resolution is higher than 1920X1080@60Hz, you must use a dual link DVI-D cables, the signal source and the display must be able to support this resolution.
- Connect DC plug of AC adapter to DC jack and inserted into the power socket.
SPECIFICATIONS:
DVI interface type ………………………….................................................................... Dual link DVI-D
Single link input/output resolution …………………………...............................up to 1920x1080@60Hz
Dual link input/output resolution …………………………..................................up to 3840x2160@30Hz
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
Max signal bandwidth………………………………………………………….……………………..340MHz
Max baud rate…………………….………………….………………….………………3.4Gbps Serial Link
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
DVI input cable distance…………………………………………≤10m AWM 20276 DVI standard cable
DVI output cable distance………………………………………..≤10m AWM 20276 DVI standard cable
Max working current ………………………………………….……….…….…….0.8A/5V (DVISP002M1)
Max working current ………………………………………….……….…….….....1.2A/5V (DVISP004M1)
Max working current ………………………………………….……….…….…...1.5A/12V (DVISP008M1)
Max working current ………………………………………….……….…….…...2.5A/12V (DVISP016M1)
Power adapter …………………AC 100V~240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)
Power adapter ……………….AC 100V~240V 50HZ/60Hz, DC12V/3A(DVISP008M1/DVISP016M1)
Operating Temperature range ……..…………….……………………………………………. -5 to +45℃
Storage Temperature range……………………………………………………………………. -15 to +55℃
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………. 179x66x28mm (DVISP002M1)
Case Dimension (L x W x H) ………………………………….………….277x136x27mm (DVISP004M1)
Case Dimension (L x W x H) ………………………………….………….482x180x44mm (DVISP008M1)
Case Dimension (L x W x H) ………………………………….………….482x180x66mm (DVISP016M1)
Weight …….…………………………….………………………………………….…...370g (DVISP002M1)
Weight …….…………………………….………………………………………….…...800g (DVISP004M1)
Weight …….…………………………….………………………………………….…..1.5kg (DVISP008M1)
Weight …….…………………………….…………………………………………...1.8kg (DVISP016M1)
