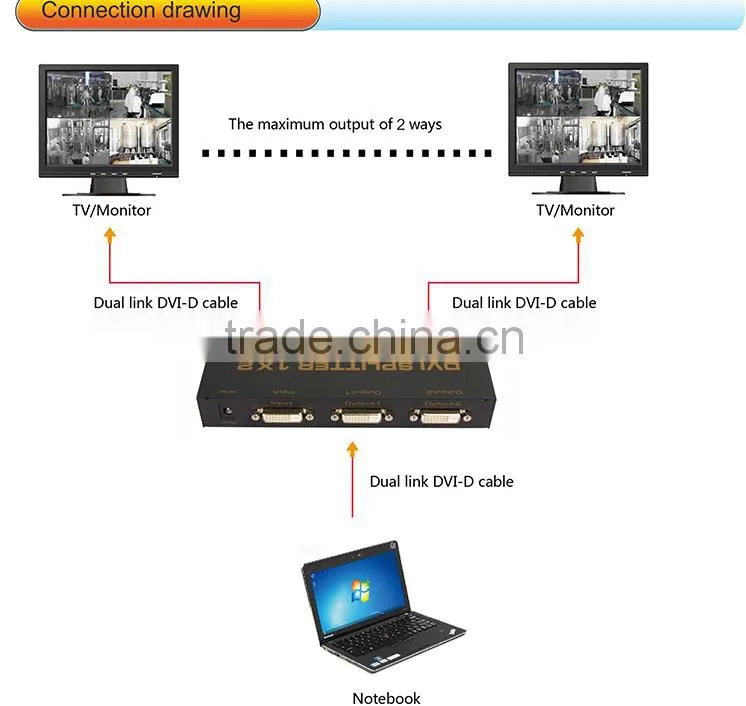

Split 1 DVI-D output for display on 2 DVI-D compatible monitors
*1X DVI-D input and 2/4/8/16X DVI-D output
*Support dual Link DVI-D signal transmission, resolution up to 3840X2160@30Hz
*Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible with the HDMI 1080P standard
*Support for long distance signal transmission
*Installs in minutes, No loss of quality
*Supports wide range voltage DC input (DC5V~12V)
SPECIFICATIONS:
DVI interface type ………………… Dual link DVI-D
Single link input/output resolution ………………up to 1920x1080@60Hz
Dual link input/output resolution ………………up to 3840x2160@30Hz
Support video color format …………………24bit/deep color 30bit,36bit
Max signal bandwidth………………340MHz
Max baud rate…………………3.4Gbps Serial Link
Input/Output TMDS signal ……………………0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………5Volts p-p (TTL)
DVI input cable distance…………………………≤10m AWM 20276 DVI standard cable
DVI output cable distance………………………≤10m AWM 20276 DVI standard cable
Max working current ………………………0.8A/5V (DVISP002M1)
Power adapter …………………AC 100V~240V 50HZ/60Hz, DC5V/2A
Operating Temperature range …………… -5 to +45C
Storage Temperature range……………………-15 to +55C
Operating Humidity range ………………………10 to 90%RH (No Condensation)
Storage Humidity range…………………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ……………………………179x66x28mm
Weight ……................370g

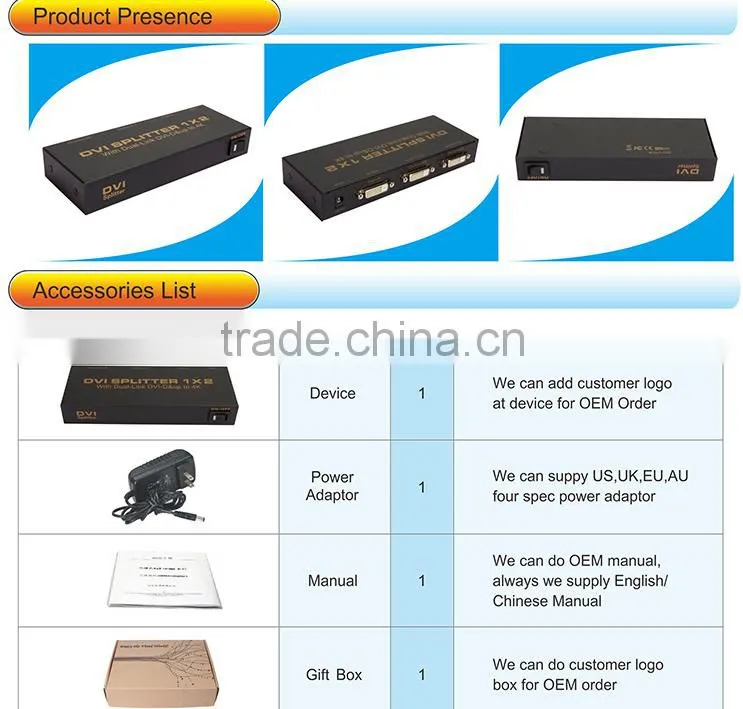

Package list:
1. DVI splitter 1x2 1pc
2. AC power adapter 1pc
3. User manual 1pc
