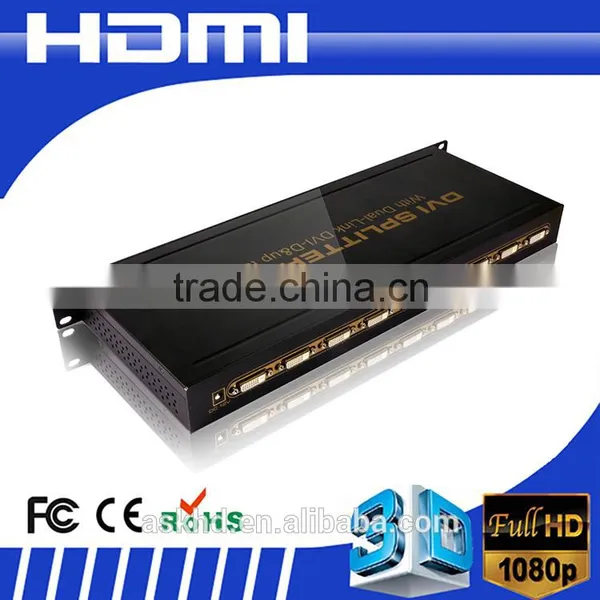

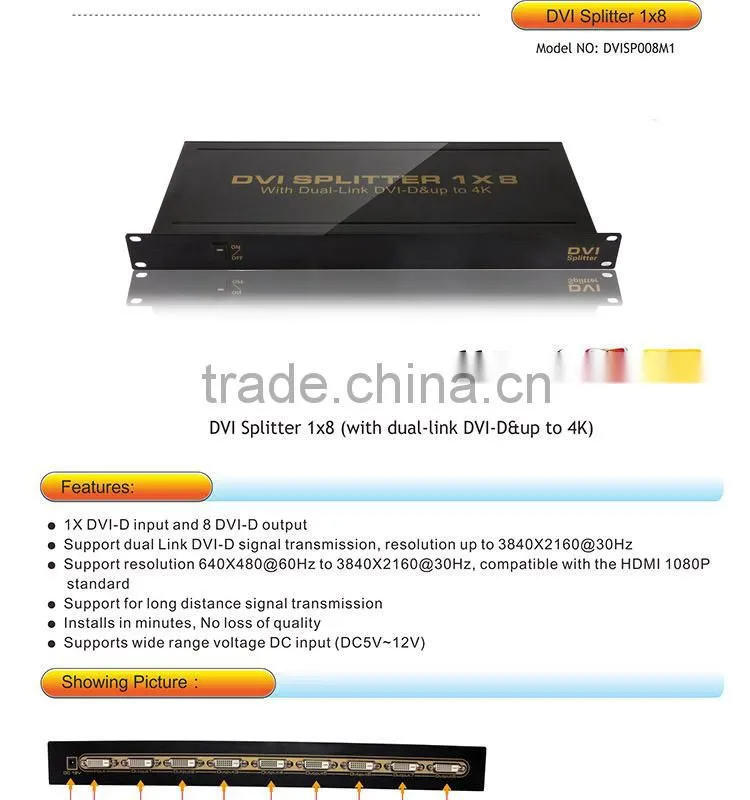

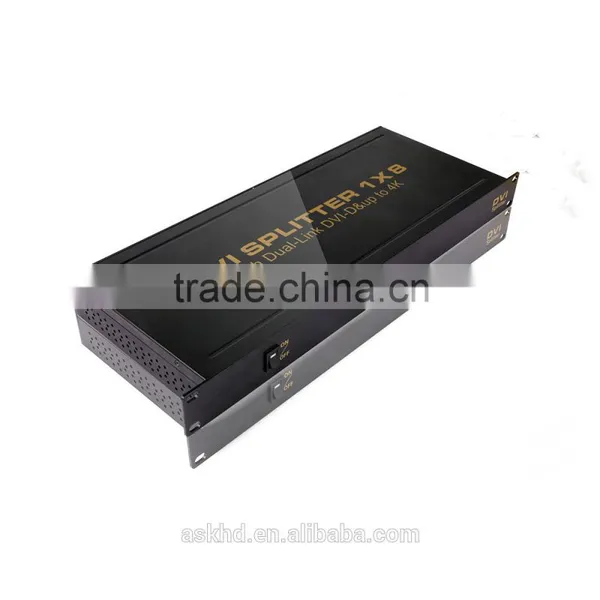

DVI splitter 1x8 dual-link 1 to 8 dvi splitter support 4K
SPECIFICATIONS:
DVI interface type ………………………….................................................................... Dual link DVI-D
Single link input/output resolution …………………………...............................up to 1920x1080@60Hz
Dual link input/output resolution …………………………..................................up to 3840x2160@30Hz
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
Max signal bandwidth………………………………………………………….……………………..340MHz
Max baud rate…………………….………………….………………….………………3.4Gbps Serial Link
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
DVI input cable distance…………………………………………≤10m AWM 20276 DVI standard cable
DVI output cable distance………………………………………..≤10m AWM 20276 DVI standard cable
Max working current ………………………………………….……….…….…...1.5A/12V (DVISP008M1)
Power adapter ……………….AC 100V~240V 50HZ/60Hz, DC12V/3A(DVISP008M1/DVISP016M1)
Operating Temperature range ……..…………….……………………………………………. -5 to +45℃
Storage Temperature range……………………………………………………………………. -15 to +55℃
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….………….482x180x44mm (DVISP008M1)
Weight …….…………………………….………………………………………….…..1.5kg (DVISP008M1)
