Specifications
1.Material:uhmwpe2.Reliable quality ISO certificated
3.Reasonable price
4.Easy installation
5.Long life-span

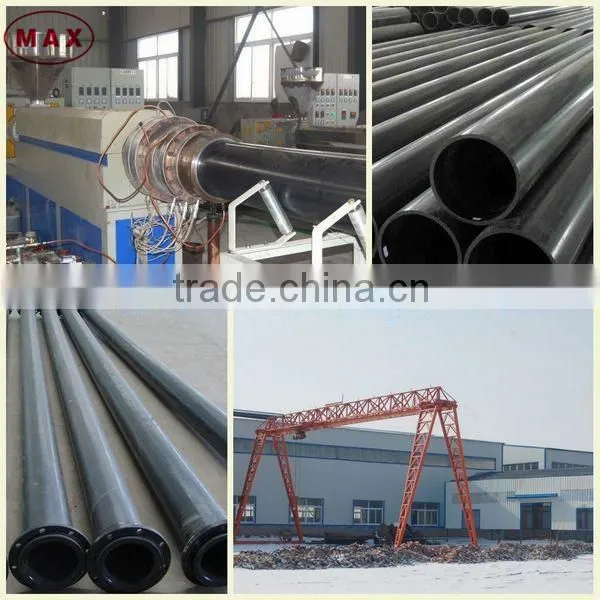

Wear-resistance anticorrosive UHMWPE tube/tubing/pipe/pipeline used in mining
Production introduction:
Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 2 million viscosity-average molecular weight, under the polymerization of ethylene, butadiene monomer in the catalyst.
Ultrahigh molecular weight polyethylene pipe has the superior performance such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, eminent self lubricating, antiadhesion,the unique low temperature resistance, good chemical stability and so on.
Product advantages:
4. Good self-lubrication;
5. The unique resistance to low temperature;
Product specification:
| Diameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |
Product application:

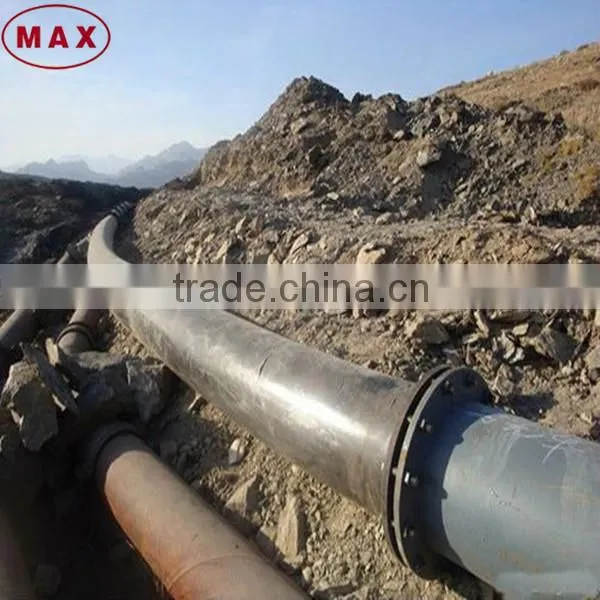

1. Mine & Metallurgy industry: Coal/Ore/Nonferrous metal mine tailings, slurry and rock delivery
2. Food industry: grain & flour transport
3. Dredge: slurry & sand dredging
4. Chemical industry: mud and corrosive medium with slag
5. Water Disposal
6. Coal industry: pulverized coal waste and coal-water slurry
7. Sea & River engineering: sea water desalinization, dredging
8. Oil & Gas, petroleum transport
