High abrasion resistance dredge uhmwpe pipe for transport sand,mud in river
1.Production introduction:
Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 2.5 million viscosity-average molecular weight, under the polymerization of ethylene, butadiene monomer in the catalyst.
Ultrahigh molecular weight polyethylene pipe has the superior performance such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, eminent self lubricating, antiadhesion,the unique low temperature resistance, good chemical stability and so on.
2.Product specification:
| Diameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |
3.Characteristics of UHMWPE Pipe For Mining/Dredging Use
1. Outstanding impact strength even at very low temperature.
2. Excellent sliding abrasion resistance, wear strength several times as large as steel.
3. Very low coefficient of friction.
4. Nonstick, self-lubrication properties.
5. Good chemical resistance.
6. Excellent anti-aging.
7. Hygienic and nontoxic
8. Lightweight.
9. Hydrophobic, energy absorption and sound-dampening properties.
10.Besides, UHMWPE pipe can absorb energy, absorb noise, It is UV Resistant and can be colored.
4.Product application:
1. Mine & Metallurgy industry: Coal/Ore/Nonferrous metal mine tailings, slurry and rock delivery
2. Food industry: grain & flour transport
3. Dredge: slurry & sand dredging
4. Chemical industry: mud and corrosive medium with slag
5. Water Disposal
6. Coal industry: pulverized coal waste and coal-water slurry
7. Sea & River engineering: sea water desalinization, dredging
8. Oil & Gas, petroleum transport

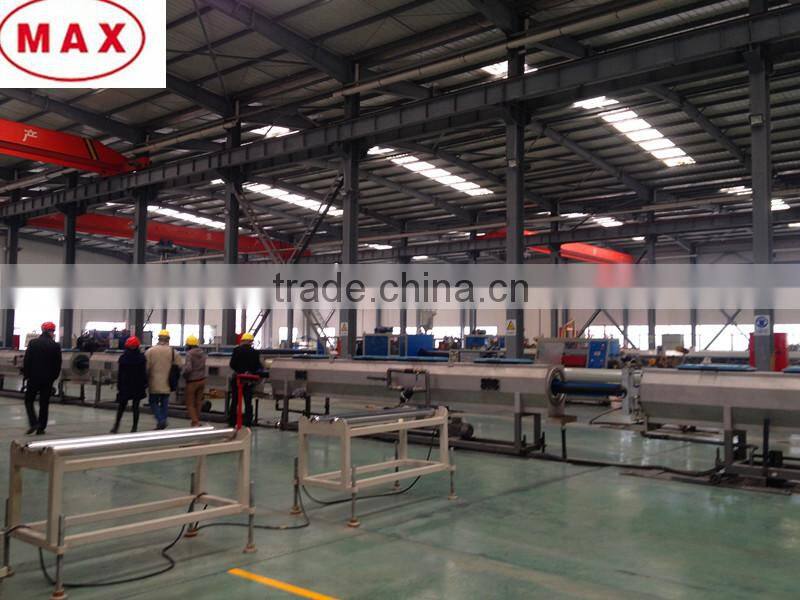

5.Our factory:

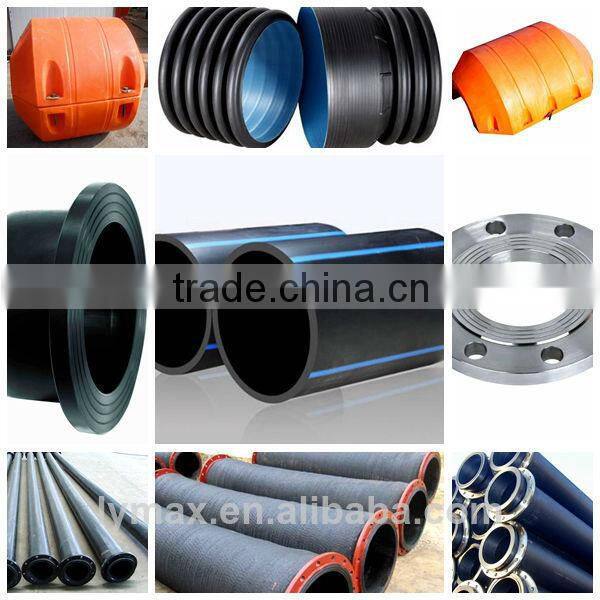

6.Our main products:
