Home > Packaging & Printing > Package & Conveyance > Packaging Tubes > UHMWPE Sand Mud Slurry Dredging Pipe
US$ 2 - 200
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
UHMWPE PIPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price UHMWPE Pipes From ChinaUS$ 2 - 200MOQ: 100 Meters -
UHMW Pipe / UHMWPE Tubing for Mine IndustryUS$ 2.5 - 225MOQ: 100 Meters
-
Chinese Supplier Prices of UHMWPE Tube for Sand SuctionUS$ 2.5 - 225MOQ: 100 Meters
-
Polyethylene Plastic Impact Resistant Uhmw PipeUS$ 2 - 200MOQ: 100 Meters
-
Factory Price High Quality Plastic Tubes Black Uhmw PipeUS$ 2 - 200MOQ: 100 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
UHMWPE PIPE
Material
Other, UHMWPE powder
Specification
65mm-800mm
Length
6m, 12m or as required
Thickness
8mm-38mm
Standard
GB Standard
What is UHMWPE:
Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 2 million viscosity-average molecular weight, under the polymerization of ethylene, butadiene monomer in the catalyst.
UHMWPE pipe features:
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.
Application Areas of UHMWPE Pipe:
UHMWPE pipe is widely used in metallurgical mines, electric power, petroleum, natural gas, textiles, paper making, food, chemical industry, machinery, electrical and other industries.
Main characteristics of UHMWPE Mine Pipe:
1. Extremely high wear resistance;
2. Very high impact resistance;
3. Corrosion resistance;
4. Good self-lubrication;
5. The unique resistance to low temperature;
6. Not easy to form dirt;
7. Long life-span;
8. Easy installation.
UHMWPE Slurry Pipe Advantages:
UHMWPE Slurry Pipe Advantages:
1.Extremely High Wear Resistance
2. High Impact Resistant
3.High Corrosion Resistant
4.Good Self-Lubrication
5. High Flow-Rate
6.Resistant to Scale and Scale Build up
7.Unique Resistance to Low Temperature
8. Non-Toxic
9. Flexible
10. Easy to Handle
Besides, UHMWPE pipe can absorb energy, absorb noise, It is UV Resistant and can be colored.
The UHMWPE Mine PIPE specification:
| Diameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |

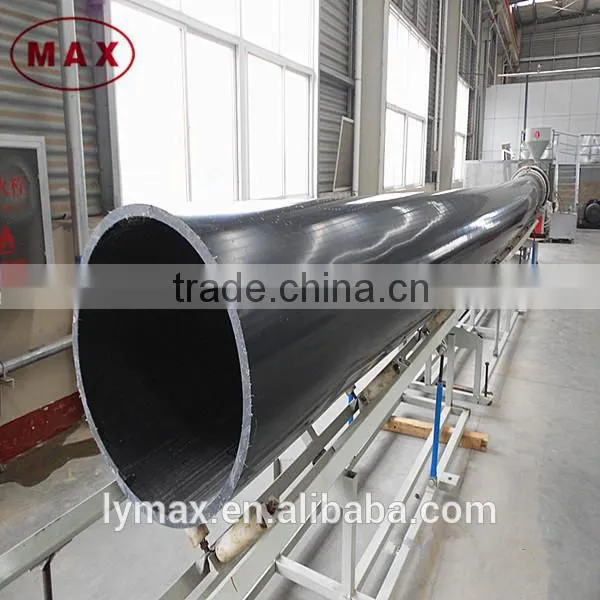

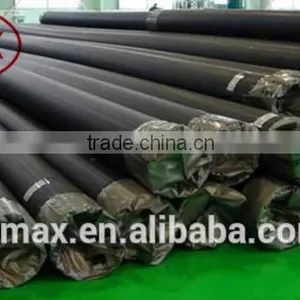

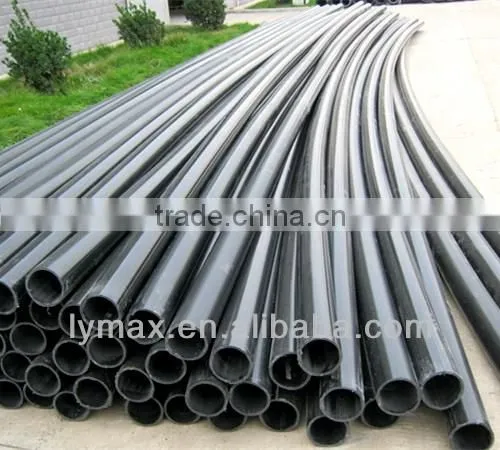

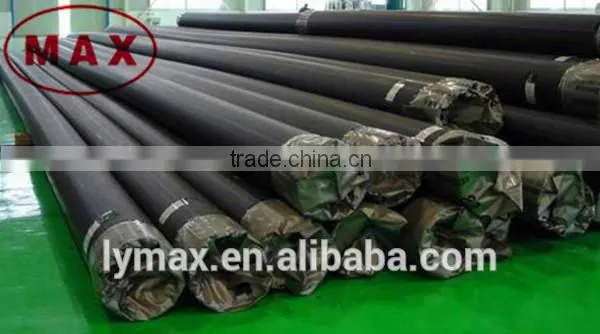

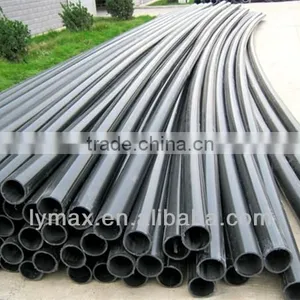

The UHMWPE Pipe Photo:
Main Products of Luoyang Max
Our customers from different countries
Dynamic team of Luoyang Max Corportion
To provide the best products and service for our customers is what we have been pursuing and doing,quality is our baseline,reputation is what we cherish and we guarantee it! Call us now!
Joe:+86 18838855096 SKYPE: joe1989812
Luoyang Max Import & Export Trading CO.,Ltd welcomes your inquiry and visit!
