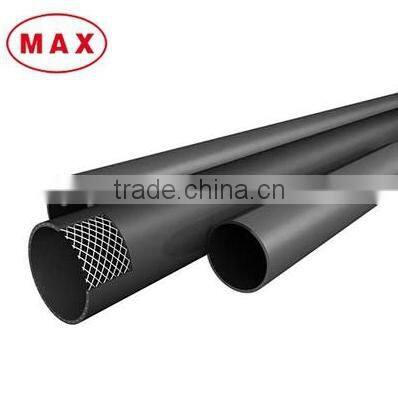

Steel Wire Reinforced Polyethylene/PE Pipe/Pipelines for Gas Supply

Steel Wire Reinforced Polyethylene/PE  pipe/Pipelines for Gas Supply

Steel wire reinforced composit (SRTP) pe pipe takes steel-wire and high-density polyethylene as material and it is mainly suitable for water supply buried in long-distance, gas pipe systems, mineduct, drainage and cenment mortar blowing tube.

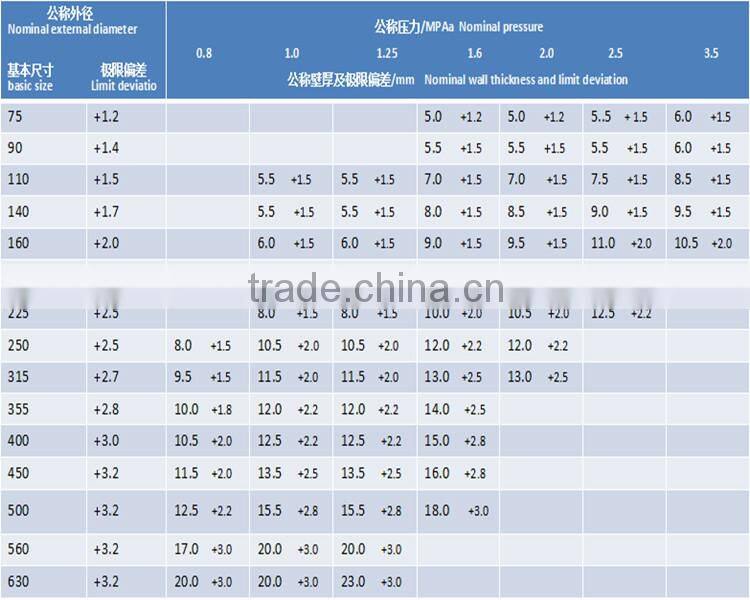

Specification

Model Number: DN50MM-DN800MM
Material: pe, steel wire and hot melt adhesive

Nominal Pressure: 0.8/1.0/1.25/1.6/2.0/2.5/3.5/4.0/5.0/6.3/7.0(Mpa)
Characteristics: double-faced anticorrosion
Structure: excellent and no easy to be burst
Service life: over 50 years
Mechanical properties: big strength and impact resistance
Applications: used for underground wastewater, electrical and optical cable protection, eeawater and rainwater transmission, and so on.

Steel Wire Framework Reinforced PE Pipe

Technical Requirements

The color is generally black. Also can be decided according to customer negotiation.
The inner and outer surface of the tube should be glossy and smooth. Tiny pits and bumps are allowable. Air bubble, breach, decomposition color line and obvious wound are not allowable. The both ends of the tube should be cut flat.

Product characteristic

1.It has higher strength, stiffness, impact resistance than plastic pipe.

2.Corrosion resistance on both surfaces, it has same corrosion resistance with plastic pipe.

3.High work temperature, low thermal conductivity, heat insulation for outer wall is not required when it is used in winter, and no moisture condensation when it is used in summer.

4.Smooth and neat inner wall, no scaling, head loss is 30% lower than steel pipe.

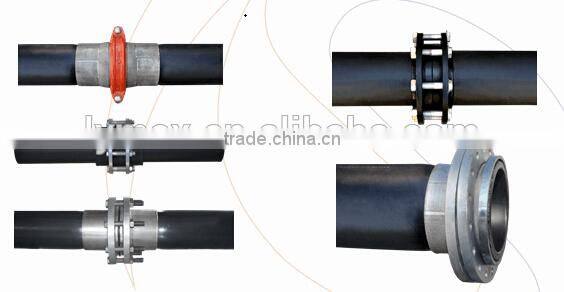

5.Pipe connection adopts electric melting connection which is the mature technology, The electric melting joint has strong axial tension resistance. The pipe fittings have many specifications.

6.Light weight, easy transportation and construction. Overall reliability for pipes is high.

7.Low cost, health and non-toxic, it is the best substitute for galvanized pipe.

Main Applicayion

1.Chemical industry

2.Oil field, gas field

3.Mining

4.Textile, dyeing, paper-making industry

5.Municipal engineering

6.Nonferrous metal

7.Agriculture

8.Sea water transportation

9.Thermal engineering

10.Buried drainage pipe, cable dredge pipe
