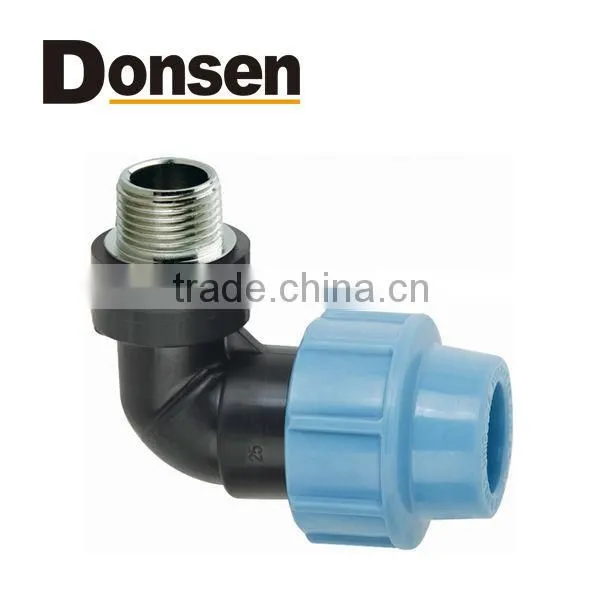

90 Degree Elbow Male With Brass Threaded Insert

Name: 90 Degree Elbow Male With Brass Threaded Insert
Brand: Donsen
SKU: 106757227
Availability: InStock

90 Degree Elbow Male With Brass Threaded Insert thumbnail-1

90 Degree Elbow Male With Brass Threaded Insert photo-1

US$ 0.1 - 1 MOQ: 1 Carton

Key Specifications

Get Latest Price

Material:

Other, plastic+copper

Technics:

Other, injection

Type:

Elbow

Contact Supplier Request Quote Chat Now

Zhejiang Donsen Environmental Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/ shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, plastic+copper

Technics Other, injection

Type Elbow

Place of Origin Zhejiang, China

Model Number COD.2020

Brand Name Donsen

Connection Male

Shape Equal

Head Code Other, ound

Specifications

1.100%imported PP material
2.Professional factory
3.OEM order available
4.1.0-1.6Mpa &20-110mm
5.Easy & quick installation

DONSEN PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.

Technical data

Materials

Part	Material
Body(A)	Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
Blocking bush(D)	Polypropylene
Nut(B)	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
Clinching ring(C)	Polyacetal resin(POM)with high mechanical resistance And hardness
O Ring gasket(E)	Special elastomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring	AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1''to 4''

Working Pressures

DONSEN PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
