Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Fabric Cutting Machine > Platform Needle Detector NC-TB

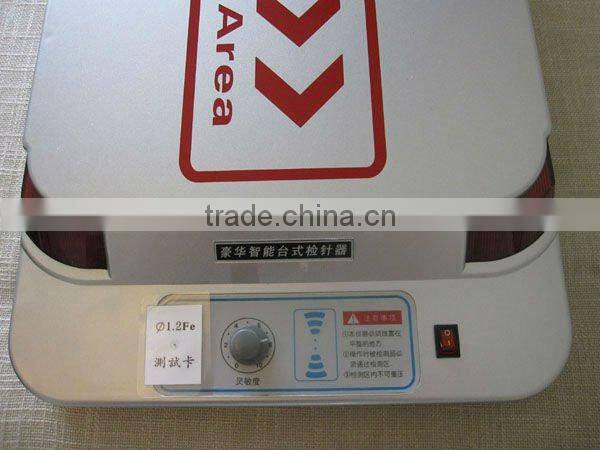

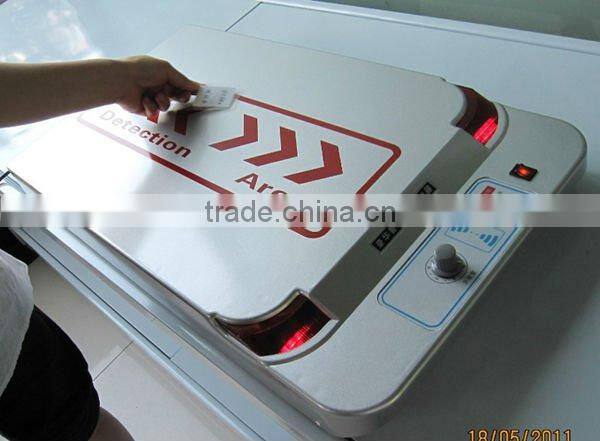

Platform Needle Detector NC-TB

Name: Platform Needle Detector NC-TB
Brand: CrossQ
SKU: 106756963
Availability: InStock

Shanghai CrossQ Automation Equipment Co., Ltd.

Platform Needle Detector NC-TB thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

CrossQ

Model Number:

Platform Type Needle Detector NC-TB

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name CrossQ

Model Number Platform Type Needle Detector NC-TB

Machine Type Other, Needle Detector

Product Other, detecting needles in small knitting products

Material Capabilities Nonwoven

Certification CE

Platform Type Needle Detector NC-TB

When detecting, with Red light & Alarming.

FEATURES

1. Newest streamlined appearance, with transparent cover without toxic, ABS material, Light and convenient to use.

2. With High & Low sensitivity setting and timely signal induction.

3. High quality magnetic sensor, durable using, and with high sensitivity & stability.
4. Designed for universal AC power supply, switch power supply

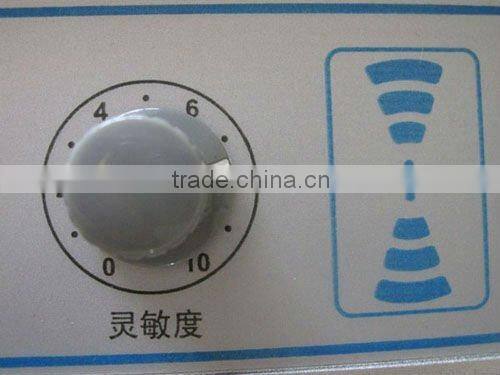

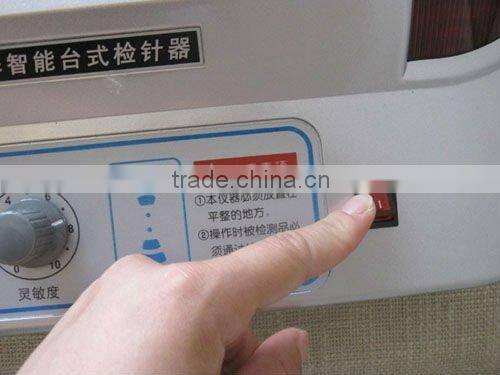

Sensitivity Adjustment Power Button

PURPOSE

Detecting broken needles and magnetic metal impurities in sewing products, such as: small

garments, knitting products, sweaters, stockings, zipper, buttons, shoes, hats, toys, crafts etc.

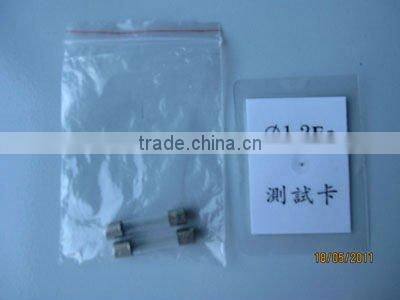

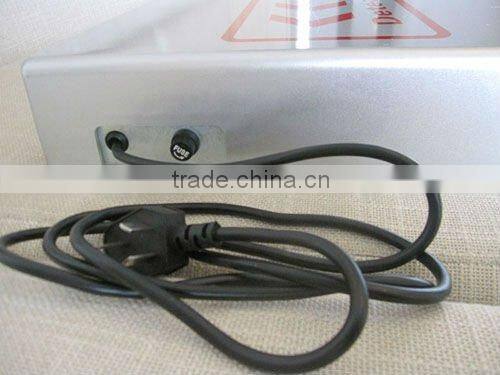

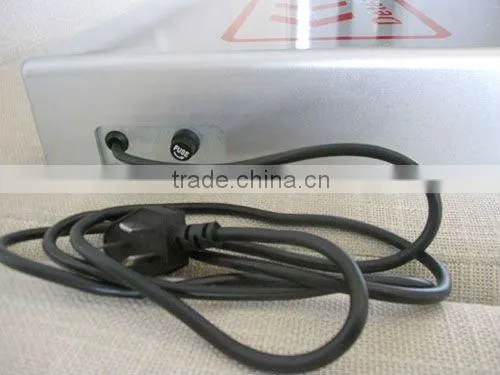

Power Line 2pcs Fuses & 1ps metal test sample

SPECIFICATIONS

1. Type NC-TB
2. Detection Method Magnetic induction
3.Detection sensitivity Max.80mm height by steel needle (¢0.7*L25mm)
4. Detection adjustment Hi & Lo
5. Detection width 150mm
6. Alarm method Buzzer

7. Power source AC220±10%, 50HZ
8. Rated output Appr10W
9. Weight 11kg

10.Dimension: 700mm(L)*400mm(W)*80mm(H)

Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
