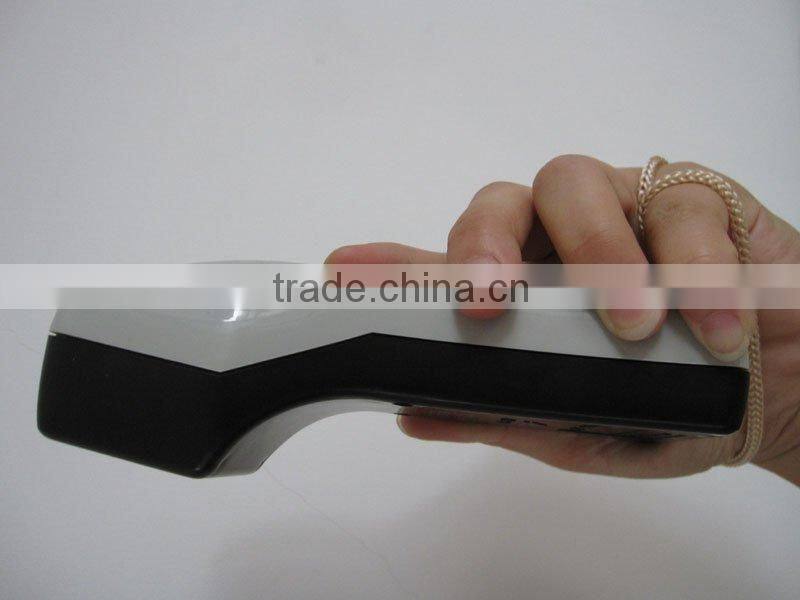

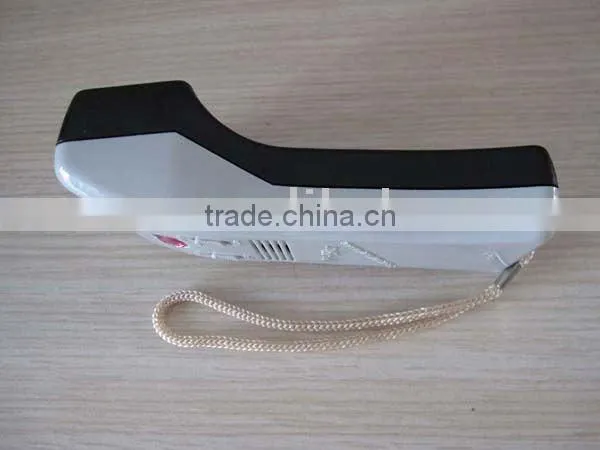

Handheld Needle Detector NC-PB

Portable Type Needle Detector NC-PB

FEATURES

1. Founder-based design, soft light blue tone, light and easy utility.

2. Real-time signal induction.

3. Use one 9V battery, low power consumption, easy to change, and with good stability.

PURPOSE

1.Detecting broken needles and magnetic metal impurities in sewing products, such as: small

garments, knitting products, sweaters, stockings, zippers, buttons, shoes, hats, toys, crafts, plaited products etc.

2. Used for small range detection to locate exact position of magnetic metals.

3. Work together with auto-conveying needle detector, used for detect and locate exact position of magnetic metals in warned products.

SPECIFICATIONS

1. Type NC-PB
2.Detection Method Magnetic induction
3.Detection sensitivity 0-60mm height by steel needle (¢0.7*L25mm)
4.Detection adjustment 0 step (no adjustment)
5.Alarm method Buzzer

6. Power source 1pc 9V battery
7.Weight 280g

8. Dimension 215mm(L)*65mm(W)*35mm(H)

Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
