Wide Needle Detector NC-W1000

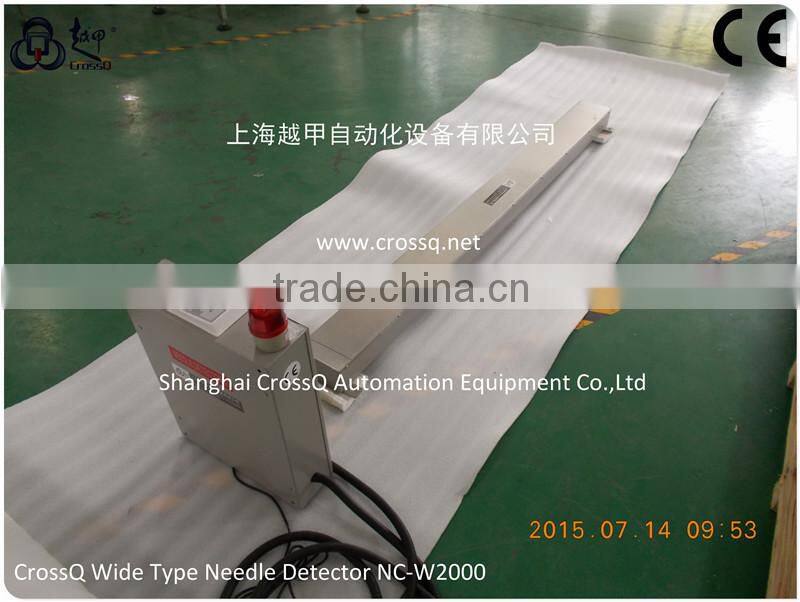

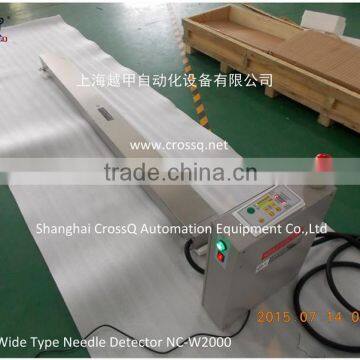

Wide Type Needle Detector NC-W2000

FEATURES

1. High quality magnetic structure, stainless steel shell, good appearance with high sensitivity, and

     be durable.

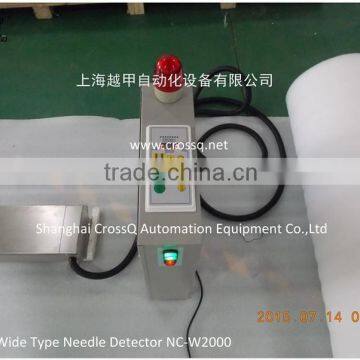

2. Separate structure of detection and control part, with high anti-disturbance performance, and

     install easily.

3. Touch-sensitive buttons control 8 steps display. Hi stable during detection.

4. 10 LED signal display, with warning light device.

5. New SMD circuit technology to control external appliances.
6. Designed for universal AC power supply, switch power supply

PURPOSE

1. Detecting broken needles and magnetic metal impurities in sewing products with wide width,

     such as: down products, bedding products, fabrics (woven), carpets etc.
2. Detecting magnetic metal impurities in foods, pharmaceutical products.

3. Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
4. Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.

5. Can install on fabric inspection machine, or use support to fix, install on fabrics production lines to finish detection.

SPECIFICATIONS

1.Type NC-W1000
2. Detection Method Magnetic induction
3.Detection sensitivity Max.80mm height by steel needle (¢0.6*L33mm)

    Max.110mm height by steel needle (¢0.7*L25mm)
4. Detection adjustment 1-8steps
5. Detection width 100mm

6.Detection length 1020mm
7.Alarm method Buzzer,LED Lamp, warning device
8.Power source AC220±10%, 50-60HZ
9. Rated output Appr25W
10. Weight Detection Part 15kg; Control Box 2.65kg

11. Dimension

       Detection Part 1200mm(L)*100mm(W)*45mm(H)

       Control Box 280mm(L)*265mm(W)*105mm(H)

Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
