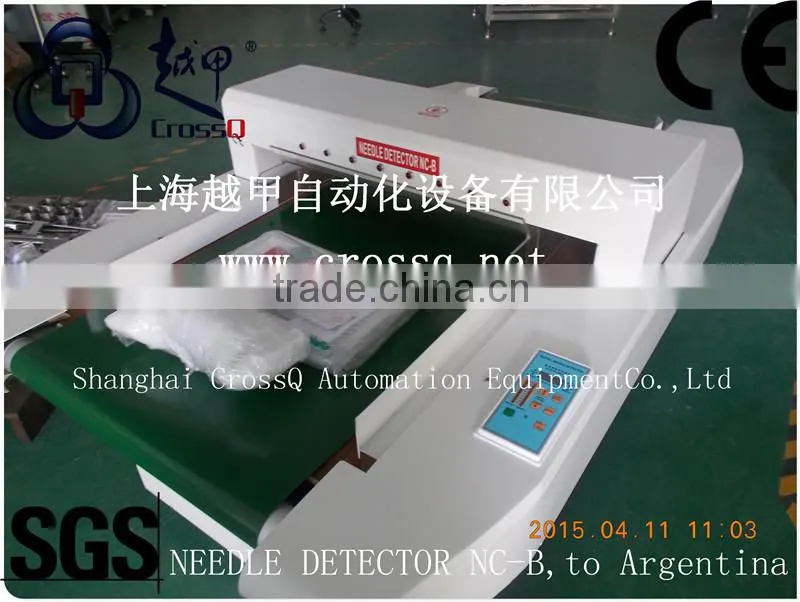

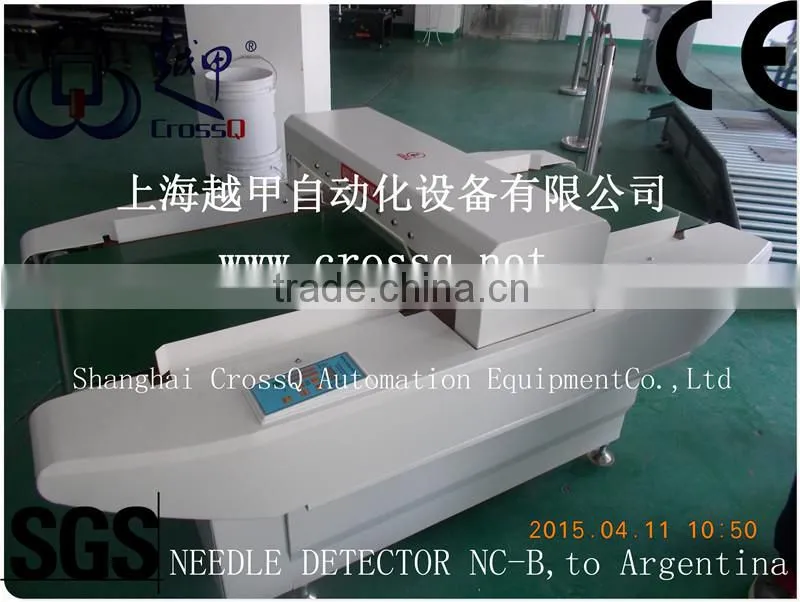

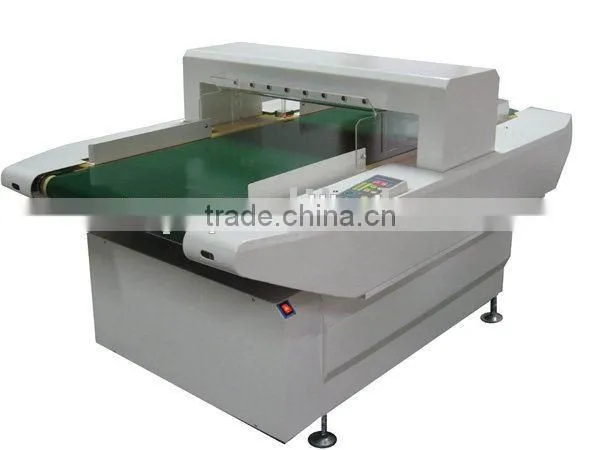

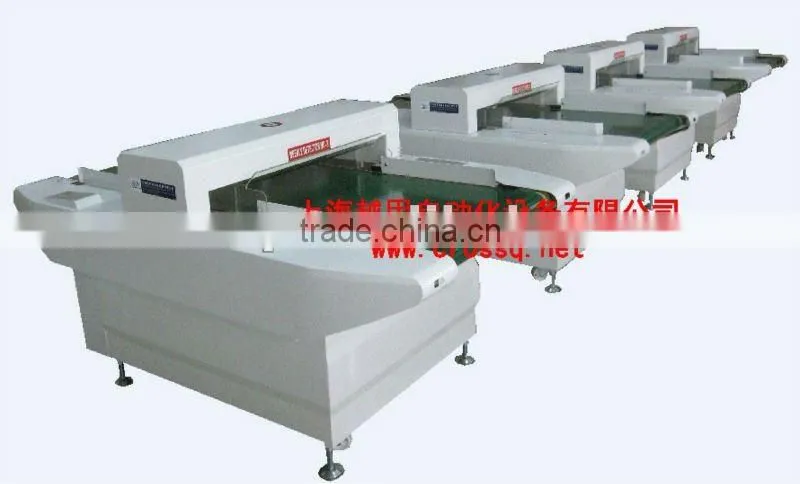

Auto Conveying Needle Detector
Model: NC-B
FEATURE
1. Dual-Strong & independent probe, excellent anti-disturbance performance.
2. Based on micro-LCD bar displayed control panel.
3. Hi accuracy detection locating technology, LED indication.
4. Level setup indication and real-time sensitivity display.
5. With products counting record function.
6. Optional conveying mode after alarm.
7. Optional automatic restart.
8. With newest data printing system.(option)
9. Reliability mechanical frame design, Hi stable during detection.
10. Designed for universal AC power supply, switch power supply
PURPOSE
1. Detecting broken needles and magnetic metal impurities in sewing products, such as: garments,
fabric, knit underwear, shoes, hats, toys, crafts, down products, bedding products, carpets etc.
2. Detecting magnetic metal impurities in foods, pharmaceutical products.
3. Detecting magnetic metal impurities in chemical raw materials, rubber, paper etc.
4. Detecting magnetic metal impurities in pure Copper, Aluminum, Stainless Steel.
SPECIFICATIONS
1. Type NC-B(100)
2. Detection Method Magnetic induction
3. Detection adjustment Max.100 steps/channel
4. Detection sensitivity Fe¢0.8mm
5.Detection width 600mm
6. Alarm method Buzzer,Lamp
7. Belt speed 32m/min(50HZ),40m/min(60HZ)
8. Power source AC200-240V 50-60HZ
9. Rated output Appr140W
10. Weight Appr220Kg
11.Dimension 1650mm(L)*1050mm(W)*900mm(H)
SERIES
Detection Height |
Detection Sensitivity |
Remark |
100mm |
¢0.8mm steel |
standard |
120mm |
¢1.0mm steel |
option |
150mm |
¢1.2mm steel |
option |
200mm |
¢1.5mm steel |
option |
250mm |
¢2.0mm steel |
option |
Above specification is under standard test condition. As different working condition, different environment, different products shape will effect above standard data.
