Specifications
small detector modulesensitive pir sensor
CdS resistor available
direct supply,fast delivery
good price
small detector module from leading manufacturer
SB0071 is a pyroelectric sensor module which developed for human body detection. A PIR detector combined with a fresnel lens are mounted on a compact size PCB together with an analog IC, SB0061, and limited components to form the pir module.
Features and Electrical Data
PIR sensor module for human detection
Compact size (24 x 32 mm)
Supply current: DC5V-20V(can design DC3V-24V)
Current drain : < 50uA
Voltage Output: High/Low level signal : 3.3V
(Other choice: Open-Collector Output)
TTL output
Delay time: 5s-18 minute(as customer requirement)
Operation Temperature: -15 -70 degree
Infrared sensor: dual element, low noise, high sensitivity
Light sensor: CdS photocell (can be add as customer requirement)
Applications--sensor module for long distance
1.sensor switch
2.ir camera control system
3.motion detection lamp, lighting system
4. alarm detector system
5.other products that need human motion detection
small detector module Images

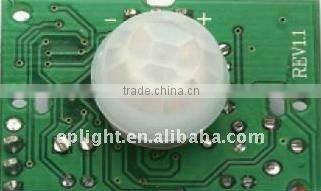

1. small pir sensor switch module
2. mini infrared pir module for lamp/switch
