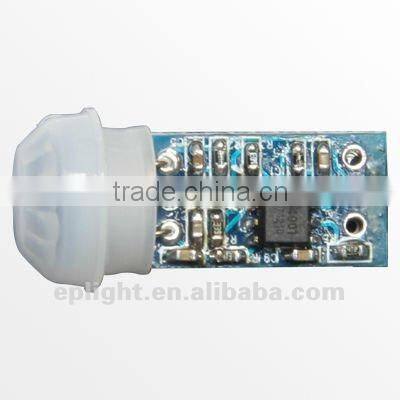

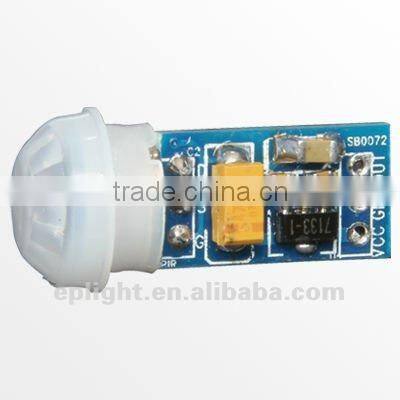

Mini Size 10mm by 18 mm pir module (SB 0072 )

Specifications

pir motion sensor module
1.small pcb,easy integrated
2.high sensitivity
3.largest pir manufacturer in China
4.good price

  Mini Size 10mm by 18 mm  pir module  (SB 0072 )



Item No.: SB0072





Features and Electrical Data



Compact size: 10x 18 mm

Supply current: DC5V-20V(can design DC3V-24V)

Current drain :< 50uA

Voltage Output: High/Low level signal, 3.3V TTL output



 Delay time: 5s-18 minute(as customer requirement)

Operation Temperature: -20°C-+60°C

Infrared sensor: dual element, low noise, high sensitivity





Typical Applications



1. led bulb, led tube lamp, lighting

2. motion sensor switch

3. alarm system

4. ir camera

5.human detect toys

6. solar panel

7, household items like air conditioner

8.other products that need to detect human automatically, save more power

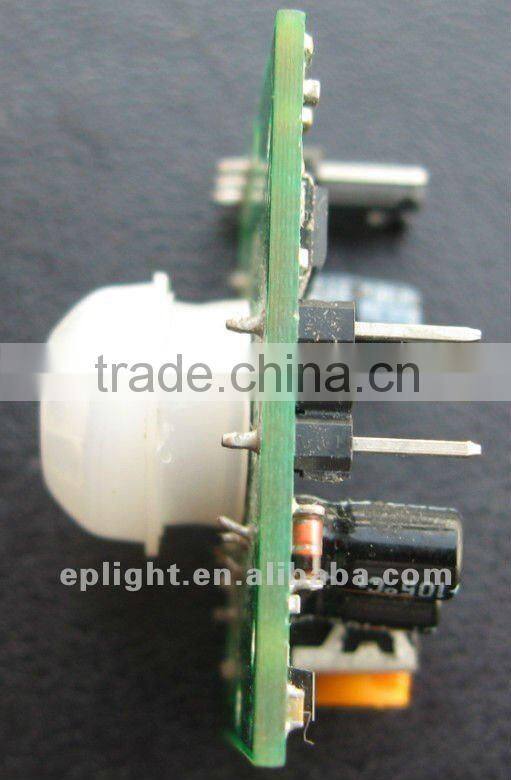

Pictures for Infrared sensor module



1.motion sensor module for lighting system





 2.infrared sensor module for human presence detect system





other pir modules available



SB0061





SB0071





SB0081, TTL / open-collector output available



    We are the largest pir sensor manufacturer in China with 14 years, No.3 for the sale in the world market.





Senba PIR and LDR sensor industrial park









Senba professional staff



Contact me with your requirements for application, detecting distance, angle, etc.
