Specifications
Smart Motion ModuleType: SB00412A-1
Compact size:10*18mm
Supply current: DC2.7V-12V
Current drain: <20uA

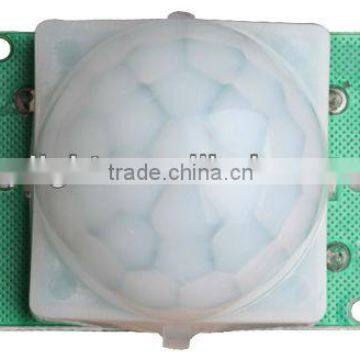

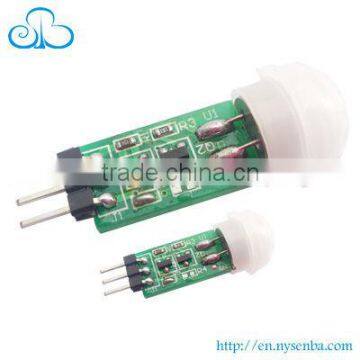

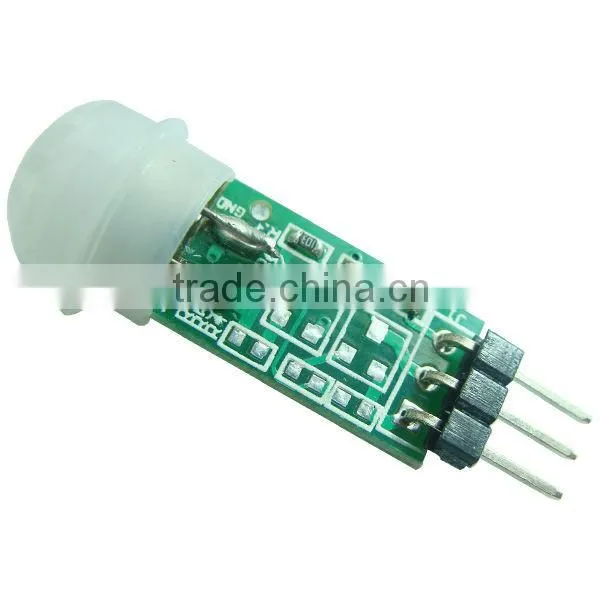

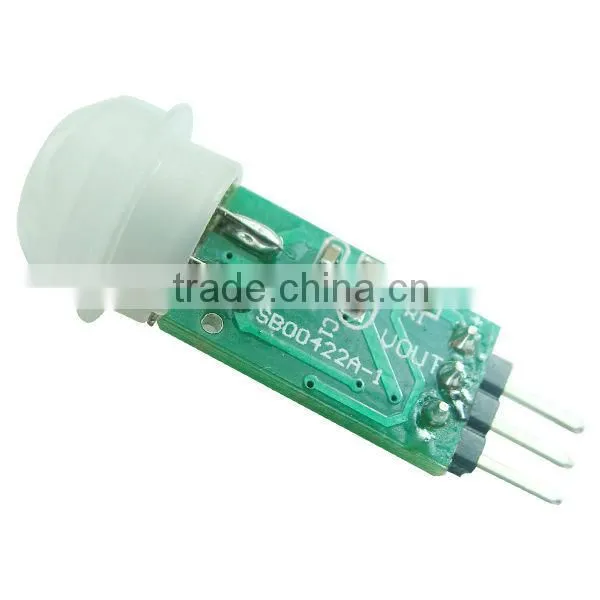

Hotsale Mini Motion Module for lighting control, security system
Item No.: SB00412A-1
General
SB00412A-1 is the latest digital sensor module that based on AM422 digital sensor. It only contain a fresnel lens,PCB,and a few resistance.
Features and Electrical Specification
Compact size: 18*10 mm
Supply current: DC2.7V-12V
Current drain: ≤20uA
Voltage Output: High level signal: 3V, Standby output is 0V
TTL output: TTL output can be directly connected to micro-controller or logic device
Open-Collector Output
High sensitivity
Delay time: 2S-80min(changeable)
Operation Temperature: -20-60°C
Infrared sensor: dual element, low noise, high sensitivity
Detecting length: 3-5m
Detecting Angle:110°
Lens information
Lens diameter: 13.5mm (default), detecting angle≤110°, detecting range<5M
