Hot! ! Human module (10 by 18mm ) , best price , super quality

Specifications

infrared sensor module
*very good sensitivity
*small size,wide angel
*excellent service
*good quality lowest price

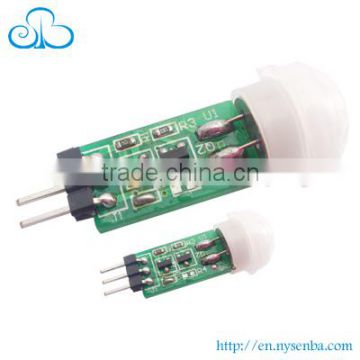

Hot! ! Human module (10 by 18mm )  , best price , super quality





Item No.: SB00422A-1  I.Features and Electrical Data



1.Part Name:PIR module for human motion

2.Compact size (10 x 18  mm)
3.Supply current: DC5V-20V(can design DC3V-24V)
4.Current drain :< 50uA
5.Voltage Output: High/Low level signal available, 3.3V output
(Other choice: Open-Collector Output)TTL output

6.Delay time: 2s-70 minute(as customer requirement)
7.Operation Temperature: -15oC -70 oC

8.Infrared sensor: dual element, low noise, high sensitivity



II.Typical Applications for motion detector



1. motion detection lamp

2. motion sensing switch

3. alarm system

4. camera

5. other products that need human motion detection

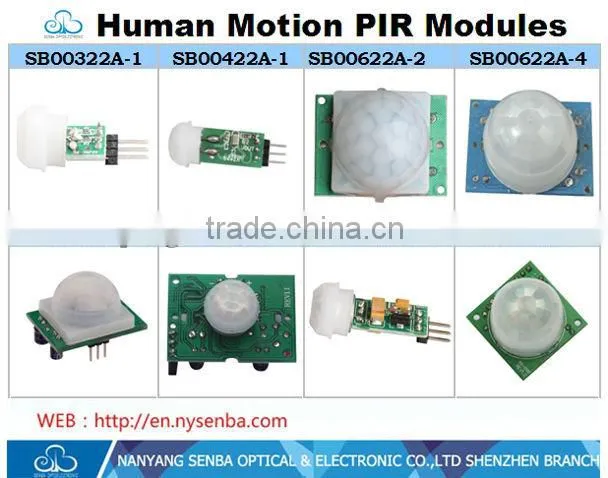

III.Pictures for motion detector
