Specifications
Light Sensitive Resistor1. High sensitivity,Fast response
2. Good spectrum characteristic
3. Factory Price
4. Sample Free

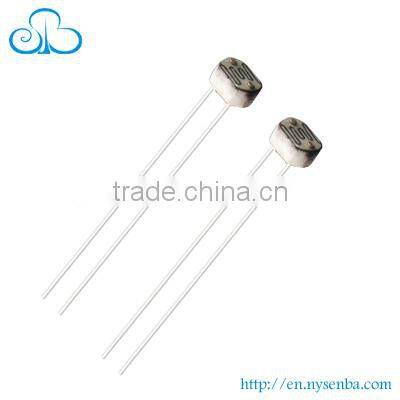

4MM GL4537-1 Visible Light Sensitive Resistor /LDR/CdS Photoresistor
4mm LDR photo sensor , We are the Original Manufacturer (GL Series)!
General Theory:
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic........
Features for Light Sensitive Resistor
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications for Light Sensitive Resistor
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Specification for Light Sensitive Resistor
Specification |
Type |
Max. Voltage (VDC) |
Max. power (mw) |
Environmental temp. |
Spectrum peak value (nm) |
φ4 series |
GL4516 |
150 |
50 |
-30~+70°C |
540 |
GL4526 |
150 |
50 |
-30~+70°C |
540 |
|
GL4537-1 |
150 |
50 |
-30~+70°C |
540 |
|
GL4537-2 |
150 |
50 |
-30~+70°C |
540 |
|
GL4548-1 |
150 |
50 |
-30~+70°C |
540 |
Specification |
Light resistance (10Lux) (KΩ) |
Dark resistance (MΩ) |
r100/10 |
Response time (ms) |
Illuminance resistance Fig. No. |
|
Increase |
Decrease |
|||||
|
φ4 series |
5-10 |
0.6 |
0.5 |
30 |
30 |
3 |
10-20 |
1 |
0.6 |
30 |
30 |
3 |
|
20-30 |
2 |
0.6 |
20 |
30 |
4 |
|
30-50 |
3 |
0.7 |
20 |
30 |
4 |
|
50-100 |
5 |
0.8 |
20 |
30 |
6 |
|
Senba photo cell Sales summary (Unit:million sticks)
