Specifications
Cds Photoresistor1. High sensitivity,Fast response
2. Good spectrum characteristic
3. Factory Price
4. Sample Free

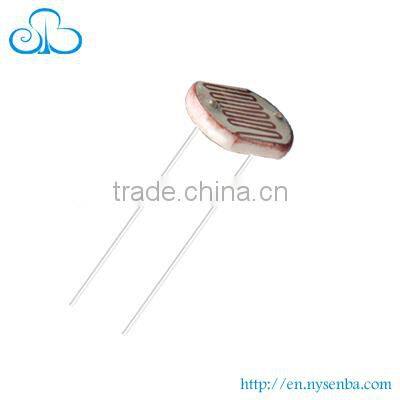

12MM Photoresistor (GL12537-1) Cds Sensor Photoresistor
12mm Ceramic Mini LDR photo sensor , best price from largest manufacurer
General Theory:
Cds Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic........
Features for Cds Photoresistor
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications for Cds Photoresistor
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Specifications for Cds Photoresistor
Specification |
Type |
Max. Voltage (VDC) |
Max. power (mw) |
Environmental temp. |
Spectrum peak value (nm) |
φ12 series |
GL12516 |
250 |
200 |
-30~+70°C |
560 |
GL12528 |
250 |
200 |
-30~+70°C |
560 |
|
GL12537-1 |
250 |
200 |
-30~+70°C |
560 |
|
GL12537-2 |
250 |
200 |
-30~+70°C |
560 |
|
GL12539 |
250 |
200 |
-30~+70°C |
560 |
Specification |
Light resistance (10Lux) (KΩ) |
Dark resistance (MΩ) |
r100/10 |
Response time (ms) |
Illuminance resistance Fig. No. |
|
Increase |
Decrease |
|||||
|
φ7 series |
5-10 |
1 |
0.6 |
30 |
30 |
3 |
10-20 |
2 |
0.6 |
30 |
30 |
3 |
|
20-30 |
3 |
0.7 |
30 |
30 |
4 |
|
30-50 |
5 |
0.8 |
30 |
30 |
4 |
|
50-100 |
8 |
0.8 |
30 |
30 |
6 |
|
Senba photo cell Sales summary (Unit:million sticks)
