7mm Temperature Stable Photoconductive Cell GL7516

Specifications

GL7516
Max voltage: 150VDC
Max power: 100mw
Light Resistance: 5-10Kohms
Dark Resistance: 0.5Mohms

Light dependent resistor    GL7516    Senba



Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic.Photoresistor is widely used in many industries, such as toys,lamps,camera,etc.Systems  including the model of  GL7516,GL7528,GL7537-1,GL7537-2,GL7539.



Performances and Features

Coated with epoxy

Good Reliability

High Sensitivity

Small Volume

Fast Response

Good Spectrum Characteristic



Applications

Switch

Light control

Electronic toy

Light control lamp

Photoelectric control

Industrial control

Camera automatic photometry

Annunciator



Specifications

Specification	Type	Max.  Voltage	Max.  power	Environmental  temp.	Spectrum  peak value (nm)
φ7 series	GL7516	150	100	-30~+70°C	540
	GL7528	150	100	-30~+70°C	540
	GL7537-1	150	150	-30~+70°C	560
	GL7537-2	150	150	-30~+70°C	560
	GL7539	150	150	-30~+70°C	560



Specification	Light  resistance  (10Lux)  (KΩ)	Dark  resistance  (MΩ)	r100/10	Response time  (ms)		Illuminance  resistance  Fig. No.
				Increase	Decrease
φ7 series	5-10	0.5	0.6	30	30	3
	10-20	1	0.6	30	30	3
	20-30	2	0.7	20	30	4
	30-50	4	0.8	20	30	4
	50-100	8	0.8	20	30	6

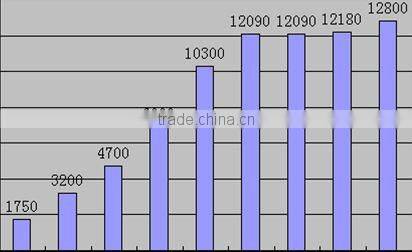

Senba photoresistor Sales summary (Unit:million sticks)



   2000      2001      2002      2003       2004     2005     2006       2007      2008
