Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Cheap Price 7mm Photo Cell SB-GL7516

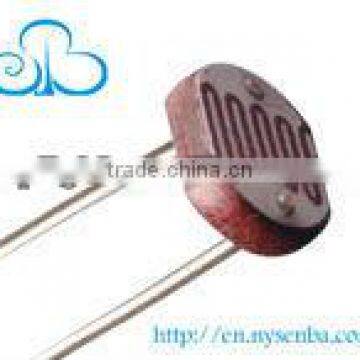

Cheap Price 7mm Photo Cell SB-GL7516

Name: Cheap Price 7mm Photo Cell SB-GL7516
Brand: Senba
SKU: 106753135
Availability: InStock

Cheap Price 7mm Photo Cell SB-GL7516 thumbnail-1

Cheap Price 7mm Photo Cell SB-GL7516 photo-1

US$ 0.106 - 0.203 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Senba

Model Number:

GL7516

Contact Supplier Request Quote Chat Now

Nanyang Senba Optical Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Senba

Model Number GL7516

Type Other, Photoresistor, GL7516

Technology Metal Oxide

Package Type Throught Hole

Resistance 5-10

Resistance Tolerance 0.1

Rated Power 150

Temperature Coefficient see following

Operating Temperature -30~70

Specifications

GL7516
1.Good reliability
2.Fast response
3.Coated with epoxy
4.Good spectrum characteristic

Light dependent resistor GL7516 Senba

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic.Photoresistor is widely used in many industries, such as toys,lamps,camera,etc.

Model: GL7516,GL7528,GL7537-1,GL7537-2,GL7539.

Performances and Features

Coated with epoxy

Good Reliability

High Sensitivity

Small Volume

Fast Response

Good Spectrum Characteristic

Applications

Switch

Light control

Electronic toy

Light control lamp

Photoelectric control

Industrial control

Camera automatic photometry

Annunciator

Specifications

Specification	Type	Max. Voltage (VDC)	Max. power (mw)	Environmental temp.	Spectrum peak value (nm)
φ7 series	GL7516	150	100	-30~+70°C	540
	GL7528	150	100	-30~+70°C	540
	GL7537-1	150	150	-30~+70°C	560
	GL7537-2	150	150	-30~+70°C	560
	GL7539	150	150	-30~+70°C	560

Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Response time (ms)		Illuminance resistance Fig. No.
Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Increase	Decrease	Illuminance resistance Fig. No.
φ7 series	5-10	0.5	0.6	30	30	3
	10-20	1	0.6	30	30	3
	20-30	2	0.7	20	30	4
	30-50	4	0.8	20	30	4
	50-100	8	0.8	20	30	6
