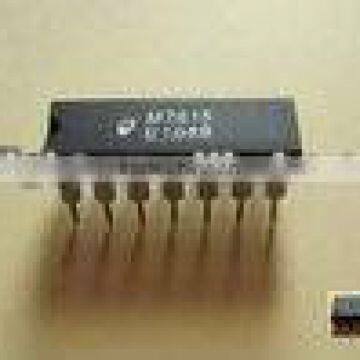

16 Pins SMD or DIP PIR CONTROLLER M7616 for Human Motion Detector
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
M7616
Type:
Other, controller IC
Brand Name:
senba
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Infrared Control IC CS9803 DIPNegotiableMOQ: 1000 Pieces -
IR IC for PIR Detector ModuleUS$ 0.13 - 0.37MOQ: 1000 Pieces
-
PIR Detector Module ICUS$ 0.13 - 0.37MOQ: 1000 Pieces
-
Pyroelectric Infrared Sensor/Detector ICUS$ 0.13 - 0.37MOQ: 1000 Pieces
-
PIR Module Integrated CircuitUS$ 0.13 - 0.37MOQ: 1000 Pieces
Model Number
M7616
Type
Other, controller IC
Brand Name
senba
Place of Origin
Guangdong, China
Specifications
DC PIR CONTROLLERHigh noise immunity.
aa Low stand-by current < 50aaA 3.0V
aa RELAY Driver only.
aa Adjustable play on dur
DC PIR CONTROLLER/PIR CONTROLLER M7616
.
GENERAL DESCRIPTION
The M7616 is a low power PIR ( passive infra-red ) controller LSI designed for battery powered can be used in many
application. The chip contains operation amplifiers, comparators, timer ,a voltage regulator, 2 oscillator and control circuits.
An CDS device is installed externally to cut off the operation of M7616 during the day time.
FEATURES
High noise immunity.
Low stand-by current < 50μA @3.0V
RELAY Driver only.
Adjustable play on duration and latch duration.
CDS input conditionally.
16 pin DIP or SOP package.
APPLICATIONS
PIR light controller, Motion Detector, Alarm system, Auto-door bell.

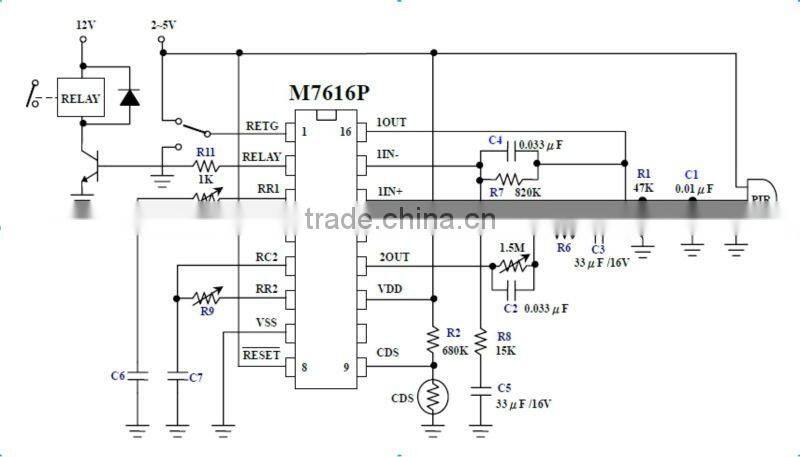

APPLICATION DIAGRAM
