DC PIR CONTROLLER IC for Infrared Sensor Application

GENERAL DESCRIPTION

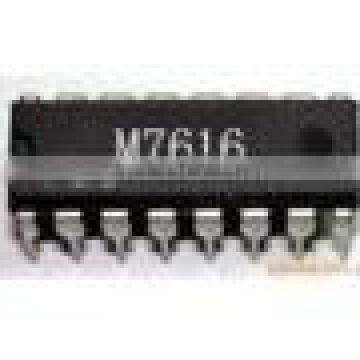

The M7616 is a low power PIR ( passive infra-red ) controller LSI designed for battery powered can be used in many
application. The chip contains operation amplifiers, comparators, timer ,a voltage regulator, 2 oscillator and control circuits.
An CDS device is installed externally to cut off the operation of M7616 during the day time.

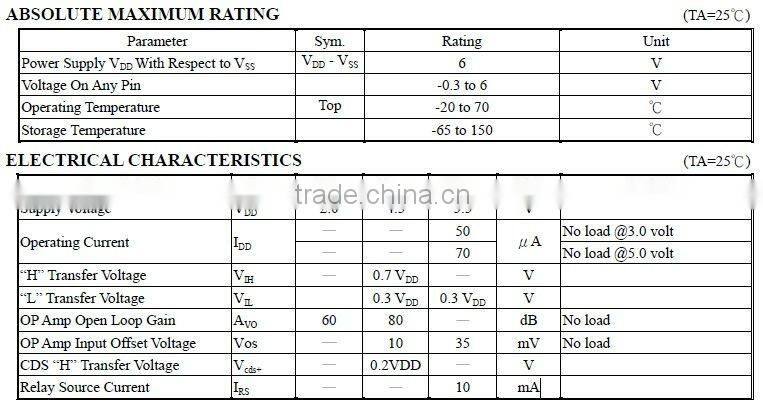

FEATURES
 High noise immunity.
 Low stand-by current < 50μA 3.0V
 RELAY Driver only.
 Adjustable play on duration and latch duration.
 CDS input conditionally.

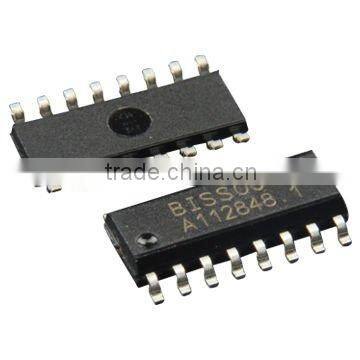

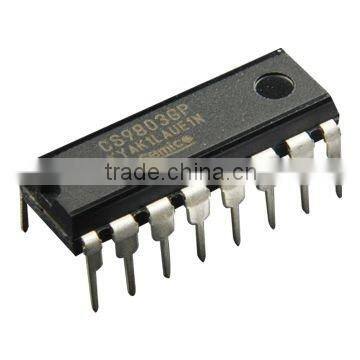

 16 pin DIP or SOP package

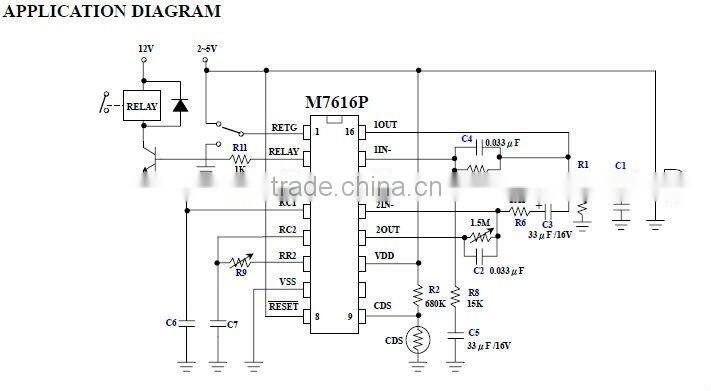

APPLICATIONS
PIR light controller, Motion Detector, Alarm system, Auto-door bell
