Home > Products > Infrared Control IC > good quality,cheap IC LP8072 for pir sensor control
good quality,cheap IC LP8072 for pir sensor control
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Model Number: | LP8072 | Type: | Drive IC | Brand Name: | Senba |
Place of Origin: | Guangdong, China |
Product Description
GENERAL DESCRIPTION
The LP8072 is a PIR ( passive infra-red ) controller , using analog mixing digital design technique and manufactures by CMOSProcess which can either drive TRIAC or RELAY depending on user’s choice. With special noise immunity technique.
FEATURES
• Drive either RELAY or TRIAC.
• Adjustable light on duration.
• CDS connected
• 3.1V output to drive pir sensor
• control time ajustable
• Auto change on / auto mode by bonding option.
• compatible with CS9803 and WT8072(from WELTREND)

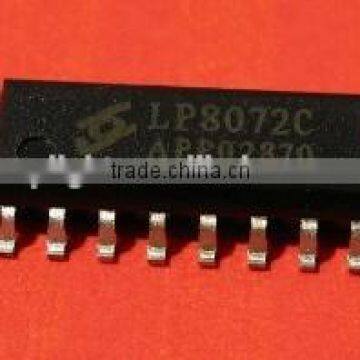

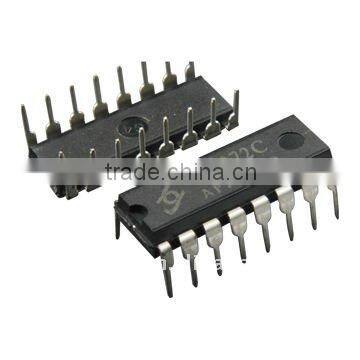

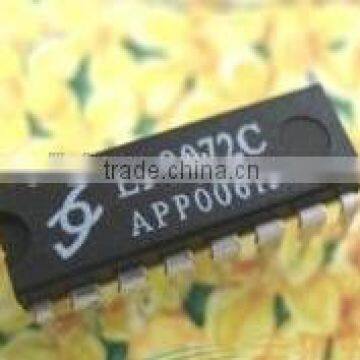

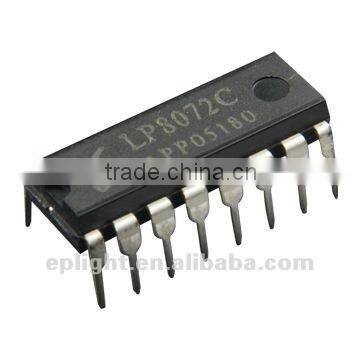

• dip16 encapsulation
APPLICATIONS
PIR light controller,
Motion Detector,
Alarm system,
Auto-door bell.
Skemetic drawings:

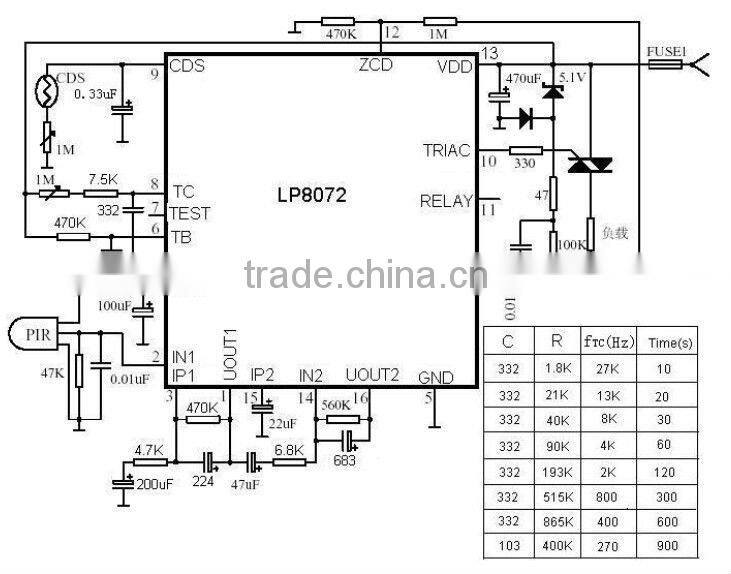

For Silicon-control

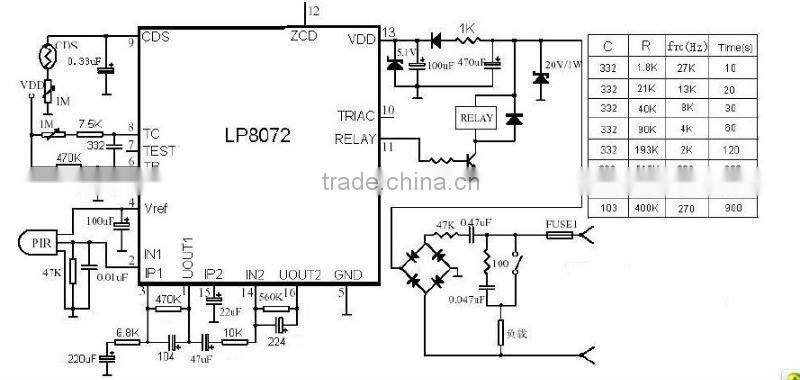

For relay control
.
